SELECT A DIAGRAM

01 - Blower & Convect Assy. (pf,pg,pk,pr)


02 - Body (pf,pg,pk,pr Models)


03 - Control Panel (pf,pg,pk,pr Models)


04 - Door (pf,pg,pk,pr Models)


05 - Gas Controls (pf,pg,pk,pr Models)


06 - Oven (pf,pg,pk,pr Models)


07 - Top Assembly (pf,pg,pk,pr Models)


08 - Wiring Information (pf,pg,pk,pr Models)

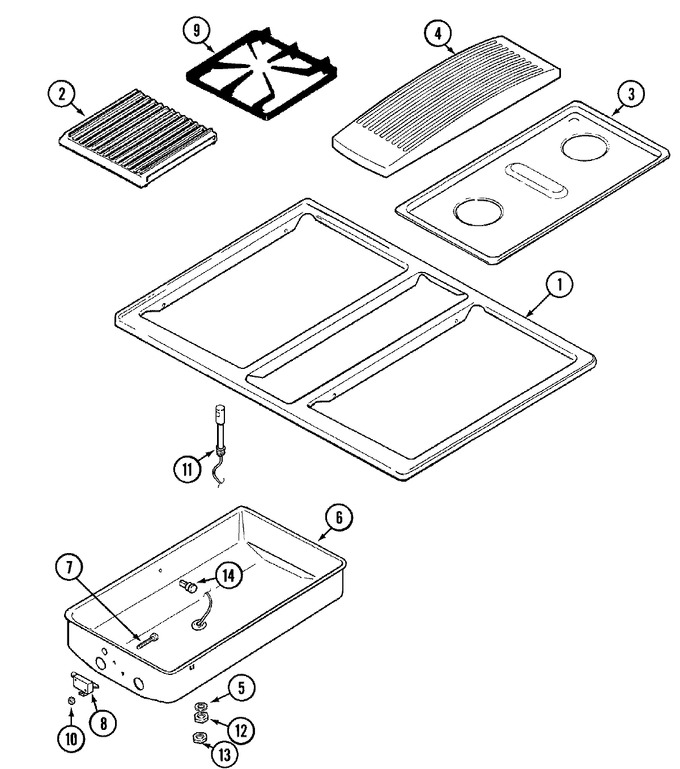

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	71002062		Top, Main (stnls)	10	Appelez-nous	-
2	71003267		Grate, Grill	13			$ 157.17
2	Y04100054		Grate, Grill	10	Appelez-nous	-
3	Y712274		Pan, Aeration (blk)	10	Appelez-nous	-
4	71002063		Grill, Air (blk)	10	Appelez-nous	-
5	704568		Lockwasher	10			$ 13.02
6	Y04100517		Pan, Grill	10	Appelez-nous	-
6	Y04100272		Pan, Grill Lh	10	Appelez-nous	-
7	DE81-04441A		Screw   (Replaces: 702380)	10			$ 329.62
8	DE81-04441A		Screw   (Replaces: 702380)	10			$ 329.62
8	7403P620-60		Switch, Micro   (Replaces: Y704533)	10			$ 141.22
8	715617		Washer (teflon)	10	Appelez-nous	-
9	WP71003089		Grate (matte Black)   (Replaces: 71003089)	12			$ 169.52
9	12001481		Grate, Burner (blk)   (Replaces: 71001757)	10			$ 222.40
10	Y704522		Nut	10	Appelez-nous	-
10	Y704534		Insulator, Switch	10	Appelez-nous	-
11	WP71002179		Igniter, Spark   (Replaces: 71002178)	10			$ 181.49
12	Y703856		Nut, Jam	10			$ 5.53
13	Y052721		Nut   (Replaces: Y704553)	10			$ 21.38
14	71001764		Pin, Locator	10			$ 8.68

    View Diagram in Separate Window       Print Part List
