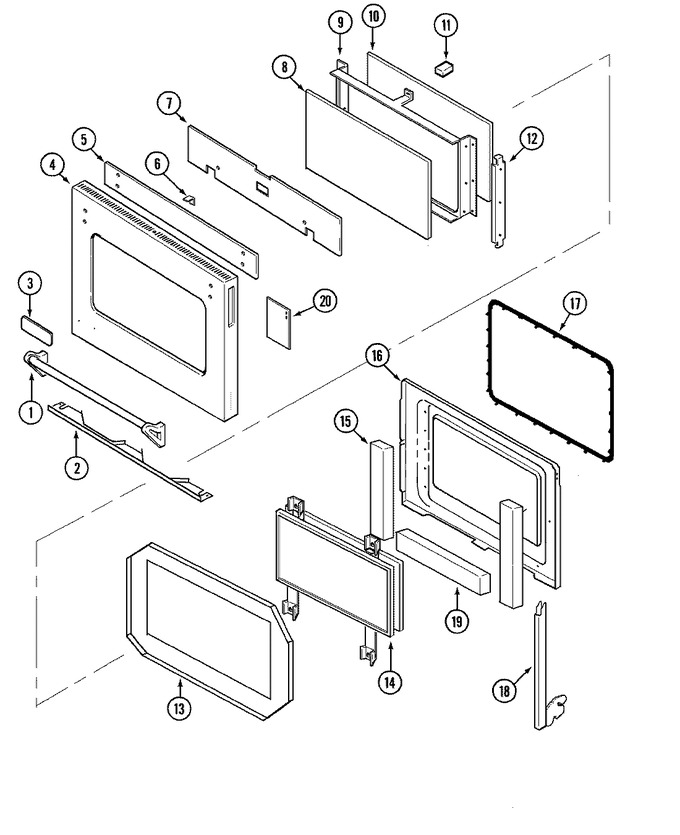

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	71001403		Washer, Alum	10	Appelez-nous	-
1	71002985		Handle, Oven Door	10	Appelez-nous	-
1	WP488234		Screw   (Replaces: 71002965)	10			$ 6.07
2	71002080		Trim, Door (lwr-blk)	10	Appelez-nous	-
3	71001894		Nameplate (j/a)	10	Appelez-nous	-
4	71002991		Panel, Door (gray)	10	Appelez-nous	-
4	WP355214		Screw   (Replaces: Y700725)	10		Immediately	$ 7.26
4	04100738		Insert, Door	10	Appelez-nous	-
4	W11233072		Screw (no.8ab)   (Replaces: 71001183)	10		Immediately	$ 12.62
5	71002799		Insulation, Door	10	Appelez-nous	-
6	71001831		Plate, Latch	10	Appelez-nous	-
7	71002963		Heatsink	10	Appelez-nous	-
7	71002994		Heatsink	11	Appelez-nous	-
8	71002800		Glass, Outer	10	Appelez-nous	-
9	71002798		Bracket, Glass	10	Appelez-nous	-
9	71002992		Support, Glass Bracket	11	Appelez-nous	-
9	71002993		Bracket, Glass	11	Appelez-nous	-
10	71002801		Glass, Inner	10	Appelez-nous	-
11	71002795		Spacer, Frame	10	Appelez-nous	-
12	71002796		Clamp, Glass	10	Appelez-nous	-
12	W11233072		Screw (no.8ab)   (Replaces: 71001183)	10		Immediately	$ 12.62
13	71002791		Retainer, Insulation	10	Appelez-nous	-
14	74009648		Glass Assy/frm Nla Use74009648   (Replaces: 71001871)	10			$ 158.75
15	71001839		Insulation, Door (side)	10	Appelez-nous	-
16	WPW10296816		Screw (10-32x.625 Sq.hd.)   (Replaces: 71001940)	10			$ 6.77
16	71002964		Liner, Door	10	Appelez-nous	-
17	WP71001841		Seal, Door   (Replaces: 71001841)	10		Immediately	$ 160.14
18	WP71003353		Hinge, Oven Door   (Replaces: 71002792)	10			$ 267.09
19	71001838		Insulation, Door (btm)	10	Appelez-nous	-
20	71002797		Shield, Heat	10	Appelez-nous	-
