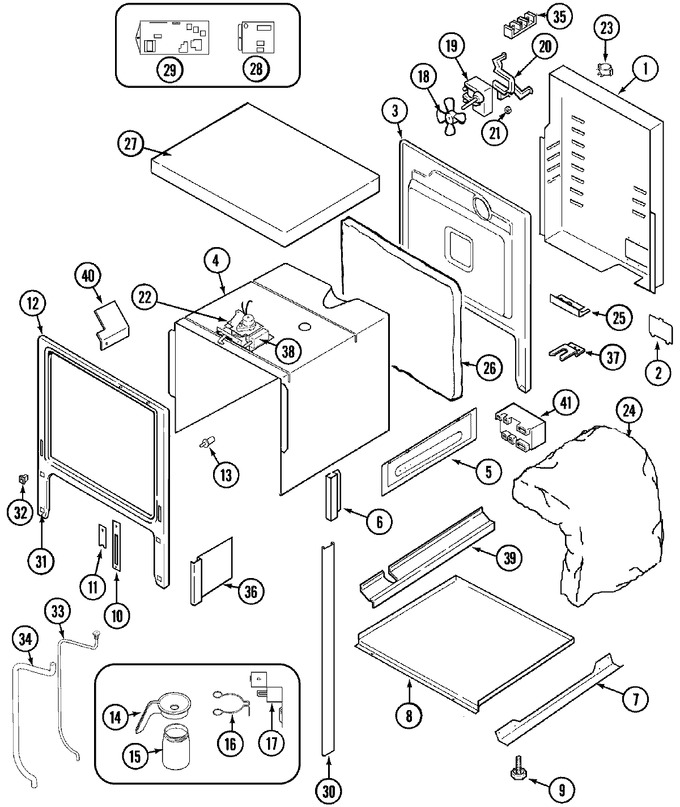

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP90767 | Screw (Replaces: Y700502) | 01 |
|
Immediately | $ 7.04 | |||
| 1 | 71002660 | Cover, Relay | 01 |
|
- | ||||
| 1 | 71002065 | Cover, Main Back | 01 |
|
- | ||||
| 2 | 71002066 | Panel, Access | 01 |
|
- | ||||
| 3 | 71002597 | Back, Main | 01 |
|
- | ||||
| 4 | 71002068 | Panel (side-top-side) | 01 |
|
- | ||||
| 5 | 71002069 | Panel, Side (rt) | 01 |
|
- | ||||
| 5 | 71002070 | Panel, Side (lt) | 01 |
|
- | ||||
| 6 | 71002206 | Receptacle, Hinge | 01 |
|
$ 37.12 | ||||
| 7 | 71002076 | Rail, Bottom | 01 |
|
- | ||||
| 7 | WP90767 | Screw (Replaces: Y700502) | 01 |
|
Immediately | $ 7.04 | |||
| 8 | 71002071 | Panel, Bottom | 01 |
|
- | ||||
| 9 | Y04100573 | Leveler, Leg | 01 |
|
$ 25.32 | ||||
| 10 | 71002072 | Plate, Hinge Cover | 01 |
|
- | ||||
| 11 | 71002077 | Plate, Hinge Retainer | 01 |
|
- | ||||
| 12 | 71001186 | Frame, Oven | 12 |
|
- | ||||
| 12 | WP90767 | Screw (Replaces: Y700502) | 01 |
|
Immediately | $ 7.04 | |||
| 12 | 71001186 | Frame, Oven | 01 |
|
- | ||||
| 13 | 71001129 | Switch, Door Lock | 01 |
|
- | ||||
| 14 | 71002170 | Top, Drain Jar | 01 |
|
- | ||||
| 15 | WPY707869 | Jar, Drain (Replaces: Y707869) | 01 |
|
$ 61.43 | ||||
| 16 | 71002171 | Spring, Drain Jar | 01 |
|
- | ||||
| 17 | WP90767 | Screw (Replaces: Y700502) | 01 |
|
Immediately | $ 7.04 | |||
| 17 | 71002169 | Bracket, Drain Tube | 01 |
|
- | ||||
| 18 | 71001852 | Blade, Fan | 01 |
|
- | ||||
| 19 | 71001851 | Fan Motor Assy. | 01 |
|
- | ||||
| 20 | 71001853 | Bracket, Fan | 01 |
|
- | ||||
| 21 | M0282005 | Nut, Hex (Replaces: 701719) | 01 |
|
$ 7.07 | ||||
| 22 | 71001845 | Latch, Door Assy. | 01 |
|
$ 160.79 | ||||
| 23 | WP7403P899-60 | Switch, Hi-limit (Replaces: Y702548) | 01 |
|
Immediately | $ 181.29 | |||
| 24 | 71001817 | Insulation (wrap) | 01 |
|
- | ||||
| 25 | 71002960 | Bracket, Electric Mtg | 01 |
|
- | ||||
| 26 | 71002073 | Insulation, Back | 01 |
|
- | ||||
| 27 | 71001820 | Insulation (top-btm) | 01 |
|
- | ||||
| 28 | 71002035 | Board, Relay (downdraft) | 01 |
|
- | ||||
| 28 | 74004837 | Shield, Realy (3.53x3) | 10 |
|
- | ||||
| 29 | 71002594 | Board, Relay(bake/broil Conv.) | 01 |
|
- | ||||
| 30 | 71002647 | Trim, Side (wht) | 01 |
|
- | ||||
| 30 | 71002074 | Clip, Side Trim | 01 |
|
- | ||||
| 31 | W10124350 | Not Required Part Or See Note | 20 |
|
- | ||||
| 31 | W10124350 | Not Required Part Or See Note | 18 |
|
- | ||||
| 31 | W10124350 | Not Required Part Or See Note | 19 |
|
- | ||||
| 31 | 71002105 | Grommet, Base Door | 01 |
|
- | ||||
| 31 | W10124350 | Not Required Part Or See Note | 22 |
|
- | ||||
| 32 | 71002106 | Latch, Base Door | 01 |
|
$ 9.11 | ||||
| 33 | 702748 | Nut, Drain Tube | 01 |
|
- | ||||
| 33 | 71002642 | Tube, Drain | 01 |
|
- | ||||
| 33 | 702747 | Washer, Teflon | 01 |
|
- | ||||
| 34 | 71002173 | Insulation, Drain Tube | 01 |
|
- | ||||
| 35 | WP8203546 | Block, Terminal (Replaces: Y702284) | 01 |
|
Immediately | $ 27.12 | |||
| 36 | 71002103 | Panel, Kick (side/wht) | 01 |
|
- | ||||
| 37 | Y705344 | Bracket, Anti-tip | 01 |
|
$ 5.51 | ||||
| 38 | 71002904 | Switch, Door Light | 01 |
|
$ 63.99 | ||||
| 39 | 71002961 | Guard, Wire (rt) | 01 |
|
- | ||||
| 40 | WP90767 | Screw (Replaces: Y700502) | 01 |
|
Immediately | $ 7.04 | |||
| 40 | 71002114 | Guard, Wire | 01 |
|
- | ||||
| 41 | 702751 | Cord, Power | 01 |
|
- | ||||
| 41 | 1430322 | Module, Spark | 01 |
|
$ 108.39 |
