Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP1163283 Screw   (Replaces: Y703741) 11 Special Order $ 6.47

2 701707 Plate, Convection Front 11 Appelez-nous -
3 WP488234 Screw   (Replaces: 708861) 11 Special Order $ 6.07

4 WP74003976 Washer   (Replaces: 702592) 11 Special Order $ 6.47

5 Y703035 Motor, Convect 11 Appelez-nous -
6 701711 Wheel, Convection 11 Appelez-nous -
6 701709 Screw, Set 11 Appelez-nous -
7 DE81-03744A Plate, Convection Back   (Replaces: 701712) 11 Special Order $ 312.62

8 DE81-03745A Cover, Motor Front   (Replaces: 701713) 11 Special Order $ 251.40

9 Y700601 Plate, Motor Mount 11 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

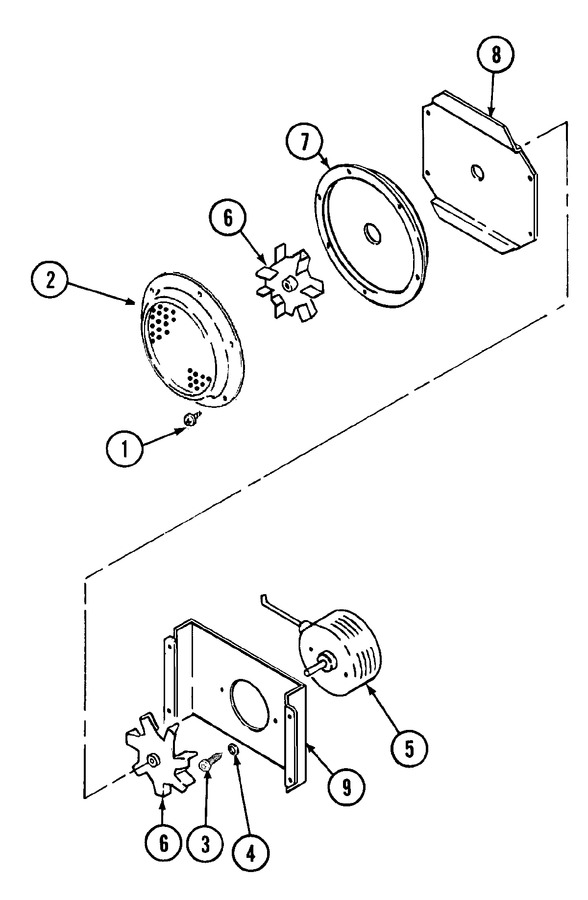

Diagram for SVD8310SG
