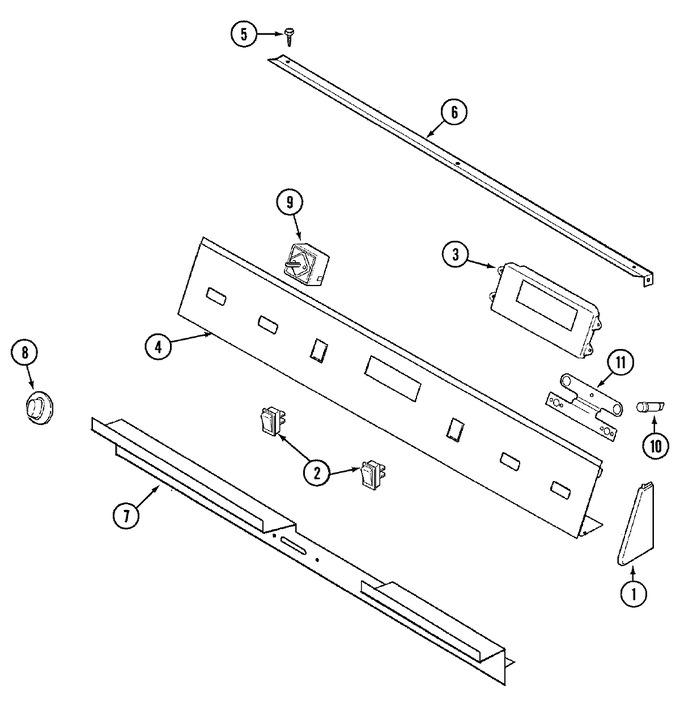

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 71002038 | End Cap (rt-wht) | 01 |
|
- | ||||
| 1 | 71003013 | End Cap (rt-wht) | 16 |
|
- | ||||
| 1 | 71003012 | End Cap (lt-wht) | 16 |
|
- | ||||
| 1 | 71002039 | End Cap (lt-wht) | 01 |
|
- | ||||
| 2 | WP4314961 | Switch, Oven Light (wht) (Replaces: Y04100458) | 01 |
|
$ 80.53 | ||||
| 3 | 71002331CP | Clock (Replaces: 71002331) | 01 |
|
- | ||||
| 3 | 71003544 | Clock | 17 |
|
- | ||||
| 3 | WP12990527 | Screw (Replaces: Y708955) | 01 |
|
Immediately | $ 7.15 | |||
| 4 | 71003338 | Panel, Control Assy. (wht) | 17 |
|
- | ||||
| 4 | 71002199 | Overlay Assy. Membrane (wht) | 01 |
|
- | ||||
| 5 | 71001827 | Screw | 01 |
|
- | ||||
| 6 | 71002043 | Support, Control Panel | 01 |
|
- | ||||
| 7 | 71003017 | Trim, Control Panel (wht) | 16 |
|
- | ||||
| 7 | 71002045 | Trim, Control Panel (wht) | 01 |
|
- | ||||
| 8 | 71002713 | Knob, Switch (wht) | 13 |
|
$ 22.49 | ||||
| 8 | 71002057 | Knob, Switch (gray) | 01 |
|
- | ||||
| 9 | W11120791 | Switch, Infinite (Replaces: 703650) | 01 |
|
Immediately | $ 98.55 | |||
| 9 | WP488234 | Screw (no.8-1/4``) (Replaces: 71002147) | 01 |
|
$ 6.07 | ||||
| 10 | 71001301 | Light, Lock | 01 |
|
- | ||||
| 11 | 71002046 | Bracket, Lock Light | 01 |
|
- | ||||
| 12 | 71002451 | Harness, Csa Relay | 01 |
|
- | ||||
| 12 | 71002200 | Harness, Control | 01 |
|
- | ||||
| 12 | 71002450 | Harness, Hi-limit | 01 |
|
- | ||||
| 12 | 71002203 | Harness, Infinite | 01 |
|
- | ||||
| 12 | 71002049 | Harness, Supply (j1) | 01 |
|
- | ||||
| 12 | 71002051 | Harness, Cooling Fan | 01 |
|
- | ||||
| 12 | 71002202 | Harness, Down Draft | 01 |
|
- | ||||
| 12 | 71002201 | Harness, Door Lock | 01 |
|
- | ||||
| 12 | 71002204 | Harness, Relay Board | 01 |
|
- | ||||
| 12 | 703648 | Harness, Backsplash | 01 |
|
- | ||||
| 12 | 71003334 | Harness, Control | 17 |
|
- | ||||
| 13 | 71002452 | Manual, Use & Care | 01 |
|
- | ||||
| 13 | 71002028 | Manual, Use & Care | 17 |
|
- | ||||
| 13 | 71003320 | Manual, Use & Care (fch) | 17 |
|
- |
