SELECT A DIAGRAM

01 - Access Panel


02 - Blower Assembly (plenum)


03 - Body


04 - Control Panel


05 - Door


06 - Oven


07 - Top Assembly


08 - Wiring Information

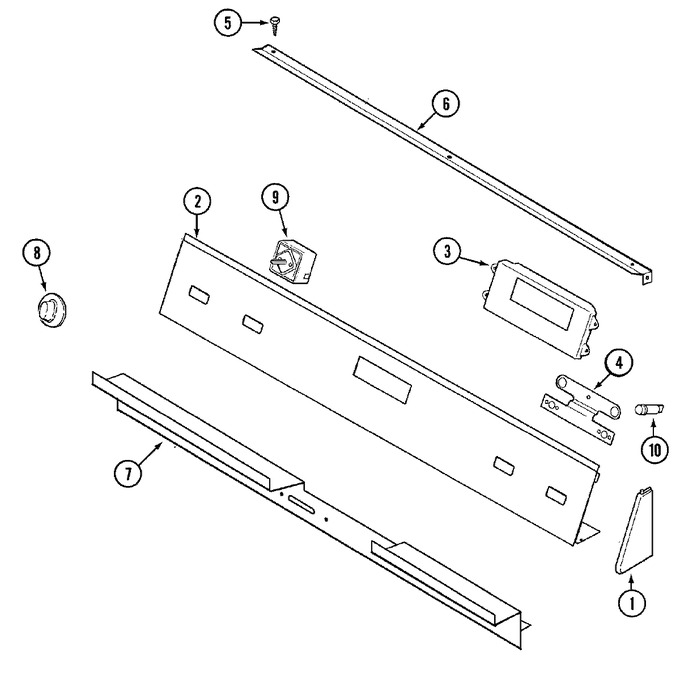

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	71002037		End Cap (lt-blk)	01	Appelez-nous	-
1	71002036		End Cap (rt-blk)	01	Appelez-nous	-
1	71003014		End Cap (lt-blk)	12	Appelez-nous	-
1	71003015		End Cap (rt-blk)	12	Appelez-nous	-
2	71002033		Switch, Membrane Asy. (blk)	01			$ 304.35
3	WP71001799		Clock   (Replaces: 71001799)	01		Immediately	$ 371.25
3	WP12990527		Screw   (Replaces: Y708955)	01		Immediately	$ 7.15
4	71002046		Bracket, Lock Light	01	Appelez-nous	-
5	WPY706189		Screw   (Replaces: Y706189)	01		Immediately	$ 6.47
6	71002043		Support, Control Panel	01	Appelez-nous	-
7	71002044		Trim, Control Panel (blk)	01	Appelez-nous	-
7	71003016		Trim, Control Panel (blk)	12	Appelez-nous	-
8	71002056		Knob, Switch (blk)	01	Appelez-nous	-
8	71002711		Knob, Switch (blk)	11	Appelez-nous	-
9	W11120791		Switch, Infinite   (Replaces: 703650)	01		Immediately	$ 98.55
9	71002058		Screw	01			$ 5.82
10	71001301		Light, Lock	01	Appelez-nous	-
11	71002117		Harness, Convect	01	Appelez-nous	-
11	71002051		Harness, Cooling Fan	01	Appelez-nous	-
11	71002048		Harness, Control (j2)	01	Appelez-nous	-
11	71002050		Harness, Door Lock	01	Appelez-nous	-
11	71003182		Harness, Oven Lamp	14	Appelez-nous	-
11	71003181		Harness, Door Lock	14	Appelez-nous	-
11	71003030		Harness, Hi-limit	13	Appelez-nous	-
11	71002049		Harness, Supply (j1)	01	Appelez-nous	-
11	71002052		Harness, Down Draft (j4)	01	Appelez-nous	-
11	71002059		Harness, Hi-limit	01	Appelez-nous	-
11	71002054		Harness, Infinite	01	Appelez-nous	-
11	71002053		Harness, Oven Sensor (j10)	01	Appelez-nous	-
11	71003186		Harness, Control	15	Appelez-nous	-
12	71002662		Manual, Use & Care	01	Appelez-nous	-
13	16009097		Manual, Service-no Refund	01	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
