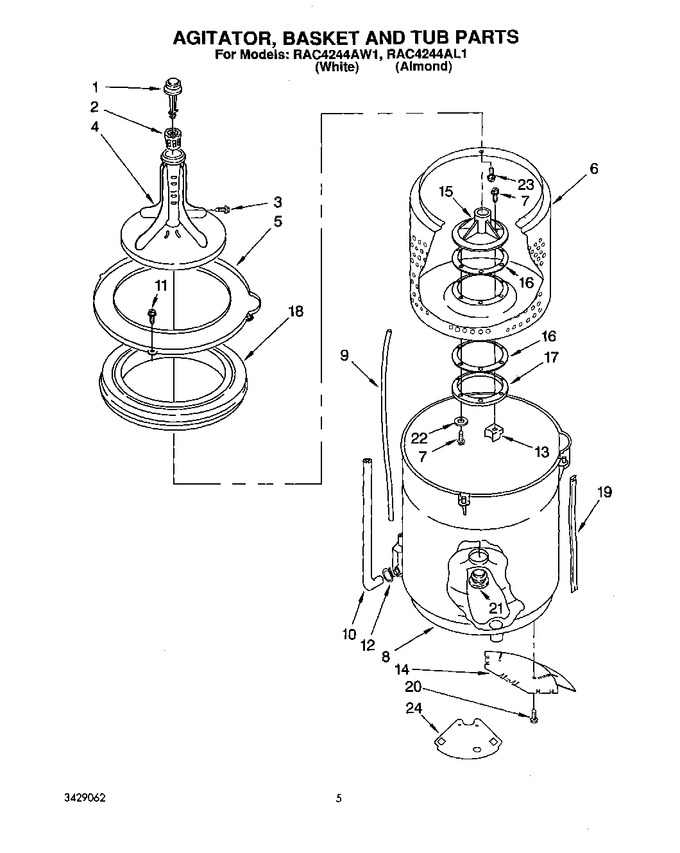

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3428670 | Tube And Dispenser |
|
- | |||||
| 2 | 3428391 | Filter |
|
- | |||||
| 3 | 3428014 | Screw |
|
- | |||||
| 4 | 3428392 | Agitator |
|
- | |||||
| 5 | 3429902 | Tub Ring |
|
- | |||||
| 6 | 3428186 | Basket |
|
- | |||||
| 7 | 3428430 | Screw |
|
- | |||||
| 8 | 3428517 | Tub |
|
- | |||||
| 9 | WP353244 | Hose, Pressure Switch (Replaces: 3429857) |
|
Immediately | $ 53.94 | ||||
| 10 | 3430339 | Hose, Bleach |
|
$ 16.39 | |||||
| 11 | 3428014 | Screw |
|
- | |||||
| 12 | WP596669 | Clamp, Hose (Replaces: 370452) |
|
Immediately | $ 7.56 | ||||
| 13 | 3428429 | Saddle Block |
|
- | |||||
| 14 | 3428814 | Shield, Tub/motor |
|
- | |||||
| 15 | 3430098 | Hub, Drive |
|
- | |||||
| 16 | 3428179 | Gasket, Hub (2) |
|
- | |||||
| 17 | 3428395 | Clamp, Ring |
|
- | |||||
| 18 | 3428181 | Balance Ring |
|
- | |||||
| 19 | 3430093 | Hose, Tub Overflow |
|
- | |||||
| 20 | WP3400872 | Screw (Replaces: 3429682) |
|
$ 6.95 | |||||
| 21 | WP3968381 | Seal (Replaces: 3428286) |
|
$ 26.59 | |||||
| 22 | 3429750 | Washer |
|
- | |||||
| 23 | 3428014 | Screw, Balance Ring (4) |
|
- | |||||
| 24 | 3430303 | Shield, Tub/solenoid |
|
- |
