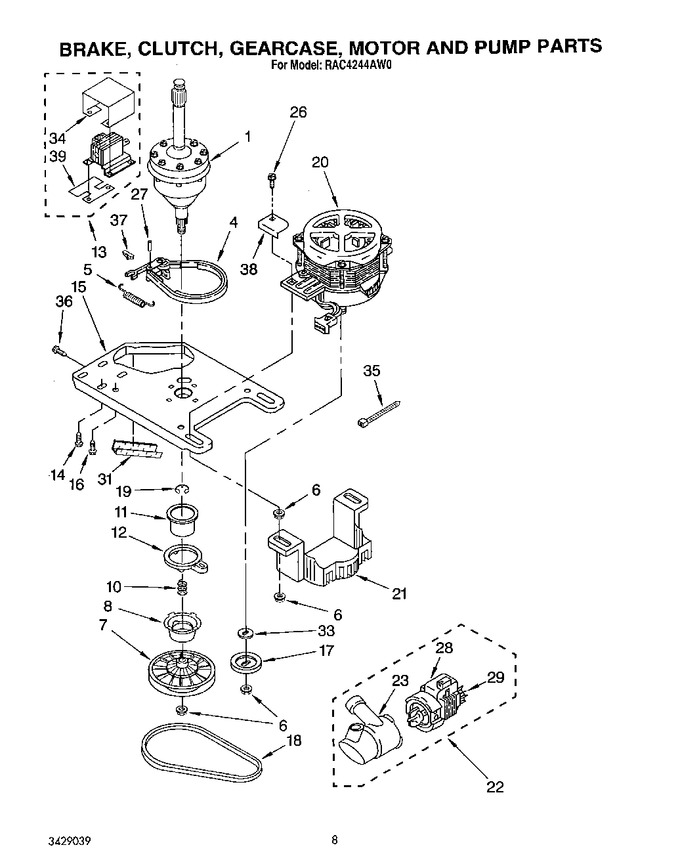

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3429856 | Gearcase Assembly |
|
- | |||||
| 4 | 3428323 | Brake Band |
|
$ 20.90 | |||||
| 5 | 3428342 | Spring, Brake |
|
- | |||||
| 6 | 3428083 | Nut, Washer Locking |
|
- | |||||
| 7 | 3428359 | Pulley, Splutch |
|
$ 33.87 | |||||
| 8 | 3428378 | Cam, Splutch |
|
$ 35.36 | |||||
| 10 | 3428381 | Spring, Splutch |
|
- | |||||
| 11 | 3428380 | Slider, Splutch |
|
- | |||||
| 12 | 3428379 | Cam Ring, Splutch |
|
$ 5.51 | |||||
| 13 | 3430204 | Solenoid (includes In-line Fuse) |
|
- | |||||
| 14 | 3934040 | Screw, Solenoid Mtg. (4) |
|
- | |||||
| 15 | 3430205 | Plate, Motor Mount |
|
- | |||||
| 16 | 3429405 | Bolt, Motor Plate (4) |
|
- | |||||
| 17 | 3428683 | Pulley, Motor |
|
- | |||||
| 18 | 3428097 | Drive Belt |
|
- | |||||
| 19 | 3429530 | Ring, Snap |
|
- | |||||
| 20 | 3934034 | Motor, Main Drive (includes Items 33, 17, & 6) |
|
- | |||||
| 21 | 3429190 | Shield, Pulley |
|
- | |||||
| 22 | 3430119 | Pump (complete) |
|
- | |||||
| 23 | 3430120 | Housing, Pump |
|
- | |||||
| 26 | 3429371 | Bolt, Motor Mounting (2) |
|
- | |||||
| 27 | 3428385 | Pin, Brake Band |
|
- | |||||
| 28 | 3430089 | Pump |
|
- | |||||
| 29 | 3429939 | Blade, Fan |
|
- | |||||
| 31 | 3429705 | Protector, Edge |
|
- | |||||
| 33 | 3428377 | Washer, Pulley |
|
- | |||||
| 34 | 3430305 | Solenoid Shield, Top |
|
- | |||||
| 35 | WP2205813 | Tie, Wire (Replaces: 3429563) |
|
$ 6.95 | |||||
| 36 | WP3351614 | Screw, Ground (Replaces: 3428971) |
|
Immediately | $ 6.26 | ||||
| 37 | 3429416 | Lock, Solenoid |
|
- | |||||
| 38 | 3430197 | Shield, Motor Connector |
|
- | |||||
| 39 | 3430307 | Solenoid Shield, Bottom |
|
- |
