SELECT A DIAGRAM

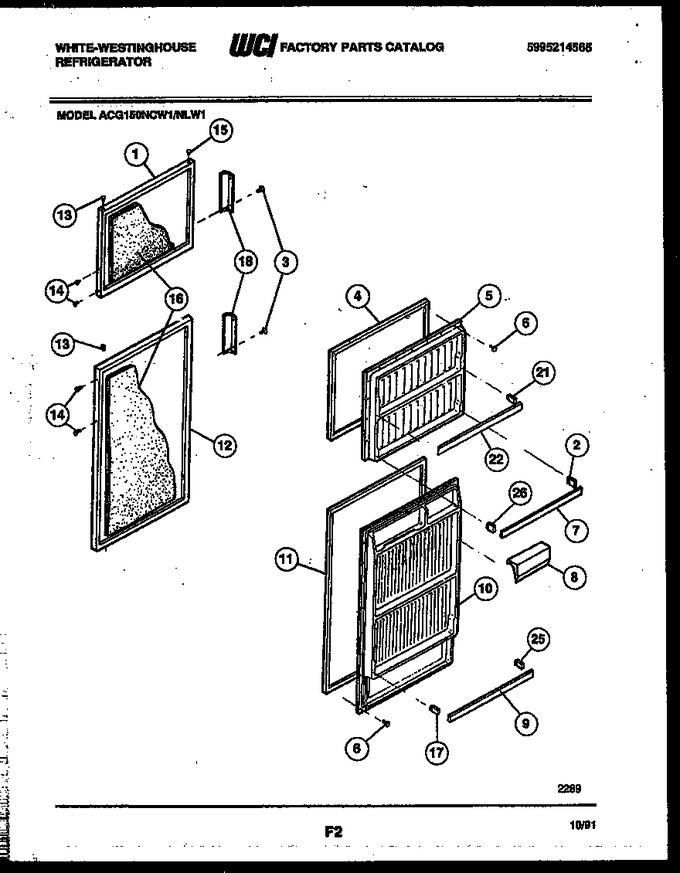

02 - Door Parts
03 - Cabinet Parts
04 - System And Automatic Defrost Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303916963 | Freezer Door-white |
|
- | |||||
| 2 | 3206161 | End Cap-rh |
|
- | |||||
| 3 | 5308013645 | Screw, Handle Mtg (4) |
|
- | |||||
| 4 | 5303001304 | Gasket, Freezer |
|
- | |||||
| 5 | 5303276517 | Inner Panel-freezer |
|
- | |||||
| 6 | 5308002748 | Screw |
|
- | |||||
| 7 | 5303280621 | Door Rack-freezer-lwr |
|
- | |||||
| 8 | 5303206149 | Door Rack-freezer-lwr |
|
- | |||||
| 9 | 215366002 | Door Rack-refr (2) (Replaces: 5303280367) |
|
Immediately | $ 65.83 | ||||
| 10 | 5303280624 | Inner Panel-refr |
|
- | |||||
| 11 | 5303017373 | Gasket-refrigerator |
|
- | |||||
| 12 | 5303916978 | Refrigerator Door-white |
|
- | |||||
| 13 | 3206153 | Bearing-hinge (8) |
|
- | |||||
| 14 | 240494001 | Plug-white (4) (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 15 | 5308000134 | Plug-white (2) |
|
$ 5.62 | |||||
| 16 | 5303007739 | Insulation-bulk-fiberglass |
|
- | |||||
| 17 | 3206151 | End Cap-lh (2) |
|
- | |||||
| 18 | 5308009875 | Handle-refr-frzr |
|
- | |||||
| 21 | 3206165 | End Cap-rh |
|
Immediately | $ 8.19 | ||||
| 22 | 5303280622 | Door Rack-freezer-upper |
|
- | |||||
| 25 | 3206150 | End Cap-rh (2) |
|
$ 12.58 | |||||
| 26 | 3206162 | End Cap-lh (2) |
|
- | |||||
| 21A | 320616 | End Cap-lh |
|
- |
