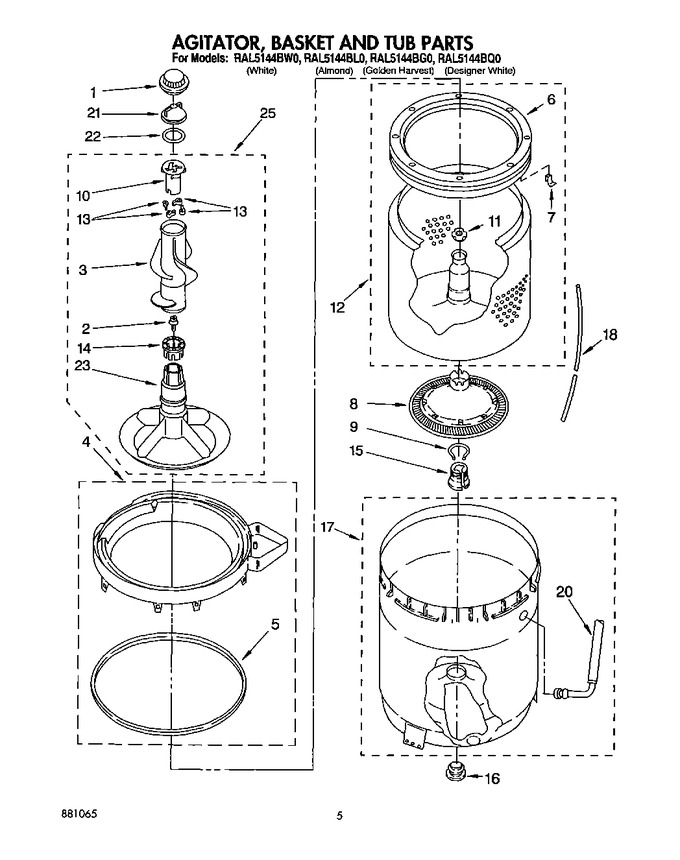

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3355758 | Cap, Agitator (Replaces: 3355761) |
|
Immediately | $ 8.10 | ||||
| 2 | WP358237 | Screw & Washer (5-16-24 X 1) (Replaces: 358237) |
|
Immediately | $ 7.97 | ||||
| 3 | WP3349019 | Mover, Agitator (Replaces: 3352113) |
|
$ 194.80 | |||||
| 4 | 3360611 | Tub Ring & Gasket |
|
$ 88.45 | |||||
| 5 | WP3359586 | Gasket, Tub Ring (Replaces: 3359586) |
|
$ 81.11 | |||||
| 6 | WP8519815 | Clip, Balance Ring (8) (Replaces: 387867) |
|
$ 7.51 | |||||
| 7 | 387868 | Balance Ring |
|
- | |||||
| 8 | 285868 | Filter, Plate (includes Item 9) (Replaces: 62941) |
|
Immediately | $ 19.51 | ||||
| 9 | 62942 | Lock, Filter |
|
$ 7.59 | |||||
| 10 | 285811 | Cam Driven, Short (Replaces: 3351001) |
|
Immediately | $ 29.33 | ||||
| 11 | WP21366 | Nut, Spanner (Replaces: 21366) |
|
Immediately | $ 8.00 | ||||
| 12 | 387713 | Basket & Balance Ring (includes Illus. 6) |
|
- | |||||
| 13 | 80040 | Dog, Agitator Clutch (Replaces: 387091) |
|
Immediately | $ 3.28 | ||||
| 14 | 285587 | Spacer, Thrust (Replaces: 3350389) |
|
Immediately | $ 3.98 | ||||
| 15 | WP389140 | Block, Basket Drive (Replaces: 389140) |
|
Immediately | $ 24.74 | ||||
| 16 | W10814296 | Gasket, Center Post (Replaces: 383727) |
|
Immediately | $ 8.26 | ||||
| 17 | 63039 | Tub |
|
- | |||||
| 18 | WP353244 | Hose, Pressure Switch (Replaces: 3347780) |
|
Immediately | $ 53.94 | ||||
| 20 | 3358198 | Hose, Bleach |
|
- | |||||
| 21 | WPW10074580 | Cap, Barrier (Replaces: 3347290) |
|
Immediately | $ 11.16 | ||||
| 22 | WPW10072840 | Seal-inner Cap (Replaces: 3348855) |
|
Immediately | $ 7.85 | ||||
| 23 | 3352112 | Agitator |
|
- | |||||
| 25 | 3352110 | Agitator, Gull Wing (complete Asy.) |
|
- |
