Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3430244 Harness, Wiring (upper) Appelez-nous -
2 3430155 Harness, Wiring (lower) Appelez-nous -
3 3347243 Connector, Temp. Switch Appelez-nous -
4 3369366 Block, Timer Disconnect (white) Appelez-nous -
5 3369365 Terminal, Female Appelez-nous -
6 311150 Block, Disconnect (motor) (uses Terminal No.310222) Appelez-nous -
7 3429522 Clip, Harness Appelez-nous -
12 WP2205813 Tie, Wire   (Replaces: 3429563) Special Order $ 6.95


    View Diagram in Separate Window     Print Icon   Print Part List

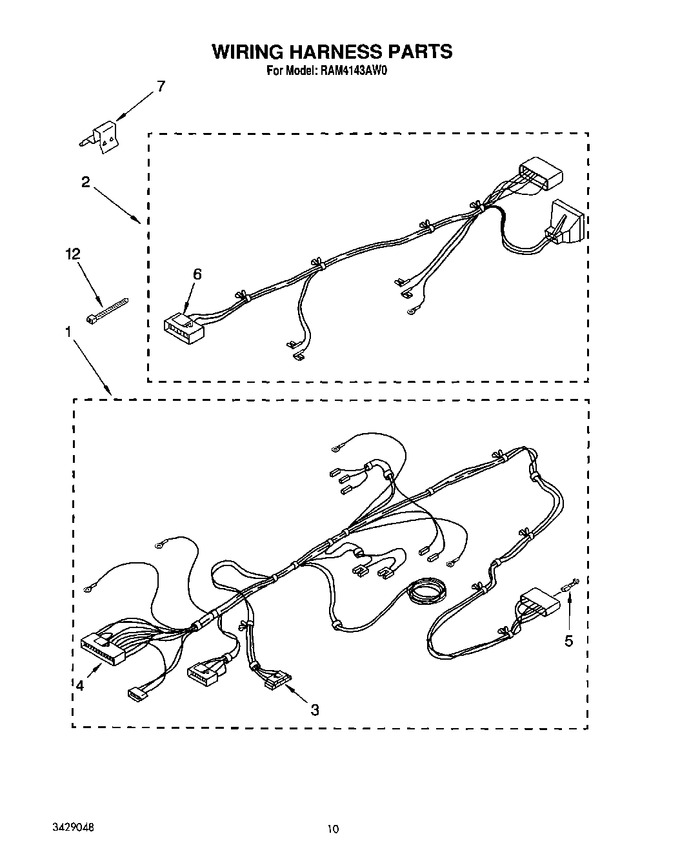

Diagram for RAM4143AL0
