SELECT A DIAGRAM

01 - Top And Cabinet, Lit/optional

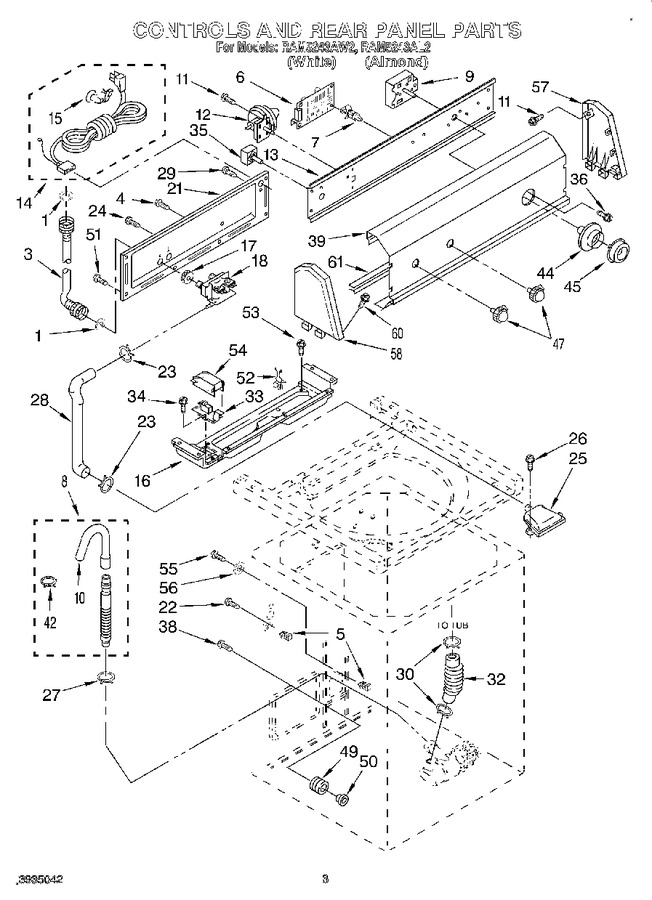

02 - Controls And Rear Panel


03 - Agitator, Basket And Tub


04 - Miscellaneous


05 - Brake, Clutch, Gearcase, Motor & Pump


06 - Suspension


07 - Wiring Harness


08 - Water System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP16123		Washer, Water Inlet Hose (4) (1-1/16 X 5/8)   (Replaces: 16123)				$ 6.93
3	WP89503		Hose, Water Inlet (2)   (Replaces: 660028)			Immediately	$ 21.68
4	3429189		Screw, Console Cover (4)		Appelez-nous	-
5	3428879		Clip, Harness		Appelez-nous	-
6	3934669		Board, Control		Appelez-nous	-
7	3429401		Stand Off		Appelez-nous	-
8	285664		Hose, Drain (4`- 8``)   (Replaces: 661575)			Immediately	$ 33.20
8	285666		Hose, Drain (9`- 9``) (not Included)   (Replaces: 661577)			Immediately	$ 56.11
8	285702		Extension, Drain Hose (21 Inches) (not Included)   (Replaces: 3357090)			Immediately	$ 54.81
9	3430177		Timer, Control (60 Hz.)		Appelez-nous	-
10	WP3357027		Nozzle-drain Hose   (Replaces: 3357027)				$ 83.88
11	WP3400872		Screw, Switch Mtg.   (Replaces: 3934035)				$ 6.95
12	3934913		Switch, Water Level		Appelez-nous	-
13	3934382		Bracket, Control		Appelez-nous	-
14	3429816		Cord, Power		Appelez-nous	-
15	W11733005		Strain Relief, Power Cord   (Replaces: 63848)				$ 11.64
16	3428435		Pan, Console		Appelez-nous	-
17	WP96160		Screen, Filter (2)   (Replaces: 96160)				$ 10.54
18	3934904		Valve, Water Mixing		Appelez-nous	-
21	3430103		Panel, Rear		Appelez-nous	-
22	WP3351614		Screw, Power Cord Ground   (Replaces: 3428971)			Immediately	$ 6.26
23	WP596669		Clamp, Hose (2)   (Replaces: 371501)			Immediately	$ 7.56
24	WP3351614		Screw, Mixing Valve Mtg. (2)   (Replaces: 3428971)			Immediately	$ 6.26
25	3429917		Water Inlet (upper)		Appelez-nous	-
25	3429918		Water Inlet (lower)		Appelez-nous	-
26	3934040		Screw, Water Inlet Mtg. (2)		Appelez-nous	-
27	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
28	3428574		Hose, Valve To Water Inlet		Appelez-nous	-
29	WP3351614		Screw, Ground   (Replaces: 3428971)			Immediately	$ 6.26
30	WP616099		Clamp, Hose   (Replaces: 370448)			Immediately	$ 7.03
32	3430217		Hose, Pump To Tub		Appelez-nous	-
33	3934248		Switch, Lid		Appelez-nous	-
34	WP3400872		Screw, Switch Mounting   (Replaces: 3429682)				$ 6.95
35	3429541		Switch, Water Temperature		Appelez-nous	-
36	WP3428970		Screw, Timer Mounting (2)   (Replaces: 3428970)				$ 9.82
38	3428934		Screw, Pump Mtg. (2)		Appelez-nous	-
39	3430279		Panel, Console		Appelez-nous	-
42	WP3357331		Clamp, Drain Hose   (Replaces: 3357331)				$ 6.80
44	3388184		Dial, Timer		Appelez-nous	-
45	280193		Knob, Timer   (Replaces: 3352173)				$ 51.36
47	3352167		Knob, Control		Appelez-nous	-
49	3428526		Grommet, Pump (3)		Appelez-nous	-
50	3428933		Spacer, Pump (3)		Appelez-nous	-
51	3429942		Screw		Appelez-nous	-
52	3429534		Clip, Coil (2)		Appelez-nous	-
53	3429941		Screw		Appelez-nous	-
54	3429706		Shield, Lid Switch		Appelez-nous	-
55	3428014		Screw		Appelez-nous	-
56	3429923		Washer		Appelez-nous	-
57	3357998		Cap, End (r.h.)		Appelez-nous	-
58	3358016		Cap, End (l.h.)		Appelez-nous	-
60	WP388326		Screw (panel To Top)   (Replaces: 3353145)				$ 7.30
61	3430105		Extrusion, Console To Top		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
