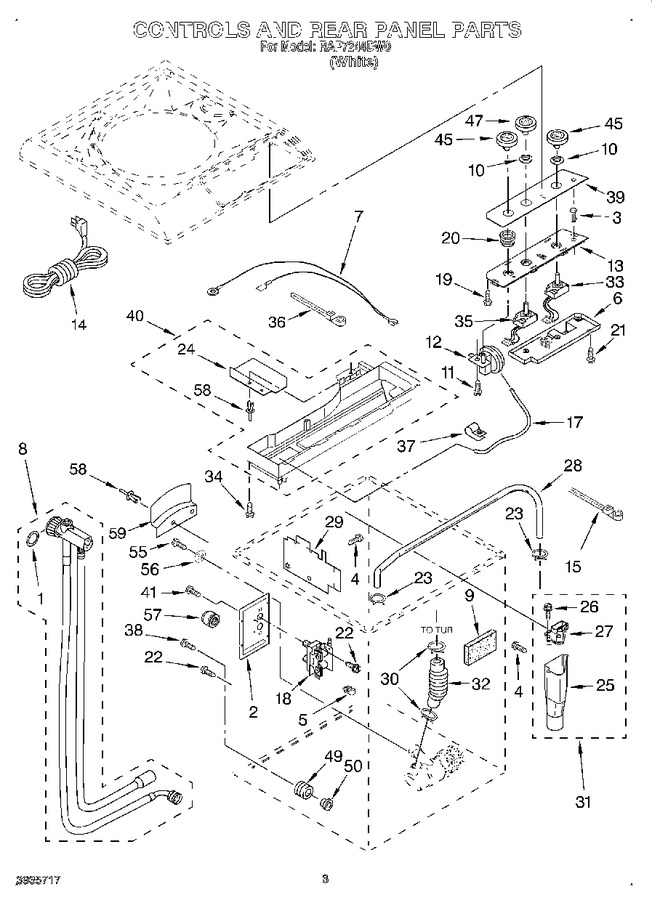

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP910218 | Seal (Replaces: 711696) |
|
Immediately | $ 9.05 | ||||
| 2 | 3935155 | Bracket-valve |
|
- | |||||
| 3 | 3935357 | Extension, Start-pause |
|
- | |||||
| 4 | 3429189 | Screw |
|
- | |||||
| 5 | 3935875 | Clip, Harness |
|
- | |||||
| 6 | 3935483 | Timer/control Board |
|
- | |||||
| 7 | 3935929 | Jumper-wire |
|
- | |||||
| 8 | W10849778 | Hose Coupler Assembly (includes Item No.1) (Replaces: 3430161) |
|
$ 271.76 | |||||
| 9 | 3935630 | Pad-protector |
|
- | |||||
| 10 | 3935353 | Seal |
|
- | |||||
| 11 | 3935602 | Screw, Switch Mtg. |
|
- | |||||
| 12 | 3934914 | Switch, Water Level |
|
- | |||||
| 13 | 3935270 | Bracket, Control |
|
- | |||||
| 14 | 3934172 | Harness-power Cord. (for Detail See Wiring Harness Parts Page) |
|
- | |||||
| 15 | 3429812 | Tie, Wire (push Mount) |
|
- | |||||
| 17 | 3935344 | Hose, Pressure Switch. |
|
- | |||||
| 18 | 3360396 | Valve, Water Mixing |
|
- | |||||
| 19 | WP3400872 | Screw (Replaces: 3429682) |
|
$ 6.95 | |||||
| 20 | 3935354 | Seal, Pressure Switch |
|
- | |||||
| 21 | 3935667 | Screw, Control Board |
|
- | |||||
| 22 | WP3400094 | Screw (Replaces: 3966200) |
|
$ 7.14 | |||||
| 23 | WP596669 | Clamp, Hose (2) (Replaces: 371501) |
|
Immediately | $ 7.56 | ||||
| 24 | 3935672 | Shield, Harness |
|
- | |||||
| 25 | 3935325 | Funnel-inlet (body) |
|
- | |||||
| 26 | WP3400872 | Screw, Water Inlet Mtg. (2) (Replaces: 3934035) |
|
$ 6.95 | |||||
| 27 | 3966222 | Funnel-inlet (top) |
|
- | |||||
| 28 | 3935330 | Hose, Valve To Water Inlet |
|
- | |||||
| 29 | 3935995 | Shield, Water Valve |
|
- | |||||
| 30 | WP616099 | Clamp, Hose (Replaces: 370448) |
|
Immediately | $ 7.03 | ||||
| 31 | 3935327 | Funnel-inlet Asy. |
|
- | |||||
| 32 | 3429900 | Hose, Pump To Tub |
|
$ 22.54 | |||||
| 33 | 3966202 | Switch, Cycle Selection |
|
$ 11.56 | |||||
| 34 | 3935634 | Screw, Top Shield |
|
- | |||||
| 35 | 3966205 | Switch, Water Temperature |
|
- | |||||
| 36 | 3935429 | Clamp, Tie Wrap |
|
- | |||||
| 37 | 3935709 | Clamp, Cable (pressure Switch) |
|
- | |||||
| 38 | 3428934 | Screw, Pump Mtg. (2) |
|
- | |||||
| 39 | 3935510 | Panel, Console (includes Inlay) |
|
- | |||||
| 40 | 3935627 | Top, Shield Assy. |
|
- | |||||
| 41 | 3934148 | Screw, 10-16 X 1/2 |
|
- | |||||
| 45 | 3935954 | Knob, Cycle Selection |
|
- | |||||
| 47 | 3352167 | Knob, Temperature Control |
|
- | |||||
| 49 | 3428526 | Grommet, Pump (3) |
|
- | |||||
| 50 | 3428933 | Spacer, Pump (3) |
|
- | |||||
| 55 | 3428014 | Screw |
|
- | |||||
| 56 | 3429923 | Washer |
|
- | |||||
| 57 | 70136 | Cap, Threaded (Replaces: 356054) |
|
Immediately | $ 3.17 | ||||
| 58 | 3430186 | Rivet |
|
- | |||||
| 59 | 356499 | Bracket, Hose Storage |
|
$ 32.28 |
