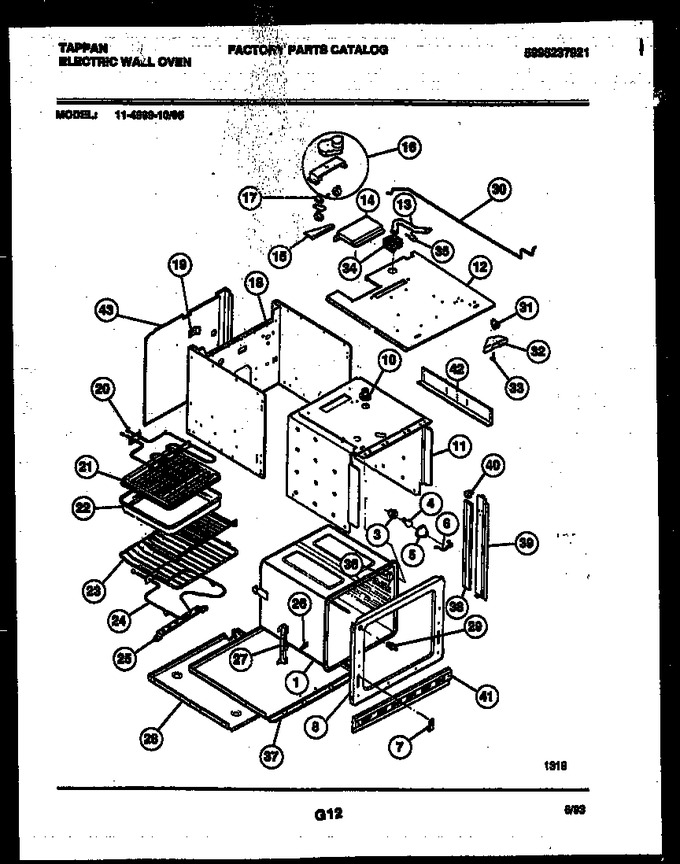

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303296870 | Liner-oven |
|
- | |||||
| 3 | 08011171 | Receptacle |
|
- | |||||
| 4 | 3201908 | Bulb |
|
- | |||||
| 5 | 5304524341 | Lens (Replaces: 3201911) |
|
Immediately | $ 14.18 | ||||
| 6 | 3204483 | Retainer-lens |
|
- | |||||
| 7 | 3019063 | Retainer - Door (2) |
|
- | |||||
| 8 | 5303299251 | Frame, Front |
|
- | |||||
| 10 | 3205683 | Vent Tube Assy |
|
- | |||||
| 11 | 5303299270 | Shield, Insulation |
|
- | |||||
| 12 | 3016249 | Wrapper - Top |
|
- | |||||
| 13 | 3016301 | Duct - Vent Tube |
|
- | |||||
| 14 | 3016296 | Cover-motor |
|
- | |||||
| 15 | 3016276 | Bracket-motor Mtg |
|
- | |||||
| 16 | 5303016242 | Motor-latch Assembly |
|
- | |||||
| 17 | 3202430 | Switch, Lock (2) |
|
- | |||||
| 18 | 3016275 | Wrapper |
|
- | |||||
| 19 | 3016281 | Spring, Oven (2) |
|
- | |||||
| 20 | 5303016247 | Element, Broil |
|
$ 223.97 | |||||
| 21 | 3205234 | Insert, Broiler Pan |
|
- | |||||
| 22 | 5303292159 | Pan-broiler |
|
- | |||||
| 23 | 318345216 | Rack (2) (Replaces: 5303296873) |
|
$ 103.90 | |||||
| 24 | 318255101 | Element, Bake (Replaces: 3202440) |
|
$ 185.70 | |||||
| 25 | 3016248 | Support-broil Elmnt |
|
- | |||||
| 26 | 3201632 | Spacer, Oven (2) |
|
- | |||||
| 27 | 3201631 | Channel-hinge (2) |
|
$ 58.22 | |||||
| 28 | 3016277 | Wrapper, Base |
|
- | |||||
| 29 | 3016298 | Switch, Oven Light |
|
- | |||||
| 30 | 3016241 | Rod |
|
- | |||||
| 31 | 3051648 | Latch |
|
- | |||||
| 32 | 3019069 | Housing-latch |
|
- | |||||
| 33 | 5308012004 | Axle-latch |
|
$ 8.29 | |||||
| 34 | 3016302 | Insulation - Vent |
|
- | |||||
| 35 | 3016303 | Clip-insul Retainer |
|
- | |||||
| 36 | 3016313 | Cover-seam |
|
- | |||||
| 37 | 3016273 | Shield, Insulation |
|
- | |||||
| 38 | 3016279 | Trim, Inner, Rh |
|
- | |||||
| 39 | 5303291238 | Trim-side Outer (2) |
|
- | |||||
| 40 | 5303271106 | Trim-cap Rh |
|
- | |||||
| 41 | 5303299253 | Trim-base |
|
- | |||||
| 42 | 3016278 | Support, Height (2) |
|
- | |||||
| 43 | 3016314 | Cover, Wire |
|
- | |||||
| *85743 | 3201910 | Clip-thermo Bulb |
|
- | |||||
| *85743 | 3016274 | Insulation, Back |
|
- | |||||
| *85743 | 5303299252 | Insulation |
|
- | |||||
| *85743 | 19100180235 | Wiring Diagram (not For Purchase) |
|
- | |||||
| 23A | 5303299271 | Oven Shelf |
|
- | |||||
| 38A | 3016280 | Trim, Inner, Lh |
|
- | |||||
| 40A | 5303271107 | Trim-cap Lh |
|
- |
