SELECT A DIAGRAM

01 - Top And Cabinet

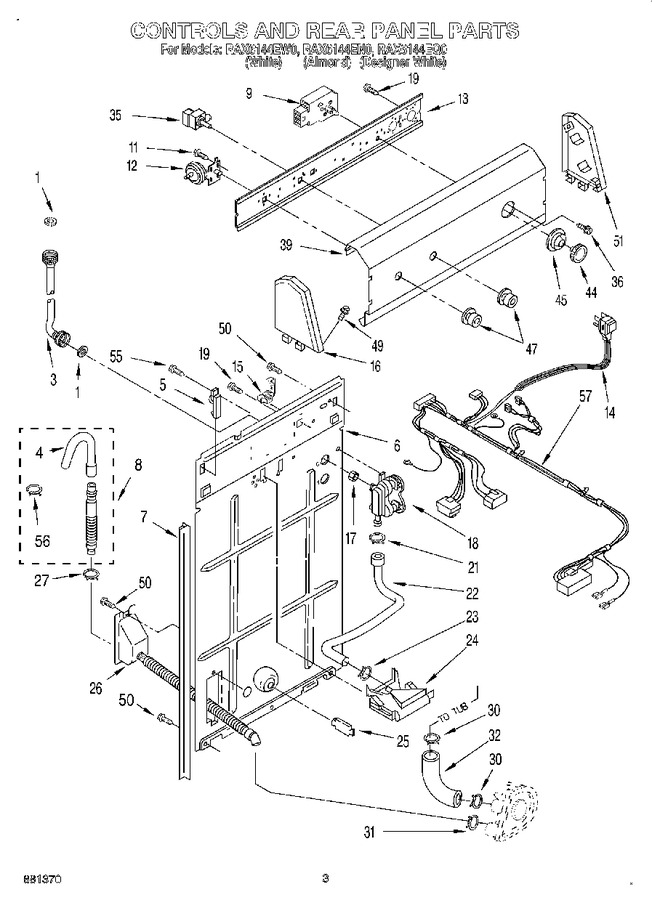

02 - Controls And Rear Panel


03 - Agitator, Basket And Tub


04 - Brake, Clutch, Gearcase, Motor And Pump


05 - Machine Base


06 - Wiring Harness


07 - Brake And Drive Tube


08 - Gearcase


09 - Water System


10 - Miscellaneous, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP16123		Washer, Water Inlet Hose (4) (1-1/16 X 5/8)   (Replaces: 16123)				$ 6.93
3	WP89503		Hose, Water Inlet (2) (hose (inlet))   (Replaces: 3949351)			Immediately	$ 21.68
3	WP89503		Hose, Water Inlet (2) (hose, (inlet))   (Replaces: 3949350)			Immediately	$ 21.68
4	WP3357027		Nozzle-drain Hose   (Replaces: 3357027)				$ 83.88
5	387402		Hinge, Console (2)				$ 5.84
6	3357978		Panel, Rear		Appelez-nous	-
7	WP62747		Pad, Rear Panel   (Replaces: 62747)				$ 23.63
8	285702		Extension, Drain Hose (21 Inches) (not Included)   (Replaces: 3357090)			Immediately	$ 54.81
8	285666		Hose, Drain (9`- 9``) (not Included)   (Replaces: 661577)			Immediately	$ 56.11
8	285664		Hose, Drain (4`- 8``)   (Replaces: 661575)			Immediately	$ 33.20
9	WP3948323		Timer, Control (60 Hz.) (motor Not A Service Part)   (Replaces: 3948323)				$ 424.57
11	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 7.04
12	3356466		Switch, Water Level				$ 78.59
13	WP3948608		Bracket, Control   (Replaces: 3948608)				$ 104.57
14	3949248		Cord, Power		Appelez-nous	-
15	3949468		Strain Relief, Power Cord		Appelez-nous	-
16	3358015		Cap, End (l.h.) (for Designer White Model)		Appelez-nous	-
16	3358013		Cap, End (l.h.) (for White And Almond Models)		Appelez-nous	-
17	WP96160		Screen, Filter (2)   (Replaces: 96160)				$ 10.54
18	285805		Valve, Water Mixing   (Replaces: 3360392)			Immediately	$ 49.57
19	WP3351614		Screw, Ground 10-24 X 3/8   (Replaces: 90864)			Immediately	$ 6.26
21	WP596669		Clamp, Hose   (Replaces: 370451)			Immediately	$ 7.56
22	WP3357328		Hose, Vacuum Break   (Replaces: 3357328)			Immediately	$ 22.30
23	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 7.56
24	WP3347034		Break, Vacuum   (Replaces: 3347034)			Immediately	$ 67.75
25	WP8519200		Support, Rear Panel   (Replaces: 63290)			Immediately	$ 17.01
26	WPW10358149		Hose-corrugated Assy.   (Replaces: 3361805)			Immediately	$ 43.34
27	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
30	WP371502		Clamp, Hose   (Replaces: 371502)				$ 10.38
31	WP285655		Clamp, Hose   (Replaces: 660628)			Immediately	$ 7.55
32	285871		Hose, Pump To Tub   (Replaces: 62731)			Immediately	$ 24.01
35	3949184		Switch, Water Temperature		Appelez-nous	-
36	WP356418		Screw, Timer Mounting (10-32 X 1) (2)   (Replaces: 96435)				$ 7.13
39	3949717		Panel, Console (for Designer White Model)		Appelez-nous	-
39	3949716		Panel, Console (for White And Almond Models)		Appelez-nous	-
44	WP3362625		Knob, Timer (for White And Almond Models)   (Replaces: 3362628)			Immediately	$ 51.47
44	WP3362625		Knob, Timer (for Designer White Model)   (Replaces: 3362625)			Immediately	$ 51.47
45	3946479		Dial, Timer (for White And Almond Models)		Appelez-nous	-
45	3946477		Dial, Timer (for Designer White Model)		Appelez-nous	-
47	3398393		Knob, Water Temperature (for White And Almond Models)		Appelez-nous	-
47	3398390		Knob, Water Temperature (for Designer White Model)		Appelez-nous	-
49	WP388326		Screw, Console (panel To Top)   (Replaces: 388326)				$ 7.30
50	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 7.04
51	3357995		Cap, End (r.h.) (for White And Almond Models)		Appelez-nous	-
51	3357997		Cap, End (r.h.) (for Designer White Model)		Appelez-nous	-
55	WP308685		Screw, Hinge Mounting (10-16 X 1/2)   (Replaces: 3357011)			Immediately	$ 7.08
56	WP3357331		Clamp, Drain Hose   (Replaces: 3357331)				$ 6.80
57	3950048		Harness, Wiring (for Detail See Wiring Harness Partts Page)		Appelez-nous	-
