02 - Oven


03 - Control Panel, Lit/optional

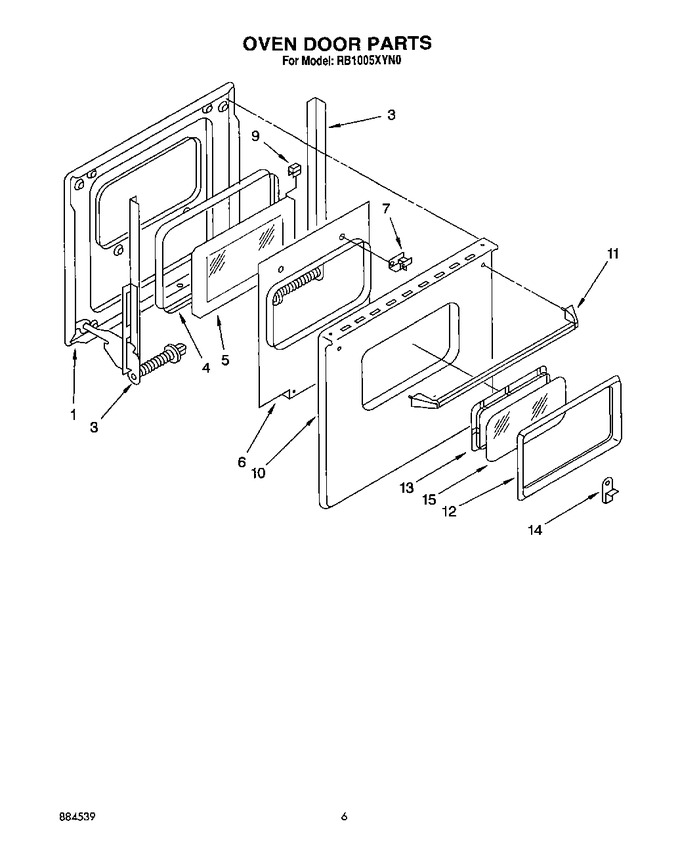

04 - Oven Door


05 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	229364		Washer, Fibre (2)		Appelez-nous	-
1	3172551		Liner, Door 24``		Appelez-nous	-
3	WP681414		Bar, Torsion (screw, 10-16x1/2 (4))   (Replaces: 343641)			Immediately	$ 7.07
3	327741		Bar, Torsion (r.h.)		Appelez-nous	-
3	327742		Bar, Torsion (l.h.)		Appelez-nous	-
3	255280		Bar, Torsion (pushnut (2))		Appelez-nous	-
4	307852		Seal, Window		Appelez-nous	-
5	258989		Glass, Inner 24``		Appelez-nous	-
6	307721		Baffle, Insulation		Appelez-nous	-
7	307748		Screw, 10a X 1/2 (4)		Appelez-nous	-
7	3170094		Spacer (4)		Appelez-nous	-
9	312783		Channel, Rubber (4)		Appelez-nous	-
10	311658		Panel, Oven Door (almond)		Appelez-nous	-
10	311662		Panel, Oven Door (white)		Appelez-nous	-
11	WP308499		Palnut (2)   (Replaces: 308499)				$ 6.26
11	311567		Handle, Oven Door		Appelez-nous	-
11	258093		Nut, Snap-in (2)		Appelez-nous	-
12	3149276		Frame, Window		Appelez-nous	-
13	307793		Retainer, Glass		Appelez-nous	-
14	307731		Clip, Frame (2)		Appelez-nous	-
15	313045		Screw, 7-19 X 3/8 (8)		Appelez-nous	-
15	307733		Glass, Outer		Appelez-nous	-
15	309133		Screw, 8-a X 5/8 (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
