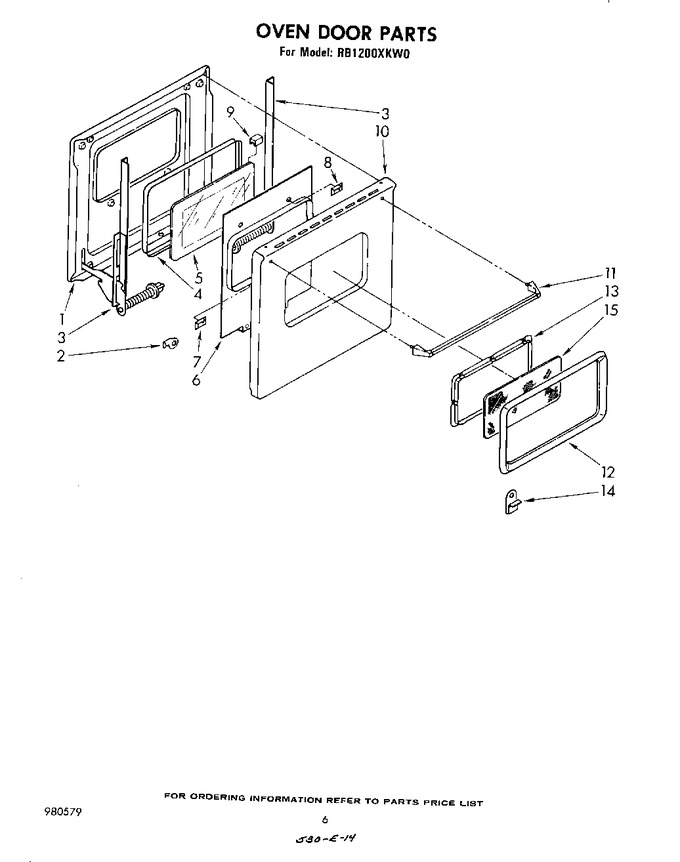

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	229364		Washer, Fiber		Appelez-nous	-
1	328116		Liner, Door		Appelez-nous	-
1	311056		Screw (8)		Appelez-nous	-
1	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 309158)			Immediately	$ 9.65
2	270974		Door Stop Replacement Kit		Appelez-nous	-
3	WP681414		Bar, Torsion (screw, 10-16x1/2 (4))   (Replaces: 343641)			Immediately	$ 7.07
3	255280		Bar, Torsion (pushnut (2))		Appelez-nous	-
3	327742		Bar, Torsion (l.h.)		Appelez-nous	-
3	327741		Bar, Torsion (r.h.)		Appelez-nous	-
4	307852		Seal, Window		Appelez-nous	-
5	258989		Glass, Inner 24``		Appelez-nous	-
6	307721		Baffle, Insulation		Appelez-nous	-
7	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
7	258990		Spacer, Baffle (2)		Appelez-nous	-
8	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
8	258990		Spacer, Baffle (2)		Appelez-nous	-
9	312783		Bumper, Oven Door		Appelez-nous	-
10	311660		Panel, Oven Door (new Avocado)		Appelez-nous	-
10	311662		Panel, Oven Door (white)		Appelez-nous	-
10	254217		Panel, Oven Door (screw, 10a X 3/8 (2))		Appelez-nous	-
10	313174		Panel, Oven Door (platinum)		Appelez-nous	-
10	313173		Panel, Oven Door (toast)		Appelez-nous	-
10	311658		Panel, Oven Door (almond)		Appelez-nous	-
10	311659		Panel, Oven Door (coffee)		Appelez-nous	-
10	311661		Panel, Oven Door (harvest Gold)		Appelez-nous	-
11	258093		Nut, Snap-in (2)		Appelez-nous	-
11	WP308499		Palnut (2)   (Replaces: 308499)				$ 6.26
11	311565		Handle, Oven Door		Appelez-nous	-
12	311663		Frame, Window		Appelez-nous	-
13	307793		Retainer, Glass		Appelez-nous	-
14	307731		Clip, Frame (2)		Appelez-nous	-
15	309133		Screw, 8-a X 5/8 (2)		Appelez-nous	-
15	307733		Glass, Outer 24``		Appelez-nous	-
15	313045		Screw, 7-19 X 3/8 (8)		Appelez-nous	-
