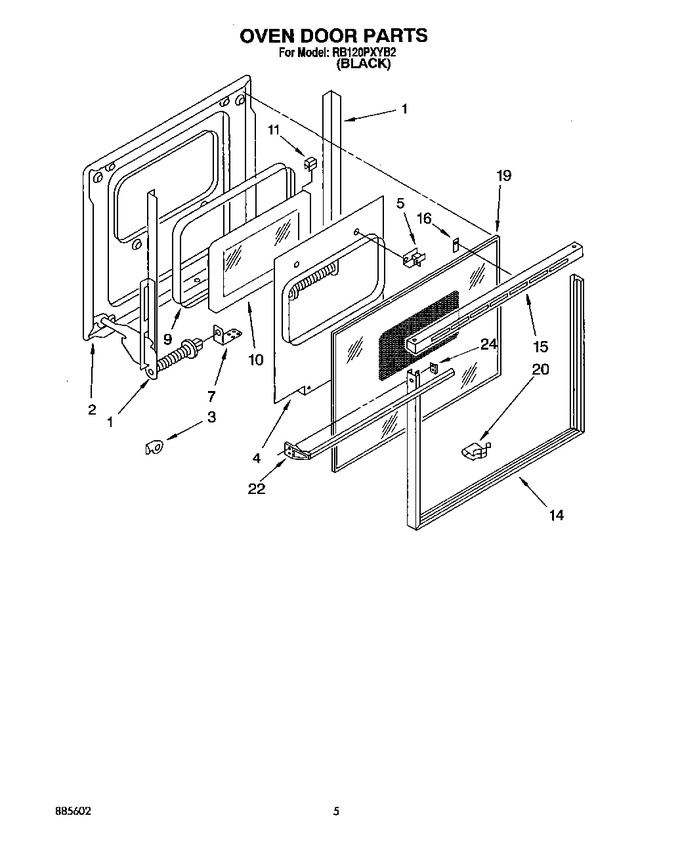

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Bar, Torsion (screw, 10-16x1/2 (4))   (Replaces: 343641)			Immediately	$ 7.07
1	327741		Bar, Torsion (r.h.)		Appelez-nous	-
1	327742		Bar, Torsion (l.h.)		Appelez-nous	-
1	255280		Bar, Torsion (pushnut (2))		Appelez-nous	-
2	328116		Liner, Door 24``		Appelez-nous	-
2	3148905		Washer		Appelez-nous	-
2	254217		Screw, 10a X 3/8 (2)		Appelez-nous	-
2	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
2	258093		Nut, Snap-in (2)		Appelez-nous	-
2	311056		Screw (8)		Appelez-nous	-
3	252138		Stop, Door (right Hand)		Appelez-nous	-
3	252139		Stop, Door (l.h.)		Appelez-nous	-
4	258991		Baffle		Appelez-nous	-
5	312783		Spacer (4)		Appelez-nous	-
5	307748		Screw, 10a X 1/2 (4)		Appelez-nous	-
7	258921		Support, Torsion Bar (2)		Appelez-nous	-
7	WP488627		Screw, 8a X 1/2 (2)   (Replaces: 338156)				$ 6.81
9	307852		Seal, Window		Appelez-nous	-
10	258989		Glass, Inner		Appelez-nous	-
11	3170094		Bumper (4)		Appelez-nous	-
14	311459		Frame, Door		Appelez-nous	-
15	WP90296		Clip (2)   (Replaces: 90296)				$ 7.07
15	311460		Top, Door Frame		Appelez-nous	-
16	310705		Hold-down, Glass		Appelez-nous	-
19	311589		Glass, Outer		Appelez-nous	-
20	310706		Clip, Glass (7)		Appelez-nous	-
22	312725		Handle, Door		Appelez-nous	-
22	WP912618		Screw (4)   (Replaces: 308541)				$ 6.98
24	311506		Clip (2)		Appelez-nous	-
