01 - Oven
02 - Control Panel, Lit/optional
03 - Oven Door

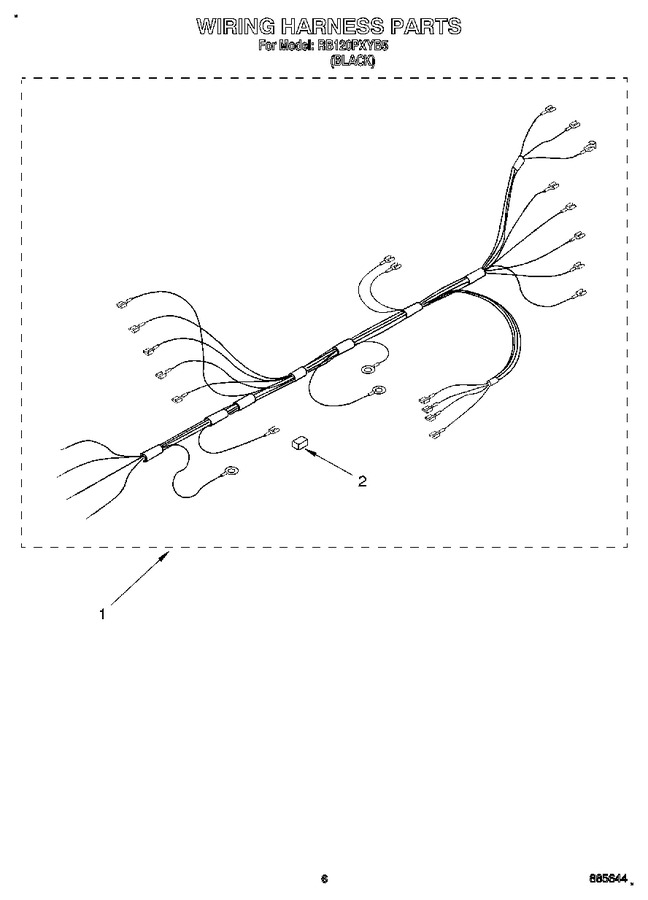

04 - Wiring Harness
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3185946 | Harness, Wire (main) |
|
- | |||||
| 1 | 166681 | Screw |
|
- | |||||
| 1 | WP308685 | Screw (Replaces: 253549) |
|
Immediately | $ 7.08 | ||||
| 2 | 307772 | Receptacle, Housing |
|
- | |||||
| 2 | 166681 | Screw |
|
- | |||||
| 2 | 309133 | Screw |
|
- | |||||
| 2 | 3150532 | Screw |
|
- | |||||
| 2 | WP965173 | Screw, (Replaces: 246132) |
|
Immediately | $ 9.65 |
