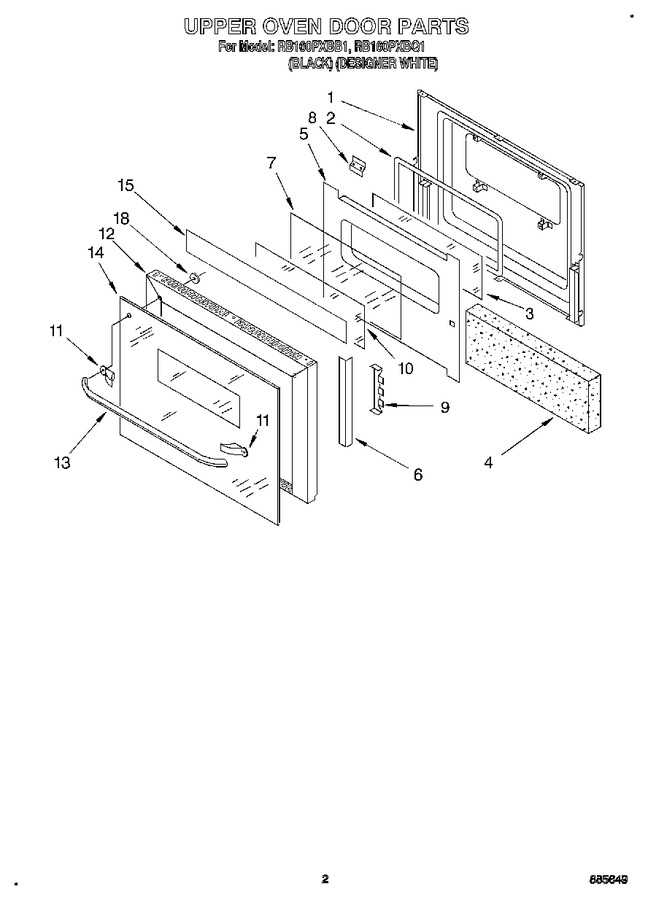

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3185499		Liner, Door		Appelez-nous	-
1	3178001		Screw, Black (2)		Appelez-nous	-
2	3185462		Seal, Window		Appelez-nous	-
3	3185457		Glass, Clear		Appelez-nous	-
4	3185460		Insulation, Door		Appelez-nous	-
5	4168863		Screw		Appelez-nous	-
5	3188815		Retainer, Insulation		Appelez-nous	-
6	4173601		Screw		Appelez-nous	-
6	3178001		Screw		Appelez-nous	-
6	3188635		Foil-adhesive Backed (2)		Appelez-nous	-
7	3185458		Glass, Reflective		Appelez-nous	-
8	3185647		Screw		Appelez-nous	-
8	3185438		Latch, Strike		Appelez-nous	-
9	3185439		Retainer, Glass		Appelez-nous	-
10	3185459		Glass, Clear		Appelez-nous	-
10	3185647		Screw		Appelez-nous	-
11	814281		Spacer, Door Handle (white Model)		Appelez-nous	-
11	814282		Spacer, Door Handle (black Model)		Appelez-nous	-
12	3187851		Frame, Door (black Model)		Appelez-nous	-
12	3187853		Frame, Door (white Model)		Appelez-nous	-
13	3188405		Handle, Door (screw)		Appelez-nous	-
13	3187945		Handle, Door (black Model)		Appelez-nous	-
13	3187943		Handle, Door (white Model)		Appelez-nous	-
14	3187869		Glass, Door (black Model)		Appelez-nous	-
14	3187871		Glass, Door (white Model)		Appelez-nous	-
15	3188634		Foil-adhesive Backed		Appelez-nous	-
18	3184042		Screw		Appelez-nous	-
18	3188599		Bushing, Door Handle		Appelez-nous	-
