Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3185561 Liner, Oven Appelez-nous -
2 WP660579 Element, Broil   (Replaces: 660579) Special Order $ 140.80

3 4396923 Grill, Broiler   (Replaces: 3147563) In-Stock Immediately $ 52.04

4 4396923 Pan, Broiler   (Replaces: 3147845) In-Stock Immediately $ 52.04

5 3185369 Rack, Offset Appelez-nous -
6 3185370 Rack, Oven Appelez-nous -
7 WP661416 Element, Bake   (Replaces: 661416) Special Order $ 131.33

7 3185648 Screw (2) Appelez-nous -
8 3182950 Bracket, Element Appelez-nous -
8 3185648 Screw (4) Appelez-nous -
9 3148440 Sensor, Heat Appelez-nous -
9 3185648 Screw (2) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

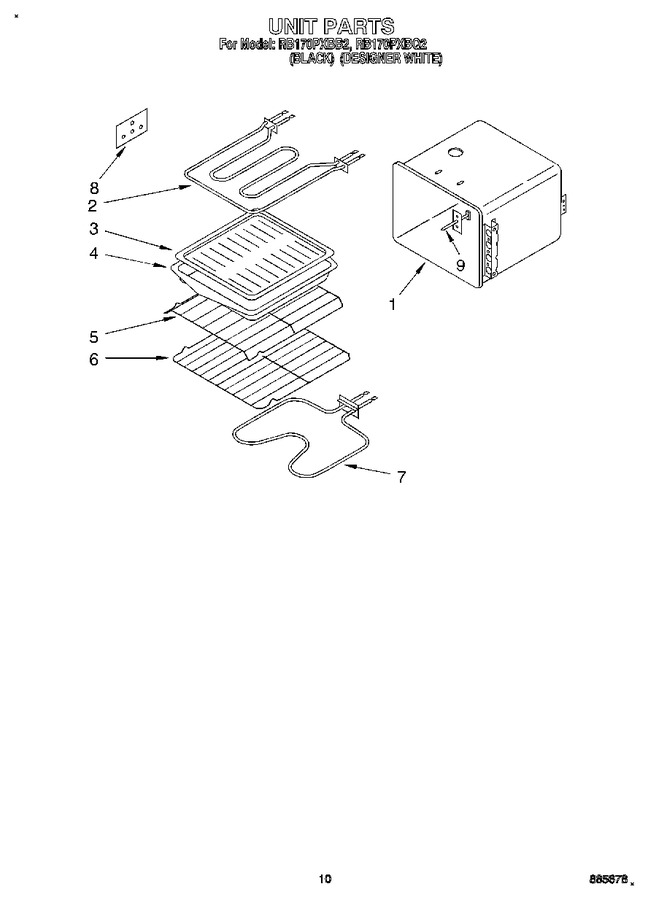

Diagram for RB170PXBQ2
