01 - Control Panel, Literature


02 - Upper Oven


03 - Lower Oven

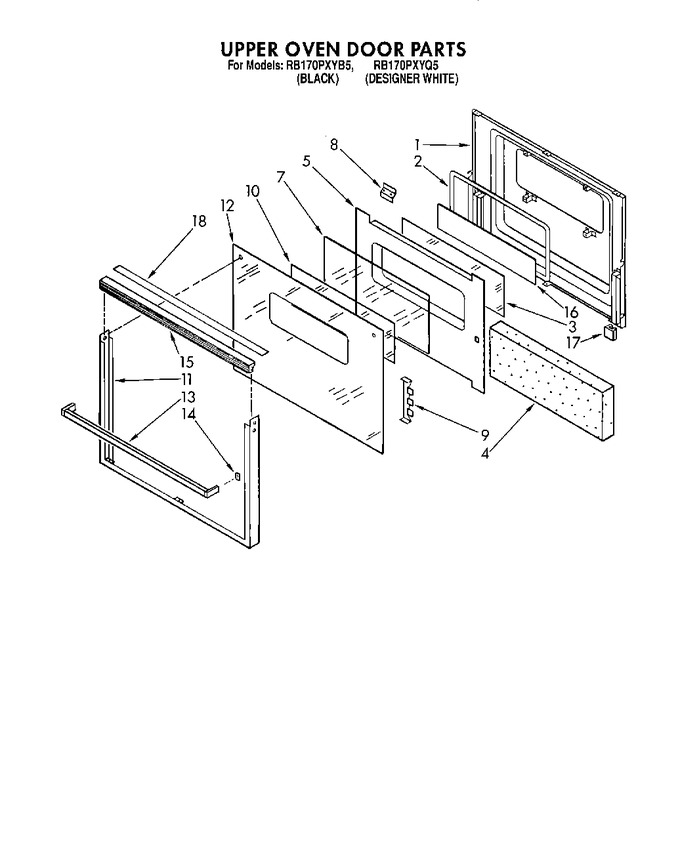

04 - Upper Oven Door


05 - Lower Oven Door


06 - Component Shelf And Latch


07 - Unit


08 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3178001		Screw, Black (2)		Appelez-nous	-
1	3185499		Liner, Door		Appelez-nous	-
2	3185462		Seal, Window		Appelez-nous	-
3	3185457		Glass, Clear		Appelez-nous	-
4	3185460		Insulation, Door		Appelez-nous	-
5	4173601		Screw		Appelez-nous	-
5	3185437		Retainer, Insulation		Appelez-nous	-
7	3185458		Glass, Reflective		Appelez-nous	-
8	3185438		Latch, Strike		Appelez-nous	-
9	3185439		Retainer, Glass		Appelez-nous	-
9	3148443		Screw		Appelez-nous	-
10	3185459		Glass, Clear		Appelez-nous	-
11	3180606		Frame, Door		Appelez-nous	-
12	3179499		Glass, Door (white Model)		Appelez-nous	-
12	3179497		Glass, Door (black Model)		Appelez-nous	-
13	3179482		Handle, Door (black Model)		Appelez-nous	-
13	WP355515		Handle, Door (screw)   (Replaces: 355515)				$ 6.90
13	3179484		Handle, Door (white Model)		Appelez-nous	-
14	3148282		Clip, Mounting				$ 8.69
15	3185528		Trim, Door (white)		Appelez-nous	-
15	3185526		Trim, Door (black)		Appelez-nous	-
16	3185473		Foil, Adhesive		Appelez-nous	-
17	3181701		Bumper, Door Glass		Appelez-nous	-
18	3181365		Cap, Top (white Model)		Appelez-nous	-
