Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	329687		Liner, Door		Appelez-nous	-
1	311056		Screw, (4)		Appelez-nous	-
1	312223		Pin, Wedge (2)		Appelez-nous	-
1	311896		Pushnut (2)		Appelez-nous	-
1	WP488627		Screw, 8a X 1/2 (2)   (Replaces: 338156)				$ 6.81
2	258711		Seal, Glass		Appelez-nous	-
3	258988		Glass, Inner		Appelez-nous	-
4	WP488729		Screw, 8a X 1/2 (2)   (Replaces: 3148107)			Immediately	$ 7.01
4	309137		Spacer, Door (2)		Appelez-nous	-
6	307924		Baffle, Insulation		Appelez-nous	-
7	258990		Spacer, Baffle (2)		Appelez-nous	-
7	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
8	312783		Cushion, Door (2)		Appelez-nous	-
9	WP488729		Screw, 8a X 1/2 (2)   (Replaces: 3148107)			Immediately	$ 7.01
9	258990		Spacer, Baffle (2)		Appelez-nous	-
11	307888		Panel, Oven Door (white)		Appelez-nous	-
11	309133		Panel, Oven Door (screw, 8a X 5/8 (2))		Appelez-nous	-
11	307896		Panel, Oven Door (almond)		Appelez-nous	-
12	311563		Handle, Oven Door				$ 103.11
13	WP308499		Palnut, Handle (2)   (Replaces: 308499)				$ 6.26
14	309173		Window, Frame 30`` Small		Appelez-nous	-
15	307792		Glass Retainer		Appelez-nous	-
16	307731		Clip, Frame		Appelez-nous	-
17	313045		Screw, 7-19 X 3/8 (8)		Appelez-nous	-
17	307732		Glass, Outer		Appelez-nous	-
18	3170094		Spacer (4)		Appelez-nous	-

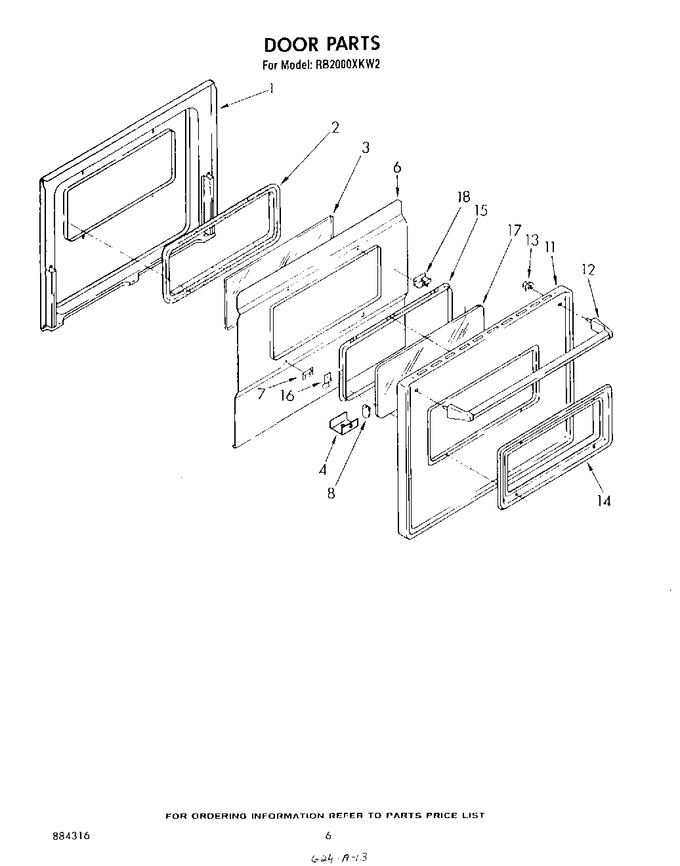

    View Diagram in Separate Window       Print Part List
