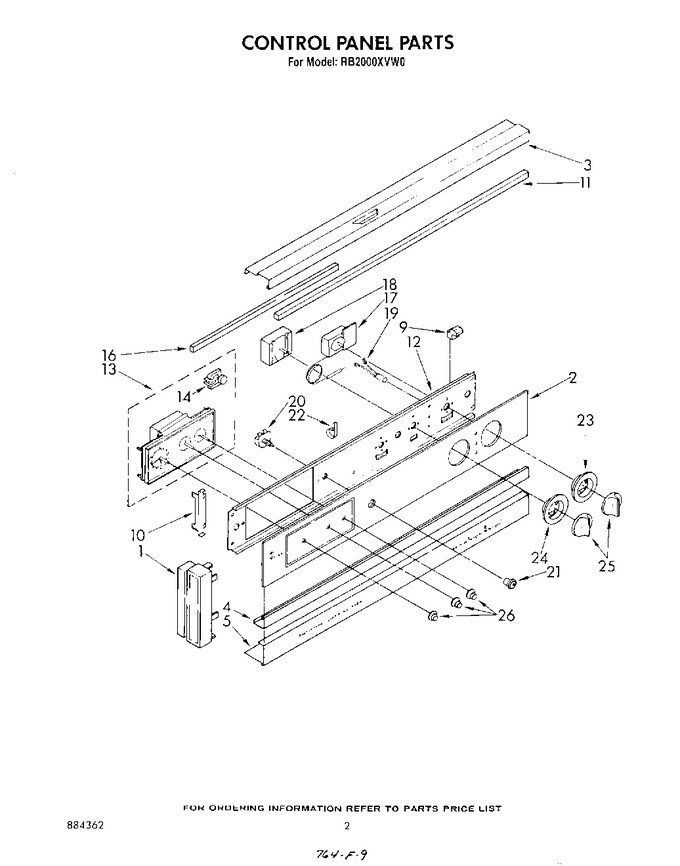

02 - Control Panel , Literature And Optional
03 - Oven
04 - Door
05 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3148622 | End Cap (r.h.) |
|
- | |||||
| 1 | 3148621 | End Cap. L.h. |
|
- | |||||
| 1 | WP488627 | End Cap (screw (4)) (Replaces: 342055) |
|
$ 6.81 | |||||
| 2 | 3148632 | Glass, Control Panel |
|
- | |||||
| 3 | WP488627 | Screw (2) (Replaces: 342055) |
|
$ 6.81 | |||||
| 3 | 3148624 | Rail, Top |
|
- | |||||
| 4 | 3148627 | Trim, Center |
|
- | |||||
| 5 | 3148629 | Rail, Bottom |
|
- | |||||
| 5 | WP488729 | Screw, 8a X 1/2 (3) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 5 | 342043 | Screw (2) |
|
- | |||||
| 9 | 310823 | Retainer, Glass (4) |
|
- | |||||
| 10 | 3148635 | Bracket, Control Panel (2) |
|
- | |||||
| 10 | 98520 | Screw |
|
- | |||||
| 11 | 311263 | Seal, Backguard |
|
- | |||||
| 12 | 313314 | Bracket, Control |
|
- | |||||
| 13 | 3148053 | Timer, Automatic |
|
- | |||||
| 14 | 309822 | Motor, Timer |
|
- | |||||
| 16 | 313316 | Seal, Backguard |
|
- | |||||
| 17 | 660564 | Thermostat, Oven |
|
- | |||||
| 17 | 311495 | Thermostat, Oven (alt.) |
|
- | |||||
| 17 | 310861 | Thermostat, Oven (alt.) |
|
- | |||||
| 18 | 155023 | Screw, 8-32 X 1/2 |
|
Immediately | $ 7.91 | ||||
| 18 | 310866 | Selector Switch |
|
- | |||||
| 19 | 311802 | Light, Indicator Oven |
|
- | |||||
| 20 | 312796 | Lockwasher |
|
- | |||||
| 20 | WP965173 | Screw, 8a X 3/8 (4) (Replaces: 246132) |
|
Immediately | $ 9.65 | ||||
| 20 | 312581 | Switch, Oven Light |
|
- | |||||
| 21 | 313030 | Bezel Switch |
|
- | |||||
| 22 | WP965173 | Screw, 8a X 3/8 (Replaces: 246132) |
|
Immediately | $ 9.65 | ||||
| 22 | WP308605 | Strain, Relief (Replaces: 308605) |
|
$ 10.08 | |||||
| 23 | 311065 | Escutcheon, Thermostat |
|
- | |||||
| 24 | 254225 | Screw 8bt X 1/4 (2) |
|
- | |||||
| 24 | WP311069 | Escutcheon, Selector Switch (Replaces: 311069) |
|
$ 50.22 | |||||
| 25 | WP3150371 | Knob, Control (2) (Replaces: 310834) |
|
$ 19.40 | |||||
| 26 | WPW10208653 | Insulation, Fiberglass (1-1/2`` X 24`` X 120``) (Replaces: 261514) |
|
Immediately | $ 49.92 | ||||
| 26 | 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | |||||
| 26 | 261810 | Touch-up Oven (1 Oz.) |
|
- | |||||
| 26 | 261582 | Grease |
|
- | |||||
| 26 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 26 | WPW10208653 | Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces: 240132) |
|
Immediately | $ 49.92 | ||||
| 26 | 241430 | Foil, Aluminum Oven (18`` X 25`) |
|
$ 20.65 | |||||
| 26 | 242985 | Rotisserie Kit |
|
- | |||||
| 26 | 330206 | Knob, Timer (3) |
|
- | |||||
| 26 | 313311 | Spring, Knob |
|
- | |||||
| 26 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 26 | 242821 | Wire (14 Ga. 150 C Blue) |
|
- | |||||
| 26 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 26 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 26 | 242823 | Wire (14 Ga. 150 C Green) |
|
- | |||||
| 26 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| 26 | 242829 | Wire, Red 12 Ga. 150~c |
|
- | |||||
| 26 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 26 | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | |||||
| 26 | 242826 | Wire, White 14 Ga. 150~c |
|
- | |||||
| 26 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 487384 | Screw, 6-32 X 1/4 (2) |
|
- | ||||||
| LIT313358 | Book, Cooking Guide |
|
- | ||||||
| LIT3148314 | Guide, Use & Care |
|
- | ||||||
| LIT311434 | Instructions, Installation |
|
- | ||||||
| LIT884362 | List, Repair Parts |
|
- |
