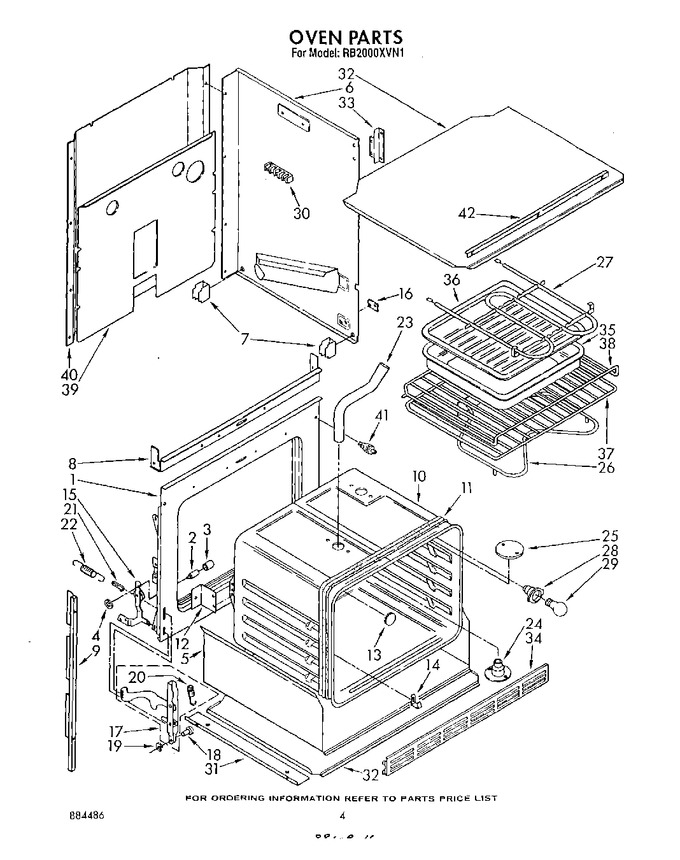

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3172204		Frame, Front		Appelez-nous	-
2	307985		Pin, Hinge Ear (2)				$ 29.54
3	309111		Snubber, Door (2)		Appelez-nous	-
4	308306		Pushnut (2)		Appelez-nous	-
5	310770		Insulation Tray		Appelez-nous	-
6	311008		Side Wrapper (l.h.)		Appelez-nous	-
6	WP488729		Side Wrapper (screw, 8a X 1/2 (14))   (Replaces: 3148107)			Immediately	$ 7.01
6	311005		Side Wrapper (r.h.)		Appelez-nous	-
7	WP488729		Screw, 8a X 1/2 (4)   (Replaces: 3148107)			Immediately	$ 7.01
7	311774		Support, Side Wrapper (4)		Appelez-nous	-
8	310693		Baffle, Top Insulation		Appelez-nous	-
9	310689		Side Trim (r.h.)		Appelez-nous	-
9	310685		Side Trim L.h.		Appelez-nous	-
9	WP488729		Side Trim (screw, 8a X 1/2 (6))   (Replaces: 3148107)			Immediately	$ 7.01
10	3172451		Oven (30`` Conventional)		Appelez-nous	-
10	311056		Screw (3)		Appelez-nous	-
11	309107		Heat Seal				$ 63.50
12	310713		Bracket, Oven Mounting		Appelez-nous	-
12	WP681414		Screw, 10-16 X 1/2 (6)   (Replaces: 343641)			Immediately	$ 7.07
13	257314		Plug Button		Appelez-nous	-
14	98005642		Clip, Thermostat Bulb (2)   (Replaces: 313382)			Immediately	$ 74.64
15	328801		Hinge Ear, R.h.		Appelez-nous	-
15	328802		Hinge Ear, L.h.		Appelez-nous	-
16	310659		Plate, Side Panel (2)		Appelez-nous	-
16	WP308544		Screw, 10-24 X 1/2 (4)   (Replaces: 308544)			Immediately	$ 6.98
17	329714		Channel Arm (2)		Appelez-nous	-
18	WP307986		Pin, Hinge (2)   (Replaces: 307986)				$ 11.78
19	307594		Ring, Retainer (2)		Appelez-nous	-
20	311092		Spring, Door Stop (2)		Appelez-nous	-
21	WP308125		Anchor, Spring (2)   (Replaces: 311897)				$ 10.94
22	308127		Spring, Oven Door (2)				$ 11.75
23	310836		Vent Extension		Appelez-nous	-
24	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
24	310840		Eliminator, Smoke		Appelez-nous	-
24	WP488729		Screw, 8a X 1/2 (2)   (Replaces: 3148107)			Immediately	$ 7.01
25	WP488729		Screw, 8a X 1/2 (2)   (Replaces: 3148107)			Immediately	$ 7.01
25	310662		Plate, Cover		Appelez-nous	-
26	WP308180		Unit, Bake 308180 (alt.) 313827 (alt.)   (Replaces: 661170)				$ 96.92
26	3150532		Screw, 10-32 X 5/8 (2)		Appelez-nous	-
27	WP660579		Unit, Broil 311714 (alt.) 311713 (alt.)   (Replaces: 660579)				$ 140.80
27	3150532		Screw, 10-32 X 5/8 (4)		Appelez-nous	-
28	308043		Screw, 10-12 X 7/8 (2)		Appelez-nous	-
28	660556		Socket, Oven Light 307856 (alt.) 310208 (alt.)		Appelez-nous	-
29	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
30	WP112432		Nut, (3)   (Replaces: 112432)				$ 7.16
30	WP8203546		Terminal Block   (Replaces: 258076)			Immediately	$ 27.12
31	311592		Angle, Support (2)		Appelez-nous	-
32	310458		Top & Bottom Cover (2)		Appelez-nous	-
32	WP488729		Screw, 8a X 1/2 (8)   (Replaces: 3148107)			Immediately	$ 7.01
33	310719		Bracket, Control Panel Mounting (2)		Appelez-nous	-
33	307748		Screw (2)		Appelez-nous	-
33	WP488627		Screw (4)   (Replaces: 342055)				$ 6.81
33	WP488729		Screw, 8a X 1/2 (4)   (Replaces: 3148107)			Immediately	$ 7.01
34	309029		Screw, 8-15 X 1/2 (3)		Appelez-nous	-
34	310668		Bottom Grill				$ 556.11
35	4396923		Pan, Broiler   (Replaces: 3147845)			Immediately	$ 52.04
36	4396923		Grill, Broiler Pan   (Replaces: 3147563)			Immediately	$ 52.04
37	308173		Rack, Oven		Appelez-nous	-
38	308172		Oven Rack, Offset		Appelez-nous	-
39	WP488729		Screw, 8a X 1/2 (6)   (Replaces: 3148107)			Immediately	$ 7.01
39	3149542		Back Panel		Appelez-nous	-
40	311011		Cover, Rear		Appelez-nous	-
40	WP488729		Screw, 8a X 1/2 (12)   (Replaces: 3148107)			Immediately	$ 7.01
41	310345		Switch, Door				$ 94.86
41	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 7.07
42	254225		Screw (3)		Appelez-nous	-
42	312029		Bracket, Angle		Appelez-nous	-
