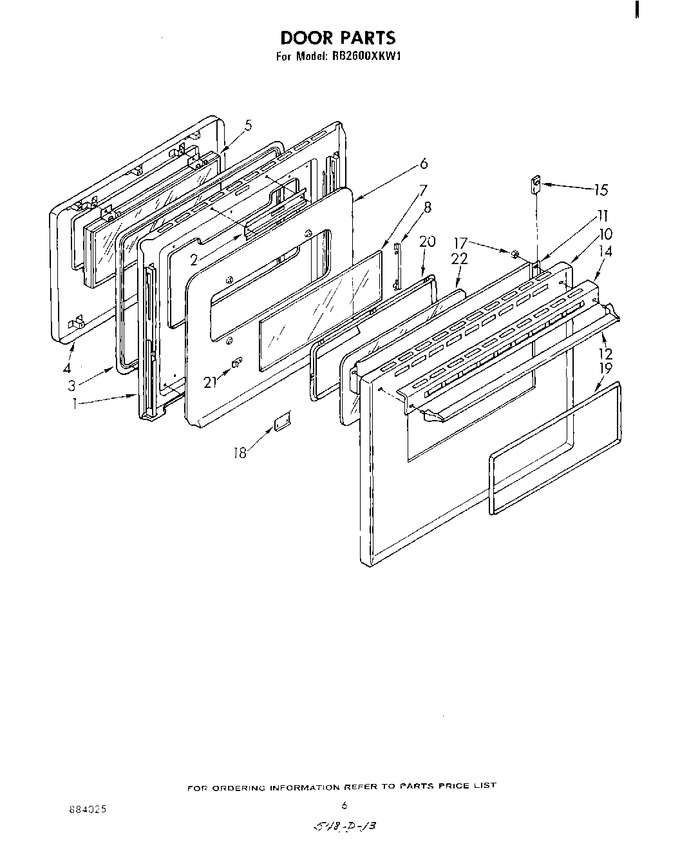

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 311056 | Screw (2) |
|
- | |||||
| 1 | 329694 | Liner, Door |
|
- | |||||
| 1 | 307748 | Screw, 10a X 1/2 (6) |
|
- | |||||
| 1 | 338177 | ``j`` Clip (2) |
|
- | |||||
| 2 | 311054 | Screw (2) |
|
- | |||||
| 2 | 308033 | Channel, Latch |
|
- | |||||
| 3 | 311904 | Seal, Fiberglass |
|
- | |||||
| 4 | 327898 | Panel, Inner |
|
- | |||||
| 5 | 307748 | Screw, 10a X 1/2 (4) |
|
- | |||||
| 5 | 309844 | Window Package |
|
- | |||||
| 6 | 307748 | Screw, 10a X 1/2 (8) |
|
- | |||||
| 6 | 308021 | Retainer, Insulation |
|
- | |||||
| 7 | 309842 | Glass (6.81`` X 18.31``) |
|
- | |||||
| 8 | 309843 | Retainer, Glass |
|
- | |||||
| 10 | 307909 | Panel, Door (white) |
|
- | |||||
| 10 | 309133 | Panel, Door (screw (2)) |
|
- | |||||
| 10 | 313180 | Panel, Door (platinum) |
|
- | |||||
| 10 | 313179 | Panel, Door (toast) |
|
- | |||||
| 10 | 307917 | Panel, Door (almond) |
|
- | |||||
| 10 | 307913 | Panel, Door (coffee) |
|
- | |||||
| 10 | 307911 | Panel, Door (new Avocado) |
|
- | |||||
| 10 | 307915 | Panel, Door (harvest Gold) |
|
- | |||||
| 10 | 312006 | Panel, Door (screw, 8a X 1/2 (2)) |
|
- | |||||
| 10 | 307748 | Panel, Door (screw, 10a X 1/2 (3)) |
|
- | |||||
| 11 | 308011 | Baffle, Top |
|
- | |||||
| 12 | 311564 | Handle, Door |
|
- | |||||
| 14 | 311063 | Trim, Panel |
|
- | |||||
| 14 | 311890 | Clip, Top Trim |
|
- | |||||
| 15 | 309845 | Spacer, Sheet (2) |
|
- | |||||
| 17 | WP308499 | Palnut (2) (Replaces: 308499) |
|
$ 6.26 | |||||
| 18 | 311885 | Shield (2) |
|
- | |||||
| 18 | WP90296 | Pushnut (2) (Replaces: 308593) |
|
$ 7.07 | |||||
| 19 | 309173 | Frame, Window |
|
- | |||||
| 20 | 307792 | Retainer, Glass |
|
- | |||||
| 21 | 307731 | Clip, Frame |
|
- | |||||
| 22 | 884025 | List, Parts |
|
- | |||||
| 22 | WPW10208653 | Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces: 240132) |
|
Immediately | $ 49.92 | ||||
| 22 | 241430 | Foil, Aluminum Oven (18`` X 25`) |
|
$ 20.65 | |||||
| 22 | 242985 | Rotisserie Kit |
|
- | |||||
| 22 | 311948 | Tech Sheet |
|
- | |||||
| 22 | 311434 | Installation Instructions |
|
- | |||||
| 22 | 312493 | Guide, Use & Care |
|
- | |||||
| 22 | 308500 | Book, Cooking Guide |
|
- | |||||
| 22 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 22 | 307732 | Glass, Outer |
|
- | |||||
| 22 | 313045 | Screw, 7-19 X 3/8 (8) |
|
- | |||||
| 22 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 22 | 242821 | Wire (14 Ga. 150 C Blue) |
|
- | |||||
| 22 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 22 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 22 | 242823 | Wire (14 Ga. 150 C Green) |
|
- | |||||
| 22 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| 22 | 242829 | Wire, Red 12 Ga. 150~c |
|
- | |||||
| 22 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 22 | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | |||||
| 22 | 242826 | Wire, White 14 Ga. 150~c |
|
- | |||||
| 22 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 22 | 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | |||||
| 22 | 261810 | Touch-up Oven (1 Oz.) |
|
- | |||||
| 22 | 261582 | Grease |
|
- | |||||
| 22 | WPW10208653 | Insulation, Fiberglass (1-1/2`` X 24`` X 120``) (Replaces: 261514) |
|
Immediately | $ 49.92 |
