SELECT A DIAGRAM

02 - Control Panel , Literature And Optional


03 - Oven


04 - Door


05 - Wiring Harness

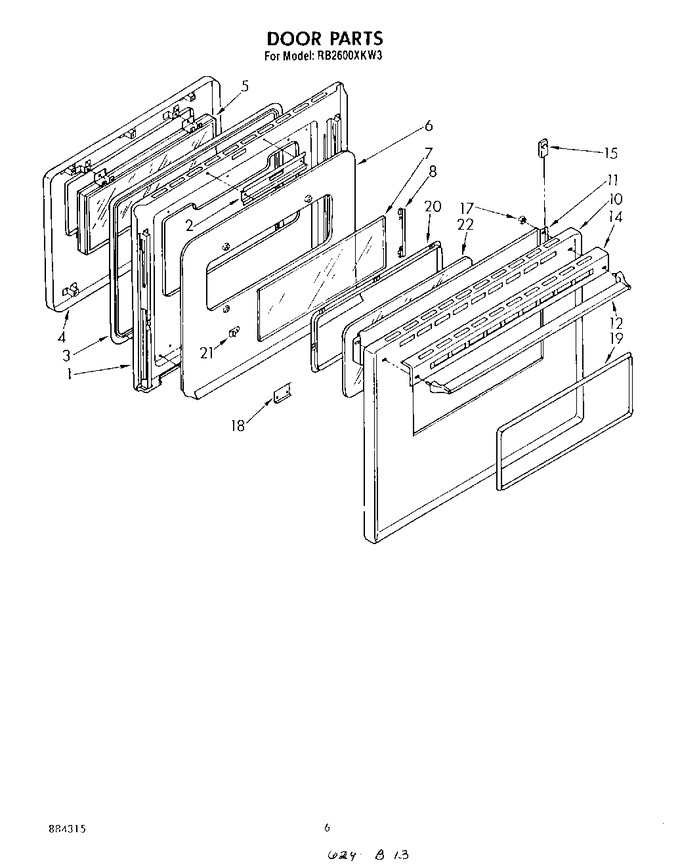

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	329694		Liner, Door		Appelez-nous	-
1	307748		Screw, 10a X 1/2 (6)		Appelez-nous	-
1	311056		Screw (2)		Appelez-nous	-
2	308033		Channel, Latch		Appelez-nous	-
2	311054		Screw (2)		Appelez-nous	-
3	311904		Seal, Fiberglass		Appelez-nous	-
4	327898		Panel, Inner		Appelez-nous	-
5	307748		Screw, 10a X 1/2 (4)		Appelez-nous	-
5	330038		Window Package		Appelez-nous	-
6	307748		Screw, 10a X 1/2 (8)		Appelez-nous	-
6	308021		Retainer, Insulation		Appelez-nous	-
7	309842		Glass (6.81`` X 18.31``)		Appelez-nous	-
8	309843		Retainer, Glass		Appelez-nous	-
10	309133		Panel, Door (screw (2))		Appelez-nous	-
10	307909		Panel, Door (white)		Appelez-nous	-
10	307917		Panel, Door (almond)		Appelez-nous	-
10	312006		Panel, Door (screw, 8a X 1/2 (2))		Appelez-nous	-
10	307748		Panel, Door (screw, 10a X 1/2 (3))		Appelez-nous	-
11	WP90296		Clip (2)   (Replaces: 90296)				$ 7.07
11	308011		Baffle, Top		Appelez-nous	-
12	311563		Handle, Door				$ 103.11
14	311890		Clip, Top Trim		Appelez-nous	-
14	311063		Trim, Panel		Appelez-nous	-
15	309845		Spacer, Sheet (2)		Appelez-nous	-
17	WP308499		Palnut (2)   (Replaces: 308499)				$ 6.26
18	311885		Shield (2)		Appelez-nous	-
19	309173		Frame, Window		Appelez-nous	-
20	307792		Retainer, Glass		Appelez-nous	-
21	307731		Clip, Frame		Appelez-nous	-
22	313045		Screw, 7-19 X 3/8 (8)		Appelez-nous	-
22	307732		Glass, Outer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
