SELECT A DIAGRAM

01 - Control Panel, Literature


02 - Oven

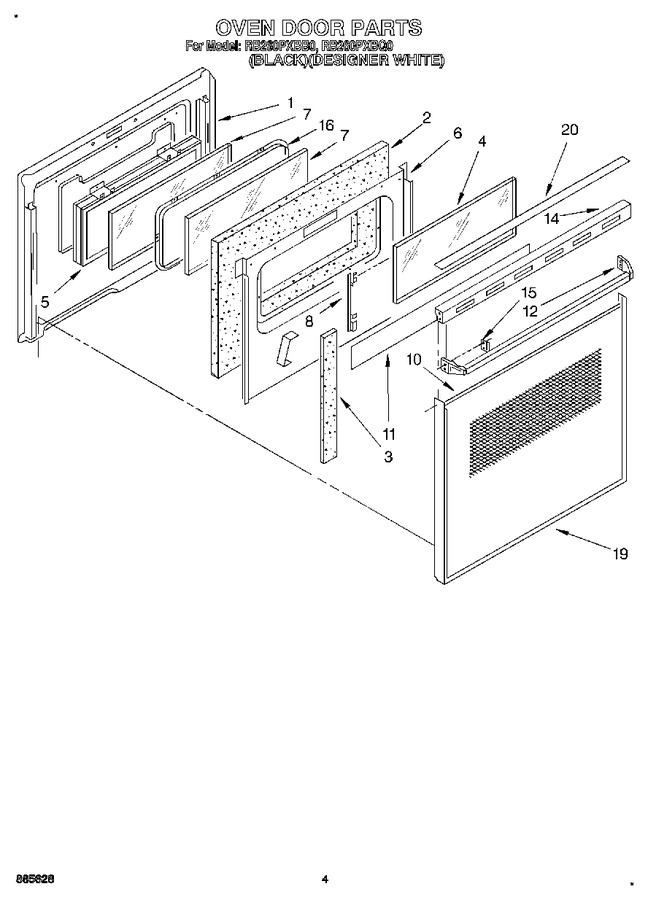

03 - Oven Door


04 - Wiring Harness, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	311056		Screw (2)		Appelez-nous	-
1	3172218		Liner, Door		Appelez-nous	-
2	3147951		Insulation, Door		Appelez-nous	-
3	3148441		Seal, Flange (2)		Appelez-nous	-
4	3169202		Glass, Clear		Appelez-nous	-
5	3148183		Seal, Window				$ 7.41
6	4173601		Screw (4)		Appelez-nous	-
6	3148159		Retainer, Insulation		Appelez-nous	-
7	WP3169203		Glass, Inner And Outer   (Replaces: 3169203)				$ 135.71
8	3188553		Retainer, Glass (2)		Appelez-nous	-
8	3185647		Screw (4)		Appelez-nous	-
10	3188054		Glass, Panel (black)		Appelez-nous	-
10	3188053		Glass, Panel (white Model)		Appelez-nous	-
11	3188706		Foil, Door		Appelez-nous	-
12	3187940		Handle, Door (black)				$ 107.32
12	3187941		Handle, Door (white)				$ 0.01
12	WP355515		Handle, Door (screw (4))   (Replaces: 355515)				$ 6.90
14	3149355		Top, Door (white)		Appelez-nous	-
14	3182345		Top, Door (screw (5))		Appelez-nous	-
14	3148223		Top, Door (black)		Appelez-nous	-
15	3149333		Screw				$ 5.33
15	3149253		Screw		Appelez-nous	-
15	3148282		Clip, Mtg (2)				$ 8.69
16	3148234		Frame, Inner Glass		Appelez-nous	-
16	3185647		Screw (6)		Appelez-nous	-
19	3171530		Frame, Door (black Model)		Appelez-nous	-
19	3187920		Frame, Door (white Model)		Appelez-nous	-
20	3181367		Cap, Top (white Model)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
