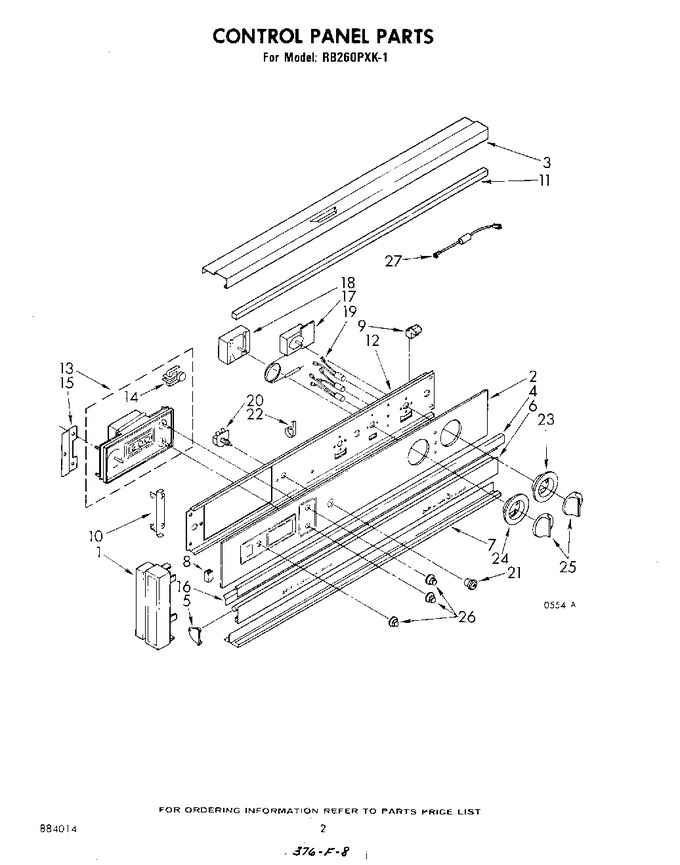

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 310828 | End Cap (l.h.) |
|
- | |||||
| 1 | 310829 | End Cap (r.h.) |
|
- | |||||
| 1 | 342043 | Screw (2) |
|
- | |||||
| 2 | WPY312527 | Control Panel, Glass (Replaces: 312527) |
|
Immediately | $ 10.01 | ||||
| 3 | 310824 | Rail, Top |
|
- | |||||
| 3 | WP488627 | Screw (2) (Replaces: 342055) |
|
$ 6.81 | |||||
| 4 | 311188 | Trim, Center |
|
- | |||||
| 5 | 310832 | End Trim, Vent (left Side) |
|
- | |||||
| 5 | 310833 | End Trim, Vent (right Side) |
|
- | |||||
| 6 | WP965173 | Screw, 8a X 3/8 (Replaces: 246132) |
|
Immediately | $ 9.65 | ||||
| 6 | 312447 | Door, Vent |
|
- | |||||
| 7 | 342043 | Screw (4) |
|
- | |||||
| 7 | 311190 | Trim, Bottom |
|
- | |||||
| 8 | 310842 | Channel, Rubber (2) |
|
- | |||||
| 9 | 310823 | Retainer, Glass (4) |
|
- | |||||
| 10 | 98520 | Screw |
|
- | |||||
| 10 | 310720 | Bracket, Control Panel (2) |
|
- | |||||
| 11 | 311263 | Seal, Backguard |
|
- | |||||
| 12 | 310727 | Bracket, Control |
|
- | |||||
| 13 | 310325 | Timer, Digital (included No.14) |
|
- | |||||
| 13 | WP965173 | Screw, 8a X 3/8 (2) (Replaces: 246132) |
|
Immediately | $ 9.65 | ||||
| 13 | 308846 | Palnut, Timer 10-32 |
|
- | |||||
| 14 | 308594 | Motor, Timer |
|
- | |||||
| 15 | 310721 | Bracket, Timer (2) |
|
- | |||||
| 16 | 255893 | Seal |
|
- | |||||
| 17 | 487384 | Screw, 6-32 X 1/4 (2) |
|
- | |||||
| 17 | 310017 | Thermostat, Oven |
|
- | |||||
| 18 | 155023 | Screw, 8-32 X 1/4 (2) |
|
Immediately | $ 7.91 | ||||
| 18 | 310006 | Selector Switch |
|
- | |||||
| 19 | 311802 | Light Indicator Oven, Lock & Clean (3) |
|
- | |||||
| 20 | 312581 | Switch, Oven Light |
|
- | |||||
| 20 | 255912 | Nut, Hex 3/8 |
|
- | |||||
| 20 | WP965173 | Screw, 8a X 3/8 (4) (Replaces: 246132) |
|
Immediately | $ 9.65 | ||||
| 21 | 308784 | Bezel, Switch |
|
- | |||||
| 22 | WP965173 | Screw, 8a X 3/8 (Replaces: 246132) |
|
Immediately | $ 9.65 | ||||
| 22 | WP308605 | Strain, Relief (Replaces: 308605) |
|
$ 10.08 | |||||
| 23 | 311066 | Escutcheon, Thermostat |
|
$ 25.00 | |||||
| 24 | 254225 | Screw 8bt X 1/4 (2) |
|
- | |||||
| 24 | WP311068 | Escutcheon, Selector Switch (Replaces: 311068) |
|
$ 49.73 | |||||
| 25 | WP3150371 | Knob, Control (2) (Replaces: 310834) |
|
$ 19.40 | |||||
| 26 | 309553 | Knob, Timer (3) |
|
- | |||||
| 27 | 884014 | List, Parts |
|
- | |||||
| 27 | 242757 | Touch-up Self-clean (1 Oz.) |
|
- | |||||
| 27 | 261582 | Grease |
|
- | |||||
| 27 | WPW10208653 | Insulation, Fiberglass (1-1/2`` X 24`` X 120``) (Replaces: 261514) |
|
Immediately | $ 49.92 | ||||
| 27 | WPW10208653 | Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces: 240132) |
|
Immediately | $ 49.92 | ||||
| 27 | 241430 | Foil, Aluminum Oven (18`` X 25`) |
|
$ 20.65 | |||||
| 27 | 261881 | Rotisserie Kit |
|
- | |||||
| 27 | 313870 | Tech Sheet |
|
- | |||||
| 27 | 311434 | Installation Instructions |
|
- | |||||
| 27 | 312493 | Guide, Use & Care |
|
- | |||||
| 27 | 308500 | Book, Cooking Guide |
|
- | |||||
| 27 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 27 | 328891 | Resistor & Terminal Assembly |
|
- | |||||
| 27 | 98655 | Terminal |
|
- | |||||
| 27 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 27 | 242821 | Wire (14 Ga. 150 C Blue) |
|
- | |||||
| 27 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 27 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 27 | 242823 | Wire (14 Ga. 150 C Green) |
|
- | |||||
| 27 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| 27 | 242829 | Wire, Red 12 Ga. 150~c |
|
- | |||||
| 27 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 27 | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | |||||
| 27 | 242826 | Wire, White 14 Ga. 150~c |
|
- | |||||
| 27 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 27 | 242832 | Wire, Yellow 14 Ga. 200~c |
|
- |
