SELECT A DIAGRAM

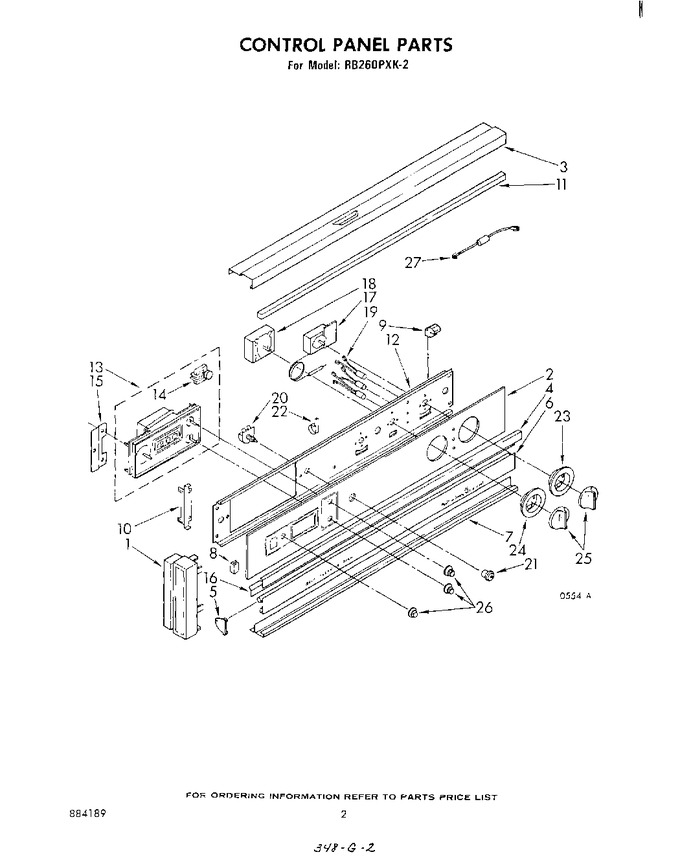

02 - Control Panel, Literature And Optional


03 - Oven


04 - Door


05 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	342043		Screw (2)		Appelez-nous	-
1	310829		End Cap (r.h.)		Appelez-nous	-
1	310828		End Cap (l.h.)		Appelez-nous	-
2	313884		Control Panel, Glass		Appelez-nous	-
3	310824		Rail, Top		Appelez-nous	-
3	WP488627		Screw (2)   (Replaces: 342055)				$ 6.81
4	311188		Trim, Center		Appelez-nous	-
5	310832		End Trim, Vent (left Side)		Appelez-nous	-
5	310833		End Trim, Vent (right Side)		Appelez-nous	-
6	WP965173		Screw, 8a X 3/8   (Replaces: 246132)			Immediately	$ 9.65
6	312447		Door, Vent		Appelez-nous	-
7	342043		Screw (4)		Appelez-nous	-
7	311190		Trim, Bottom		Appelez-nous	-
8	310842		Channel, Rubber (2)		Appelez-nous	-
9	310823		Retainer, Glass (4)		Appelez-nous	-
10	98520		Screw		Appelez-nous	-
10	310720		Bracket, Control Panel (2)		Appelez-nous	-
11	311263		Seal, Backguard		Appelez-nous	-
12	313314		Bracket, Control		Appelez-nous	-
13	313520		Timer, Digital (included No.14)		Appelez-nous	-
13	308846		Palnut, Timer 10-32		Appelez-nous	-
13	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 9.65
14	308594		Motor, Timer		Appelez-nous	-
15	310721		Bracket, Timer (2)		Appelez-nous	-
16	313316		Seal, Backguard		Appelez-nous	-
17	313856		Thermostat, Oven		Appelez-nous	-
17	487384		Screw, 6-32 X 1/4 (2)		Appelez-nous	-
18	310006		Selector Switch		Appelez-nous	-
18	155023		Screw, 8-32 X 1/4 (2)			Immediately	$ 7.91
19	311802		Light Indicator Oven, Lock & Clean (3)		Appelez-nous	-
20	312581		Switch, Oven Light		Appelez-nous	-
20	312796		Lockwasher		Appelez-nous	-
20	WP965173		Screw, 8a X 3/8 (4)   (Replaces: 246132)			Immediately	$ 9.65
21	313030		Bezel Switch		Appelez-nous	-
22	WP308605		Strain, Relief   (Replaces: 308605)				$ 10.08
22	WP965173		Screw, 8a X 3/8   (Replaces: 246132)			Immediately	$ 9.65
23	311066		Escutcheon, Thermostat				$ 25.00
24	WP311068		Escutcheon, Selector Switch   (Replaces: 311068)				$ 49.73
24	254225		Screw 8bt X 1/4 (2)		Appelez-nous	-
25	WP3150371		Knob, Control (2)   (Replaces: 310834)				$ 19.40
26	330206		Knob, Timer (3)		Appelez-nous	-
26	313311		Spring, Knob		Appelez-nous	-
27	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 49.92
27	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
27	242831		Wire (14 Ga. 200 C Red)				$ 342.23
27	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
27	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
27	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
27	8212471		Touch-up (1 Oz.) Self-clean   (Replaces: 242756)			Immediately	$ 74.76
27	261582		Grease		Appelez-nous	-
27	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
27	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 49.92
27	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
27	261881		Rotisserie Kit		Appelez-nous	-
27	328891		Resistor & Terminal Assembly		Appelez-nous	-
27	98655		Terminal		Appelez-nous	-
27	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
27	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
27	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
27	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
27	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
27	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
27	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
	LIT311434		Instructions, Installation		Appelez-nous	-
	LIT311948		Tech Sheet		Appelez-nous	-
	LIT313358		Book, Cooking Guide		Appelez-nous	-
	LIT312493		Guide, Use & Care		Appelez-nous	-
	LIT884189		List, Repair Parts		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
