SELECT A DIAGRAM

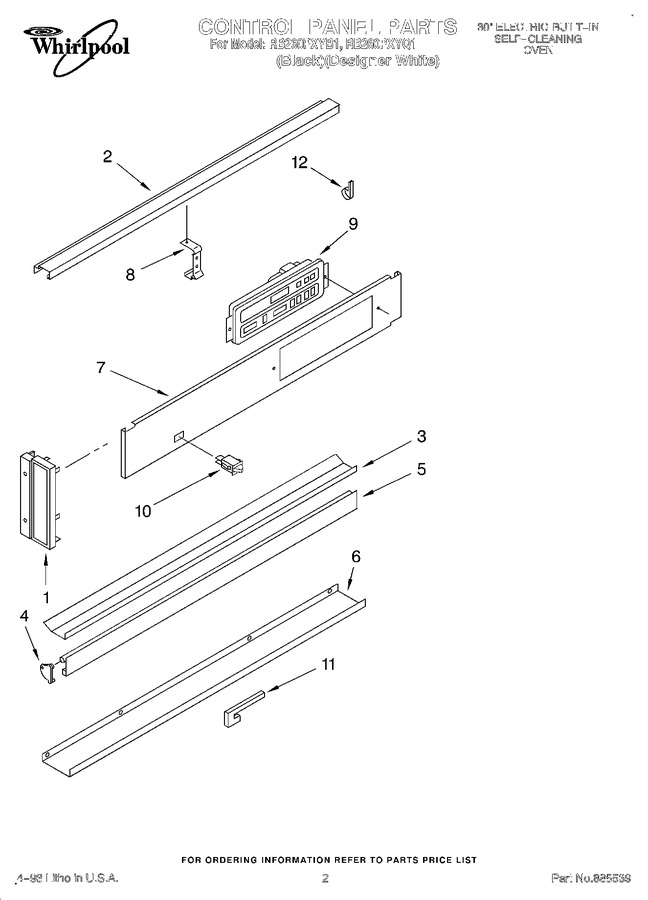

01 - Control Panel, Lit/optional


02 - Oven


03 - Oven Door


04 - Wiring Harness, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3148622		End Cap (right Hand)		Appelez-nous	-
1	3148621		End Cap (left Hand)		Appelez-nous	-
2	WP488627		Screw (2)   (Replaces: 342055)				$ 6.81
2	3148624		Trim, Top		Appelez-nous	-
3	98520		Trim, Center (screw (2))		Appelez-nous	-
3	3183578		Trim, Center (white Model)		Appelez-nous	-
3	3183577		Trim, Center (black Model)		Appelez-nous	-
4	3148471		End Trim (vent Door) Left Hand (white Model Right Hand)		Appelez-nous	-
4	3148472		End Trim (vent Door) Left Hand (white Model)		Appelez-nous	-
4	3148697		End Trim (vent Door) Left Hand (black Model)		Appelez-nous	-
4	3148698		End Trim (vent Door) Left Hand (black Model)		Appelez-nous	-
5	3183505		Door, Vent (black Model)		Appelez-nous	-
5	3183506		Door, Vent (white Model)		Appelez-nous	-
6	342043		Screw (2)		Appelez-nous	-
6	3148618		Trim, Bottom		Appelez-nous	-
7	3182915		Control Panel (black Model)		Appelez-nous	-
7	98520		Control Panel (screw (4))		Appelez-nous	-
7	3182916		Control Panel (white Model)		Appelez-nous	-
8	3183500		Bracket, Stiffener		Appelez-nous	-
8	311773		Screw		Appelez-nous	-
9	98520		Electronic Timer (screw (4))		Appelez-nous	-
9	3169256		Electronic Timer (black Model)		Appelez-nous	-
9	3169257		Electronic Timer (white Model)		Appelez-nous	-
10	3182718		Switch, Rocker (white Model)		Appelez-nous	-
10	3182717		Switch, Rocker (black Model)		Appelez-nous	-
11	98520		Screw		Appelez-nous	-
11	3149142		Shield, Air		Appelez-nous	-
12	488946		Clamp   (Replaces: 255564)				$ 18.41
	3171507		Mounting Hardware		Appelez-nous	-
	LIT3184116		Tech Sheet		Appelez-nous	-
	LIT885539		Repair Parts List		Appelez-nous	-
	LIT3181454		Brochure Miscellaneous		Appelez-nous	-
	LIT3183635		Installation Instructions		Appelez-nous	-
	LIT3182871		Use & Care Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
