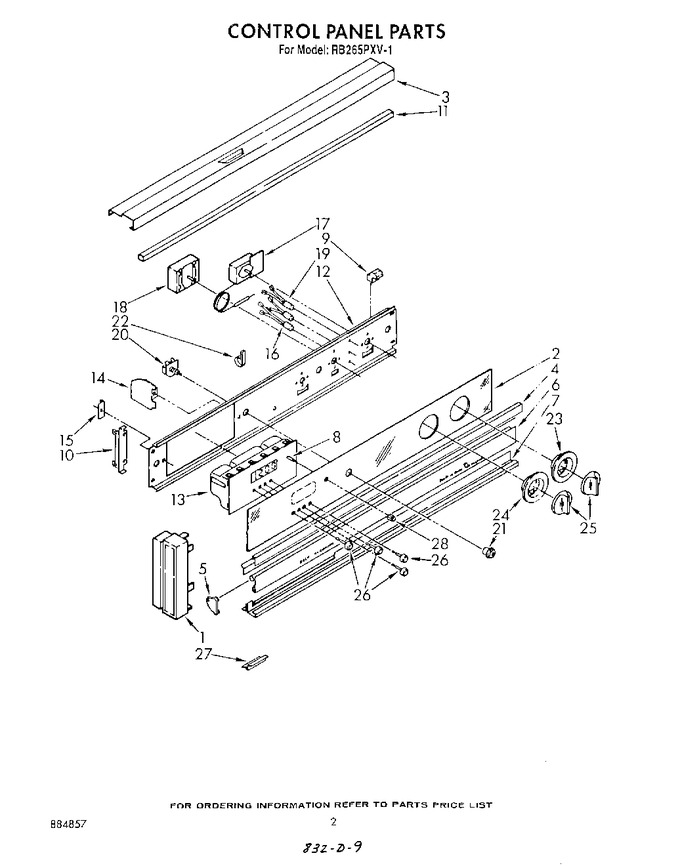

02 - Control Panel , Literature And Optional
03 - Oven
04 - Oven Door
05 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3148622 | End Cap (r.h.) |
|
- | |||||
| 1 | 3148621 | End Cap. L.h. |
|
- | |||||
| 1 | 342043 | Screw (2) |
|
- | |||||
| 1 | WP488627 | Screw (4) (Replaces: 342055) |
|
$ 6.81 | |||||
| 2 | 3148639 | Control Panel, Glass |
|
- | |||||
| 3 | 3148624 | Rail, Top |
|
- | |||||
| 3 | WP488627 | Screw (2) (Replaces: 342055) |
|
$ 6.81 | |||||
| 4 | 3148619 | Trim, Center |
|
- | |||||
| 5 | 3148697 | End Trim, Vent Door R.h. |
|
- | |||||
| 5 | 3148698 | End Trim, Vent Door L.h. |
|
- | |||||
| 6 | 342043 | Screw (2) |
|
- | |||||
| 6 | 3148617 | Door, Vent |
|
- | |||||
| 7 | 342043 | Screw (4) |
|
- | |||||
| 7 | 3148618 | Trim, Bottom |
|
- | |||||
| 8 | 3149320 | Shaft, Bit Generator |
|
- | |||||
| 9 | 3149882 | Retainer, Glass (4) |
|
- | |||||
| 10 | 3148635 | Bracket, Control Panel (2) |
|
- | |||||
| 10 | 98520 | Screw (4) |
|
- | |||||
| 11 | 311263 | Seal, Backguard |
|
- | |||||
| 12 | 313863 | Bracket, Control |
|
- | |||||
| 13 | 3149806 | Timer, Digital (includes Illus. 26 & 28) |
|
- | |||||
| 13 | 98520 | Screw (2) |
|
- | |||||
| 14 | 314129 | Shield, Timer |
|
- | |||||
| 15 | 313864 | Bracket, Timer |
|
- | |||||
| 16 | 3148720 | Light, Indicator |
|
- | |||||
| 17 | 487384 | Screw, 6-32 X 1/4 (2) |
|
- | |||||
| 17 | 3148934 | Thermostat, Oven |
|
- | |||||
| 18 | 310006 | Selector Switch |
|
- | |||||
| 18 | 155023 | Screw, 8-32 X 1/4 (2) |
|
Immediately | $ 7.91 | ||||
| 19 | 311802 | Light Indicator Oven, Lock & Clean (3) |
|
- | |||||
| 20 | 312581 | Switch, Oven Light |
|
- | |||||
| 20 | 312796 | Washer |
|
- | |||||
| 20 | 98520 | Screw (4) |
|
- | |||||
| 21 | 313030 | Bezel Switch |
|
- | |||||
| 22 | WP308605 | Strain, Relief (Replaces: 308605) |
|
$ 10.08 | |||||
| 22 | 98520 | Screw, 8a X 5/16 |
|
- | |||||
| 23 | 311066 | Escutcheon, Thermostat |
|
$ 25.00 | |||||
| 24 | WP311068 | Escutcheon, Selector Switch (Replaces: 311068) |
|
$ 49.73 | |||||
| 24 | 254225 | Screw 8bt X 1/4 (2) |
|
- | |||||
| 25 | WP3150371 | Knob, Control (2) (Replaces: 310834) |
|
$ 19.40 | |||||
| 26 | 313958 | Knob, Timer (4) |
|
- | |||||
| 27 | 313865 | Bracket, Control (2) |
|
- | |||||
| 28 | 8212471 | Touch-up Self-clean (1 Oz.) (Replaces: 242756) |
|
Immediately | $ 74.76 | ||||
| 28 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| 28 | 242829 | Wire, Red 12 Ga. 150~c |
|
- | |||||
| 28 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 28 | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | |||||
| 28 | 242826 | Wire, White 14 Ga. 150~c |
|
- | |||||
| 28 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 28 | 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | |||||
| 28 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 28 | 261582 | Grease |
|
- | |||||
| 28 | 261881 | Rotisserie Kit |
|
- | |||||
| 28 | 241430 | Foil, Aluminum Oven (18`` X 25`) |
|
$ 20.65 | |||||
| 28 | 313523 | Knob, Timer (1) |
|
$ 13.66 | |||||
| 28 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 28 | 242821 | Wire (14 Ga. 150 C Blue) |
|
- | |||||
| 28 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 28 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 28 | 242823 | Wire (14 Ga. 150 C Green) |
|
- | |||||
| LIT884857 | Repair Parts List |
|
- | ||||||
| LIT313358 | Book, Cooking Guide |
|
- | ||||||
| LIT3149600 | Instructions, Installation |
|
- | ||||||
| LIT3148317 | Guide, Use & Care |
|
- | ||||||
| LIT3148598 | Tech Sheet |
|
- |
