SELECT A DIAGRAM

01 - Control Panel, Literature


02 - Upper Oven

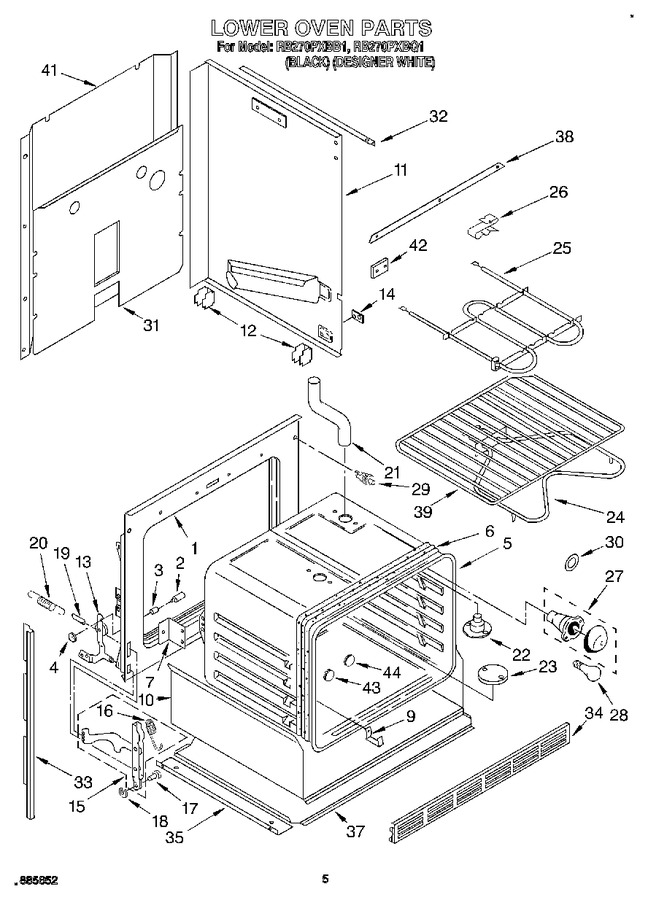

03 - Lower Oven


04 - Lower Oven Door, Optional


05 - Upper Oven Door


06 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3186975		Frame Front		Appelez-nous	-
2	307985		Pin, Hinge Ear (2)				$ 29.54
3	309111		Snubber, Door (2)		Appelez-nous	-
4	308306		Pushnut (2)		Appelez-nous	-
5	3182032		Oven, 30`` Conventional Clean		Appelez-nous	-
5	311056		Screw (3)		Appelez-nous	-
6	3169283		Heat Seal		Appelez-nous	-
7	WP681414		Screw (6)   (Replaces: 343641)			Immediately	$ 7.07
7	310713		Bracket, Oven Mounting (2)		Appelez-nous	-
9	98005642		Clip, Therm Bulb (2)   (Replaces: 313382)			Immediately	$ 74.64
10	WP488729		Screw, 8 X 1/2 (2)   (Replaces: 3148107)			Immediately	$ 7.01
10	3185944		Insulation Tray		Appelez-nous	-
11	3185958		Side Wrapper (left Side)		Appelez-nous	-
11	3185955		Side Wrapper (right Side)		Appelez-nous	-
12	311774		Support, Side Wrapper (4)		Appelez-nous	-
12	WP488729		Screw, 8 X 1/2 (8)   (Replaces: 3148107)			Immediately	$ 7.01
13	3185663		Hinge, Ear (left Side)		Appelez-nous	-
13	3185662		Hinge, Ear (right Side)		Appelez-nous	-
14	WP308544		Screw, 10-24 X 1/2 (4)   (Replaces: 308544)			Immediately	$ 6.98
14	310659		Plate, Side Panel (2)		Appelez-nous	-
15	3185665		Channel, Arm (2)		Appelez-nous	-
16	311092		Spring, Door Stop (2)		Appelez-nous	-
17	WP307986		Pin Hinge   (Replaces: 307986)				$ 11.78
18	307594		Retainer, Ring		Appelez-nous	-
19	WP308125		Anchor, Spring (2)   (Replaces: 311897)				$ 10.94
20	308127		Spring, Oven Door (2)				$ 11.75
21	311259		Tube, Lower Vent		Appelez-nous	-
21	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
22	WP488729		Screw, 8 X 1/2 (2)   (Replaces: 3148107)			Immediately	$ 7.01
22	310840		Eliminator, Smoke		Appelez-nous	-
23	WP488729		Screw, 8 X 1/2 (2)   (Replaces: 3148107)			Immediately	$ 7.01
23	310662		Plate, Cover		Appelez-nous	-
24	3150532		Screw, 10-32 X 5/8 (2)		Appelez-nous	-
24	WP308180		Unit, Bake   (Replaces: 660576)				$ 96.92
25	WP660579		Unit, Broil   (Replaces: 660579)				$ 140.80
25	3150532		Screw, 10-32 X 5/8 (2)		Appelez-nous	-
26	313570		Clamp		Appelez-nous	-
27	W11594027		Oven Light Assy.   (Replaces: 3150505)			Immediately	$ 78.31
28	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
29	310345		Switch, Door				$ 94.86
30	WP3184533		Gasket, Light   (Replaces: 3184533)			Immediately	$ 7.73
31	3182052		Panel, Back		Appelez-nous	-
31	WP488729		Screw, 8 X 1/2 (6)   (Replaces: 3148107)			Immediately	$ 7.01
32	255095		Support Angle (2)		Appelez-nous	-
32	WP488729		Screw, 8 X 1/2 (4)   (Replaces: 3148107)			Immediately	$ 7.01
33	3187905		Side Trim (black Model, R.h.)		Appelez-nous	-
33	3187911		Side Trim (black Model, L.h.)		Appelez-nous	-
33	3187912		Side Trim (white Model, Lh)		Appelez-nous	-
33	3187906		Side Trim (white Model, R.h.)		Appelez-nous	-
33	WP488729		Side Trim (screw, 8 X 1/2)   (Replaces: 3148107)			Immediately	$ 7.01
34	310668		Grill, Bottom (black)				$ 556.11
34	WP488627		Grill, Bottom (white (3))   (Replaces: 338156)				$ 6.81
34	309029		Grill, Bottom (black (3))		Appelez-nous	-
34	3149359		Grill, Bottom (white Screw, 8-15 X 1/2)		Appelez-nous	-
35	311592		Angle, Support (2)		Appelez-nous	-
35	WP488729		Screw, 8 X 1/2 (4)   (Replaces: 3148107)			Immediately	$ 7.01
37	WP488729		Screw, 8 X 1/2 (4)   (Replaces: 3148107)			Immediately	$ 7.01
37	3185945		Cover, Bottom		Appelez-nous	-
38	311592		Bracket Angle		Appelez-nous	-
39	3185641		Rack, Oven (straight)				$ 67.33
41	3185959		Cover, Rear		Appelez-nous	-
41	WP488729		Screw, 8 X 1/2 (11)   (Replaces: 3148107)			Immediately	$ 7.01
42	3183005		Plate, Cover		Appelez-nous	-
43	3182814		Button, Plug		Appelez-nous	-
44	310433		Insulation, Wrap		Appelez-nous	-
44	3185086		Button, Plug		Appelez-nous	-
44	310435		Insulation, Back		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
