SELECT A DIAGRAM

01 - Control Panel, Literature


02 - Upper Oven

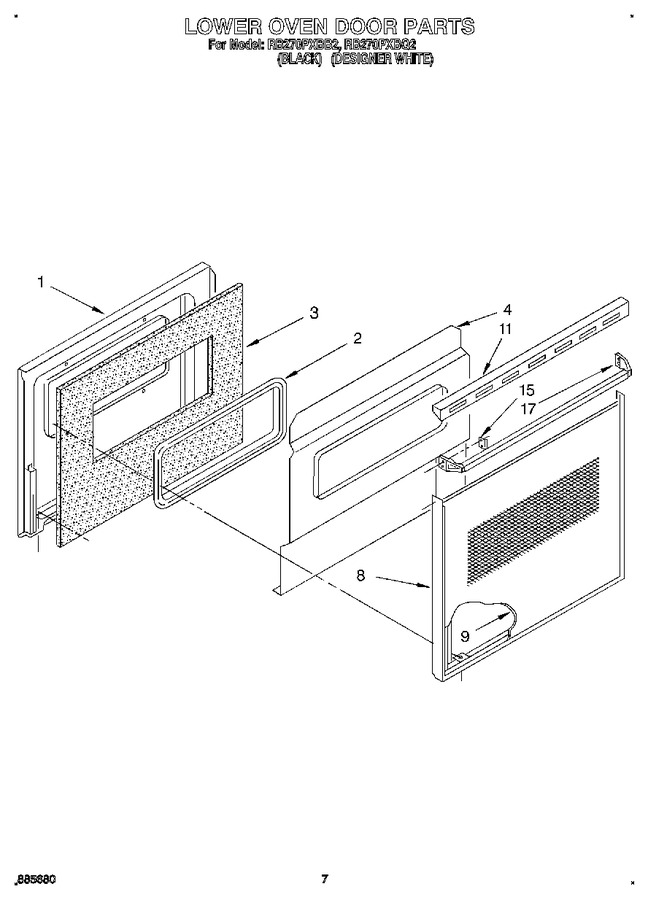

03 - Lower Oven


04 - Lower Oven Door


05 - Upper Oven Door


06 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3172220		Liner, Door		Appelez-nous	-
1	WP488729		Screw, 8 X 1/2 (3)   (Replaces: 3148107)			Immediately	$ 7.01
1	311056		Screw, (4)		Appelez-nous	-
2	3148183		Seal, Pano Glass				$ 7.41
3	3147954		Insulation		Appelez-nous	-
4	3185647		Screw (6)		Appelez-nous	-
4	WP3169203		Glass, Inner & Outer   (Replaces: 3169203)				$ 135.71
4	3148287		Retainer, Insulation		Appelez-nous	-
8	3171530		Frame, Door 30`` (black Model)		Appelez-nous	-
8	3187920		Frame, Door 30`` (white Model)		Appelez-nous	-
9	3188053		Glass, Panel (white Model)		Appelez-nous	-
9	3149253		Glass, Outer (screw (black))		Appelez-nous	-
9	3188403		Glass, Outer (screw (white))		Appelez-nous	-
9	3188054		Glass, Outer (black)		Appelez-nous	-
11	3148223		Top, Door Frame (black)		Appelez-nous	-
11	3149355		Top, Door Frame (white)		Appelez-nous	-
15	3148282		Clip (2)				$ 8.69
17	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
17	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
17	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
17	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
17	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
17	242831		Wire (14 Ga. 200 C Red)				$ 342.23
17	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
17	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
17	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
17	3187940		Handle, Oven Door (black)				$ 107.32
17	3187941		Handle, Oven Door (white)				$ 0.01
17	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
17	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
17	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
17	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
