SELECT A DIAGRAM

02 - Control Panel, Lit/optional


03 - Upper Oven


04 - Lower Oven


05 - Lower Oven Door, Optional


06 - Upper Oven Door


07 - Wiring Harness

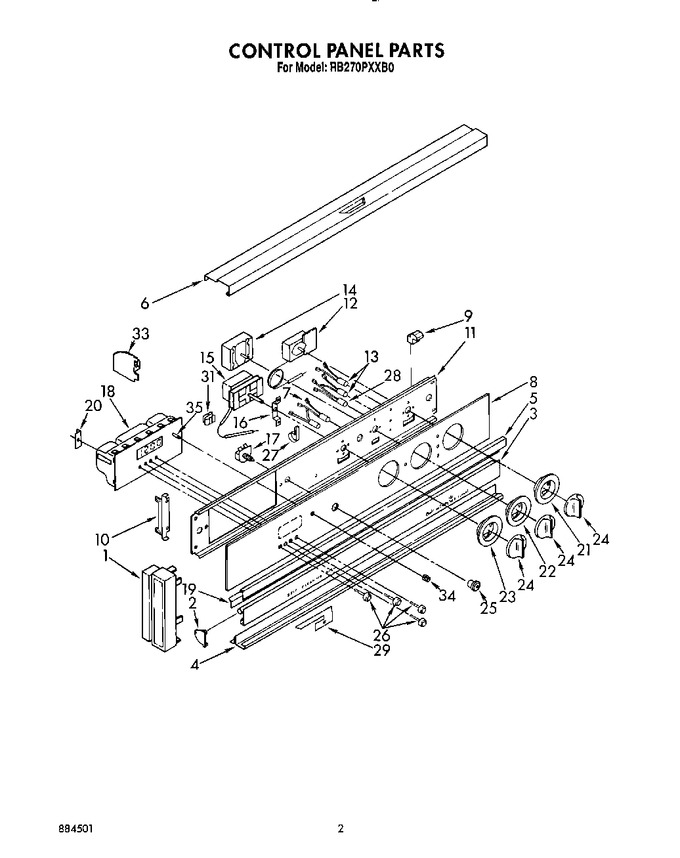

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3148621		End Cap (left Side)		Appelez-nous	-
1	3148622		End Cap (right Side)		Appelez-nous	-
2	3148698		End Trim, Vent Right Side (black)		Appelez-nous	-
2	3148697		End Trim, Vent Right Side (black)		Appelez-nous	-
2	3148471		End Trim, Vent Right Side (rosemont Grey Left Side)		Appelez-nous	-
2	3148472		End Trim, Vent Right Side (rosemont Grey)		Appelez-nous	-
3	3149603		Door, Vent (brushed Chrome)		Appelez-nous	-
3	3148617		Door, Vent (black)		Appelez-nous	-
4	3148618		Trim, Bottom		Appelez-nous	-
4	342043		Screw (2)		Appelez-nous	-
5	3149349		Trim, Center (brushed Chrome)		Appelez-nous	-
5	342043		Trim, Center (screw (2))		Appelez-nous	-
5	3148619		Trim, Center (black)		Appelez-nous	-
6	WP488627		Screw (2)   (Replaces: 342055)				$ 6.81
6	3148624		Trim, Top		Appelez-nous	-
7	3148807		Light, Indicator (double)		Appelez-nous	-
8	3149168		Glass, Control Panel (white)		Appelez-nous	-
8	3148637		Glass, Control Panel (black)		Appelez-nous	-
9	3149882		Retainer, Glass (4)		Appelez-nous	-
10	3148635		Bracket, Control Panel (2)		Appelez-nous	-
10	98520		Screw (4)		Appelez-nous	-
11	330500		Control Bracket		Appelez-nous	-
12	3148934		Thermostat, Upper Oven		Appelez-nous	-
12	WP98997		Clip   (Replaces: 98997)				$ 9.98
12	WP313808		Screw, 6-32 X 9/32 (2)   (Replaces: 313808)				$ 6.84
13	311802		Indicator Light (2)		Appelez-nous	-
14	155023		Screw, 8-32 X 1/4 (2)			Immediately	$ 7.91
14	310006		Selector Switch		Appelez-nous	-
15	311479		Thermostat, Lower Oven		Appelez-nous	-
16	311491		Screw (4)		Appelez-nous	-
16	311492		Bracket, Thermostat		Appelez-nous	-
16	WP313808		Screw, 6-32 X 9/32 (2)   (Replaces: 313808)				$ 6.84
17	312581		Switch, Oven Light (black)		Appelez-nous	-
17	3148465		Switch, Oven Light (white)		Appelez-nous	-
17	312796		Switch, Oven Light (lockwasher)		Appelez-nous	-
18	3149806		Timer, Digital (black)		Appelez-nous	-
18	3149807		Timer, Digital (white)		Appelez-nous	-
19	311263		Seal, Top Rail		Appelez-nous	-
20	313864		Bracket, Timer		Appelez-nous	-
20	98520		Screw, 8a X 5/16 (2)		Appelez-nous	-
21	3149172		Escutcheon, Thermostat Upper Oven (white)		Appelez-nous	-
21	311066		Escutcheon, Thermostat Upper Oven (black)				$ 25.00
22	WP311068		Escutcheon, Selector Switch (black)   (Replaces: 311068)				$ 49.73
22	WP311068		Escutcheon, Selector Switch (white)   (Replaces: 3149174)				$ 49.73
23	3149173		Escutcheon, Thermostat (lower Oven) (white)		Appelez-nous	-
23	254225		Escutcheon, Thermostat (lower Oven) (screw, 8 X 1/4)		Appelez-nous	-
23	311067		Escutcheon, Thermostat (lower Oven) (black)		Appelez-nous	-
24	WP3150371		Knob, Control (3) (black)   (Replaces: 3150371)				$ 19.40
24	3150372		Knob, Control (3) (white)		Appelez-nous	-
25	313030		Bezel Switch (1) (black)		Appelez-nous	-
25	3149170		Bezel Switch (1) (white)		Appelez-nous	-
26	3149177		Set Button (4) (white)		Appelez-nous	-
26	313958		Set Button (4) (black)		Appelez-nous	-
27	98520		Screw		Appelez-nous	-
27	308609		Strain Relief (3)		Appelez-nous	-
28	3148720		Light, Indicator		Appelez-nous	-
29	WP488729		Screw (2)   (Replaces: 3148107)			Immediately	$ 7.01
29	3149142		Shield, Air		Appelez-nous	-
31	313570		Clip, Tube (thermostat)		Appelez-nous	-
33	98520		Screw, 8a X 5/16 (2)		Appelez-nous	-
33	314129		Bracket, Timer		Appelez-nous	-
34	3149176		Knob, Bit Generator (white)		Appelez-nous	-
34	313523		Knob, Bit Generator (black)				$ 13.66
35	3149320		Shaft, Bit Generator		Appelez-nous	-
	LIT3149595		Installation Instructions		Appelez-nous	-
	LIT3185069		Use & Care Guide		Appelez-nous	-
	LIT884501		Repair Parts List		Appelez-nous	-
	LIT313358		Cooking Guide		Appelez-nous	-
	LIT3148599		Tech Sheet		Appelez-nous	-
