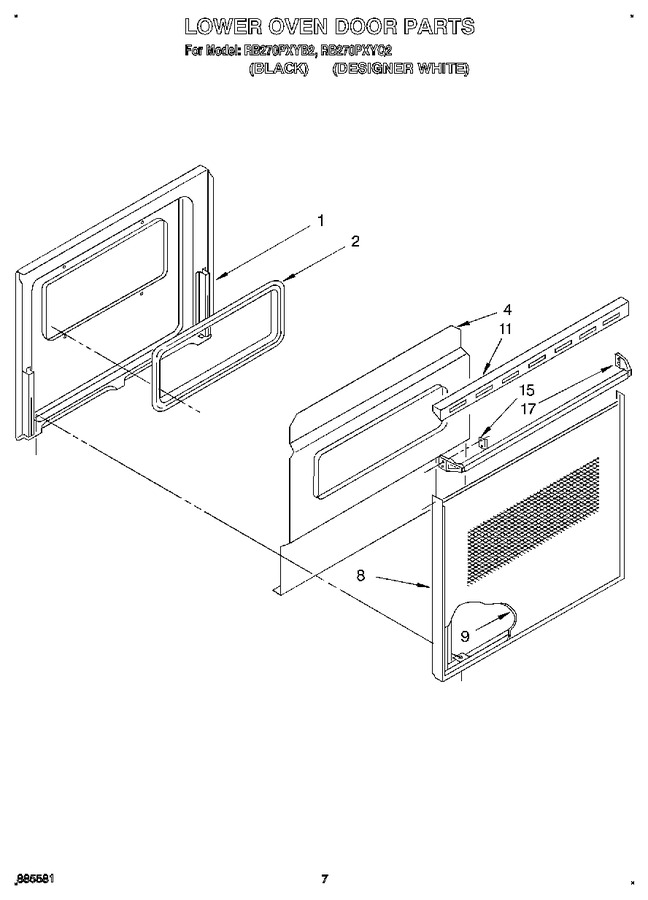

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3172220		Liner, Door		Appelez-nous	-
1	WP488729		Screw, 8 X 1/2 (3)   (Replaces: 3148107)			Immediately	$ 7.01
1	311056		Screw, (4)		Appelez-nous	-
2	3148183		Seal, Pano Glass				$ 7.41
4	3148287		Retainer, Insulation		Appelez-nous	-
4	WP3169203		Glass, Inner & Outer   (Replaces: 3169203)				$ 135.71
4	3148443		Screw (6)		Appelez-nous	-
8	3148235		Frame, Door 30``		Appelez-nous	-
9	3149049		Glass, Outer (white (black))		Appelez-nous	-
9	3148185		Glass, Outer (black)		Appelez-nous	-
11	3148223		Top, Door Frame (black)		Appelez-nous	-
11	3149355		Top, Door Frame (white)		Appelez-nous	-
15	3148282		Clip (2)				$ 8.69
17	3171507		Mounting Hardware		Appelez-nous	-
17	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
17	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
17	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
17	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
17	3148228		Handle, Oven Door (black)		Appelez-nous	-
17	3149354		Handle, Oven Door (white)		Appelez-nous	-
17	WP355515		Handle, Oven Door (screw, Handle (2))   (Replaces: 355515)				$ 6.90
17	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
17	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
17	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
17	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
17	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
17	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
17	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
17	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
17	242831		Wire (14 Ga. 200 C Red)				$ 342.23

    View Diagram in Separate Window       Print Part List
