SELECT A DIAGRAM

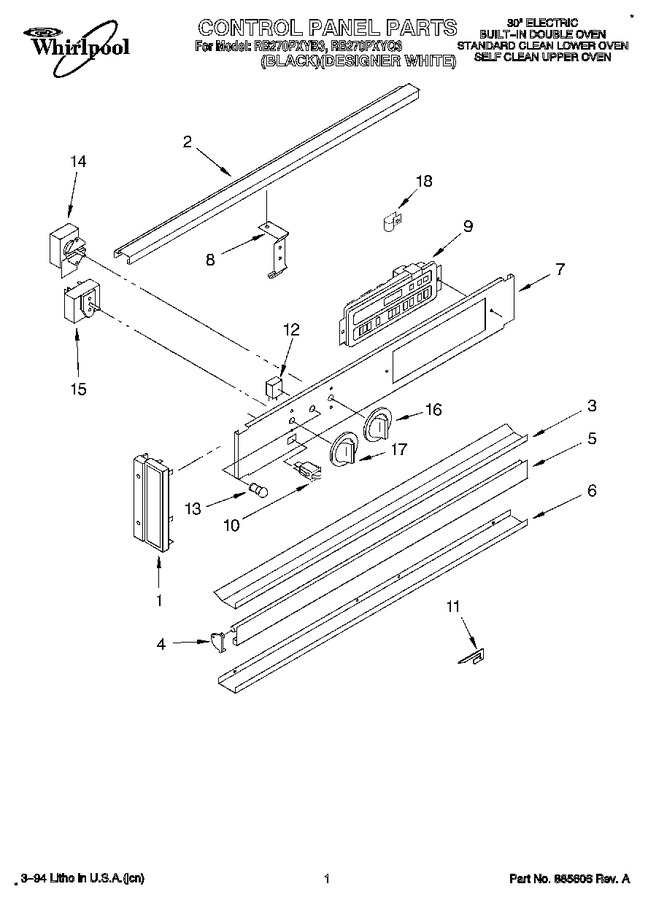

01 - Control Panel, Literature


02 - Upper Oven


03 - Lower Oven


04 - Lower Oven Door, Optional


05 - Upper Oven Door


06 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3148622		End Cap (right Side)		Appelez-nous	-
1	3148621		End Cap (left Side)		Appelez-nous	-
2	3148624		Trim, Top		Appelez-nous	-
2	WP488627		Screw (2)   (Replaces: 342055)				$ 6.81
3	3183578		Trim, Center (white Model)		Appelez-nous	-
3	3183577		Trim, Center (black Model)		Appelez-nous	-
3	98520		Trim, Center (screw (2))		Appelez-nous	-
4	3148698		End Trim (vent Door) Left Hand (black Model)		Appelez-nous	-
4	3148697		End Trim (vent Door) Left Hand (black Model)		Appelez-nous	-
4	3148471		End Trim (vent Door) Left Hand (white Model Right Hand)		Appelez-nous	-
4	3148472		End Trim (vent Door) Left Hand (white Model)		Appelez-nous	-
5	3183505		Door, Vent (black Model)		Appelez-nous	-
5	3183506		Door, Vent (white Model)		Appelez-nous	-
6	3148618		Trim, Bottom		Appelez-nous	-
6	342043		Screw (2)		Appelez-nous	-
7	3182918		Control Panel (white Model)		Appelez-nous	-
7	98520		Control Panel (screw (4))		Appelez-nous	-
7	3182917		Control Panel (black Model)		Appelez-nous	-
8	3183500		Bracket, Stiffener		Appelez-nous	-
8	311773		Screw		Appelez-nous	-
9	3169257		Electronic Timer (white Model)		Appelez-nous	-
9	3169256		Electronic Timer (black Model)		Appelez-nous	-
9	98520		Electronic Timer (screw (4))		Appelez-nous	-
10	3182718		Switch, Rocker (white Model)		Appelez-nous	-
10	3182717		Switch, Rocker (black Model)		Appelez-nous	-
11	3149142		Shield, Air		Appelez-nous	-
11	98520		Screw		Appelez-nous	-
12	314031		Light, Indicator				$ 62.88
13	313101		Lens, Amber		Appelez-nous	-
14	3169303		Thermostat		Appelez-nous	-
14	3178002		Screw (2)		Appelez-nous	-
15	155023		Screw (2)			Immediately	$ 7.91
15	3183583		Switch, Selector		Appelez-nous	-
16	3183107		Knob, Thermostat (white Model)		Appelez-nous	-
16	3183106		Knob, Thermostat (black Model)		Appelez-nous	-
17	3183109		Knob Selector (black Model)		Appelez-nous	-
17	3183110		Knob Selector (white Model)		Appelez-nous	-
18	308609		Strain, Relief		Appelez-nous	-
	LIT3186640		Tech Sheet		Appelez-nous	-
	LIT3183635		Installation Instructions		Appelez-nous	-
	LIT3182871		Use & Care Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
