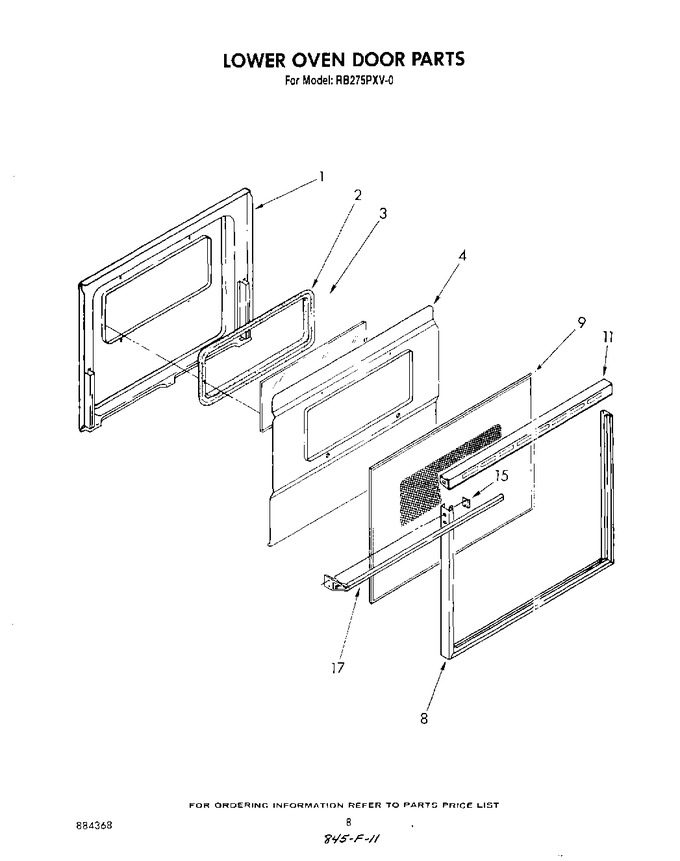

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3170710		Liner, Door		Appelez-nous	-
1	WP488729		Screw, 8 X 1/2 (3)   (Replaces: 3148107)			Immediately	$ 7.01
1	311056		Screw, (4)		Appelez-nous	-
2	3148183		Seal, Pano Glass				$ 7.41
3	3148179		Glass, Inner 30``		Appelez-nous	-
4	3148287		Retainer, Insulation		Appelez-nous	-
5	3147951		Insulation, Door		Appelez-nous	-
5	307748		Screw, 10 X 1/2 Black (4)		Appelez-nous	-
8	3148235		Frame, Door 30``		Appelez-nous	-
9	3148185		Glass, Outer		Appelez-nous	-
11	307748		Screw, 10a X 1/2		Appelez-nous	-
11	3148223		Top, Door Frame		Appelez-nous	-
15	3148282		Clip (2)				$ 8.69
17	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
17	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
17	261810		Touch-up Oven (1 Oz.)		Appelez-nous	-
17	261582		Grease		Appelez-nous	-
17	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 49.92
17	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 49.92
17	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
17	261881		Rotisserie (top Oven Only)		Appelez-nous	-
17	3148228		Handle, Oven Door		Appelez-nous	-
17	WP355515		Screw, Handle (2)   (Replaces: 355515)				$ 6.90
17	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
17	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
17	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
17	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
17	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
17	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
17	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
17	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
17	242831		Wire (14 Ga. 200 C Red)				$ 342.23
17	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
17	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
	LIT311509		Instructions, Installation		Appelez-nous	-
	LIT313358		Book, Cooking Guide		Appelez-nous	-
	LIT3148318		Guide, Use & Care		Appelez-nous	-
	LIT3148599		Tech Sheet		Appelez-nous	-
	LIT884368		List, Parts		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
