SELECT A DIAGRAM

01 - Control Panel

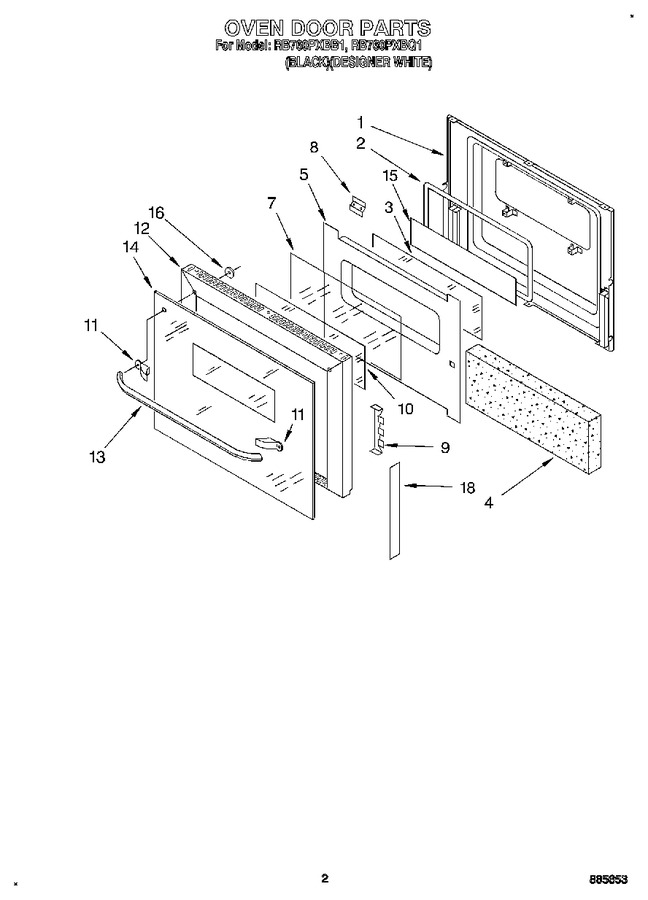

02 - Oven Door


03 - Oven


04 - Unit


05 - Component Shelf And Latch


06 - Wiring Harness, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3185497		Liner, Door		Appelez-nous	-
2	3185462		Gasket, Window		Appelez-nous	-
3	3185457		Glass, Clear		Appelez-nous	-
4	3185460		Insulation, Door		Appelez-nous	-
5	3188815		Retainer, Insulation		Appelez-nous	-
5	4168863		Screw		Appelez-nous	-
7	3185458		Glass, Reflective		Appelez-nous	-
8	3185647		Screw		Appelez-nous	-
8	3185438		Latch, Strike		Appelez-nous	-
9	3185439		Retainer, Glass		Appelez-nous	-
10	3185459		Glass, Clear		Appelez-nous	-
10	3185647		Screw		Appelez-nous	-
11	814282		Spacer (black Model)		Appelez-nous	-
11	814281		Spacer (white Model)		Appelez-nous	-
12	3187850		Frame, Door (black Model)		Appelez-nous	-
12	3187852		Frame, Door (white Model)		Appelez-nous	-
13	3187944		Handle, Door (white Model)		Appelez-nous	-
13	3187946		Handle, Door (black Model)		Appelez-nous	-
14	3187868		Glass, Door (black Model)		Appelez-nous	-
14	3187870		Glass, Door (white Model)		Appelez-nous	-
15	3188633		Foil, Adhesive		Appelez-nous	-
15	4173601		Screw		Appelez-nous	-
16	3188599		Bushing		Appelez-nous	-
18	3188635		Foil - Adehesive		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
