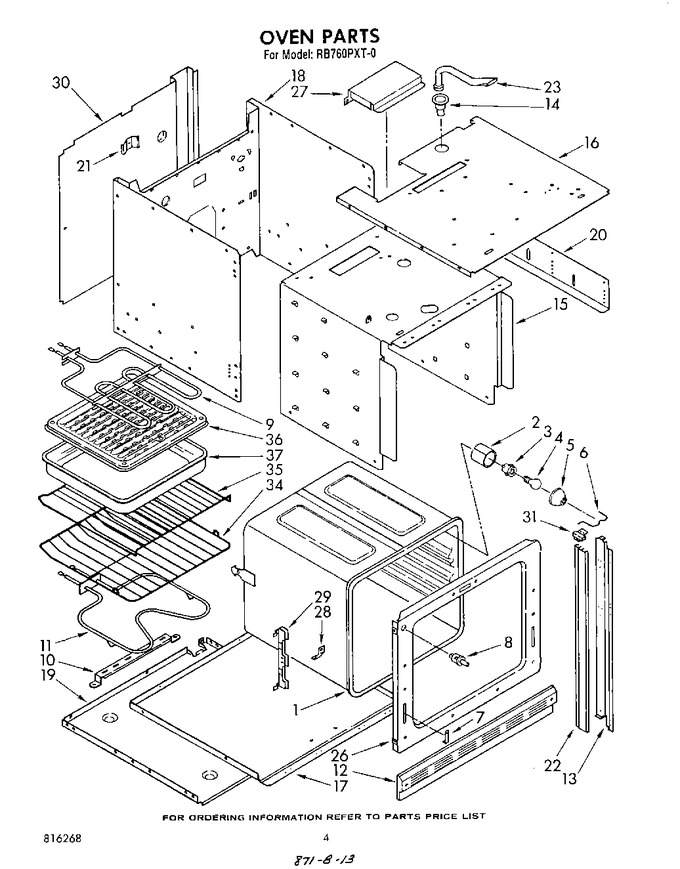

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 816273 | Oven (27`` Pyro) |
|
- | |||||
| 2 | 816290 | Cup, Light |
|
- | |||||
| 3 | W10856866 | Receptacle, Light (Replaces: 877803) |
|
$ 6.47 | |||||
| 4 | 40A15 | Bulb, Light (Replaces: 816389) |
|
Immediately | $ 1.98 | ||||
| 5 | 877804 | Lens, Light |
|
- | |||||
| 6 | 816291 | Retainer, Lens |
|
- | |||||
| 7 | 816421 | Screw |
|
- | |||||
| 7 | 816379 | Retainer, Door |
|
- | |||||
| 8 | 816321 | Switch, Oven Light |
|
- | |||||
| 9 | 816295 | Unit, Broil |
|
- | |||||
| 10 | 816297 | Support, Broil Unit |
|
- | |||||
| 11 | 816293 | Unit, Bake |
|
- | |||||
| 12 | 816410 | Screw |
|
- | |||||
| 12 | 816344 | Trim, Base |
|
- | |||||
| 13 | 816274 | Side Trim (inner) (l.h.) |
|
- | |||||
| 13 | 816304 | Side Trim (inner) (r.h.) |
|
- | |||||
| 14 | 816292 | Vent Tube |
|
- | |||||
| 15 | 816277 | Insulation Retainer, Top And Sides |
|
- | |||||
| 16 | 816303 | Casing, Top |
|
- | |||||
| 17 | 816278 | Insulation Retainer, Bottom |
|
- | |||||
| 18 | 816279 | Casing, Back And Sides |
|
- | |||||
| 19 | 816283 | Casing, Bottom |
|
- | |||||
| 20 | 816284 | Support, Height |
|
- | |||||
| 21 | 816287 | Spring, Oven (2) |
|
- | |||||
| 22 | 816336 | Side Trim, Outer (2) |
|
- | |||||
| 23 | 816326 | Duct, Oven Vent |
|
- | |||||
| 26 | 816386 | Front Frame |
|
- | |||||
| 27 | 816319 | Cover, Motor |
|
- | |||||
| 28 | 816387 | Spacer, Oven |
|
- | |||||
| 29 | 816388 | Channel Assembly, Hinge (2) |
|
- | |||||
| 30 | 816380 | Cover, Rear |
|
- | |||||
| 31 | 816333 | End Cap, Top |
|
- | |||||
| 34 | 816342 | Rack, Oven Regular |
|
- | |||||
| 35 | 816343 | Rack, Oven Offset |
|
- | |||||
| 36 | 816381 | Grill, Broiler Pan |
|
- | |||||
| 37 | WPW10208653 | Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces: 240132) |
|
Immediately | $ 49.92 | ||||
| 37 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 37 | 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | |||||
| 37 | WPW10208653 | Insulation, Fiberglass (1-1/2`` X 24`` X 120``) (Replaces: 261514) |
|
Immediately | $ 49.92 | ||||
| 37 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 37 | 241430 | Foil, Aluminum Oven (18`` X 25`) |
|
$ 20.65 | |||||
| 37 | 261810 | Touch-up Oven (1 Oz.) |
|
- | |||||
| 37 | 261582 | Grease |
|
- | |||||
| 37 | 816382 | Pan, Broiler |
|
- | |||||
| 37 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 37 | 242821 | Wire (14 Ga. 150 C Blue) |
|
- | |||||
| 37 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 37 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 37 | 242823 | Wire (14 Ga. 150 C Green) |
|
- | |||||
| 37 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| 37 | 242829 | Wire, Red 12 Ga. 150~c |
|
- | |||||
| 37 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 37 | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | |||||
| 37 | 242826 | Wire, White 14 Ga. 150~c |
|
- | |||||
| LIT313358 | Guide, Cooking |
|
- | ||||||
| LIT816140 | Instructions, Installation |
|
- | ||||||
| LIT816139 | Guide, Use & Care |
|
- | ||||||
| LIT816268 | List, Repair Parts |
|
- |
