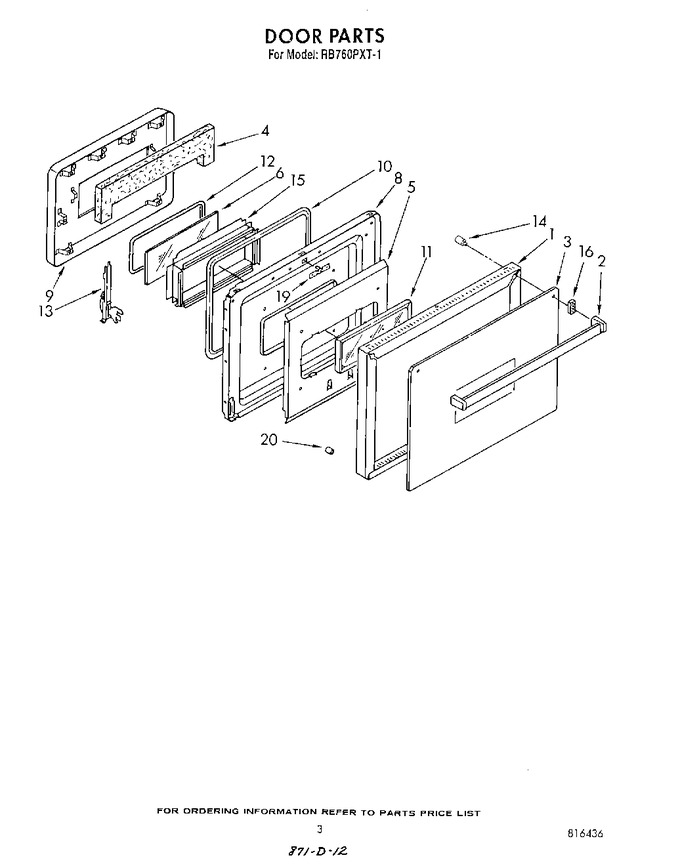

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	816354		Frame, Oven Door		Appelez-nous	-
1	3149333		Screw, 10-16 X 1/2 (6)				$ 5.33
2	816438		Handle, Oven Door		Appelez-nous	-
2	816359		Screw, 10-24 X 2 (2)		Appelez-nous	-
3	816356		Glass, Outer		Appelez-nous	-
4	816441		Insulation, Oven Door		Appelez-nous	-
5	816351		Panel, Airwash		Appelez-nous	-
6	816364		Glass, Inner		Appelez-nous	-
8	816345		Liner, Oven Door		Appelez-nous	-
8	816270		Screw, 10-24 X 5/8		Appelez-nous	-
9	816362		Screw, 10-24 X 2 3/4 (4)		Appelez-nous	-
9	816360		Baffle, Weldment		Appelez-nous	-
10	816446		Seal, Oven Door		Appelez-nous	-
11	PA8X8		Window Assembly   (Replaces: 816370)			Immediately	$ 29.01
12	816363		Seal, Window		Appelez-nous	-
13	816385		Hinge Assy. (2)		Appelez-nous	-
13	816270		Screw, 10-24 X 5/8 (4)		Appelez-nous	-
14	816415		Spacer, Handle Mount (2)		Appelez-nous	-
15	816367		Retainer, Glass		Appelez-nous	-
16	816440		Spacer, Handle (2)		Appelez-nous	-
19	816270		Screw, 10-24 X 5/8 (2)		Appelez-nous	-
19	877507		Strike		Appelez-nous	-
20	816365		Spacer, Glass (4)		Appelez-nous	-
