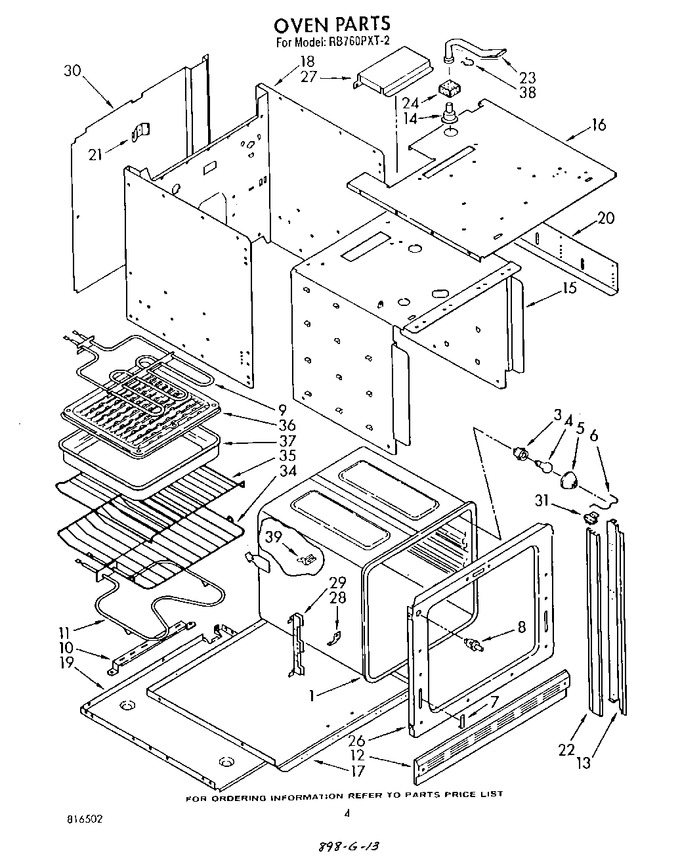

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	816273		Oven (27`` Pyro)		Appelez-nous	-
3	W10856866		Receptacle, Light   (Replaces: 877803)				$ 6.47
4	40A15		Bulb, Light   (Replaces: 816389)			Immediately	$ 1.98
5	877804		Lens, Light		Appelez-nous	-
6	816291		Retainer, Lens		Appelez-nous	-
7	816379		Retainer, Door		Appelez-nous	-
8	816321		Switch, Oven Light		Appelez-nous	-
9	816295		Unit, Broil		Appelez-nous	-
9	241428		Screw, 10 - 24 X 1/2 (2)		Appelez-nous	-
10	816297		Support, Broil Unit		Appelez-nous	-
10	241428		Screw, 10 - 24 X 1/2 (2)		Appelez-nous	-
11	816293		Unit, Bake		Appelez-nous	-
11	241428		Screw, 10 - 24 X 1/2 (2)		Appelez-nous	-
12	3149333		Screw, 10-16 X 1/2 (2)				$ 5.33
12	816344		Trim, Base		Appelez-nous	-
13	WP308685		Side Trim (inner) (screw, 10-24 X 1/2 (10))   (Replaces: 308685)			Immediately	$ 7.08
13	816274		Side Trim (inner) (l.h.)		Appelez-nous	-
13	816304		Side Trim (inner) (r.h.)		Appelez-nous	-
14	816442		Vent Tube		Appelez-nous	-
15	816277		Insulation Retainer, Top And Sides		Appelez-nous	-
16	816303		Casing, Top		Appelez-nous	-
17	241428		Screw, 10-24 X 1/2 (4)		Appelez-nous	-
17	816278		Insulation Retainer, Bottom		Appelez-nous	-
18	WP308685		Screw, 10-24 X 1/2 (14)   (Replaces: 308685)			Immediately	$ 7.08
18	816279		Casing, Back And Sides		Appelez-nous	-
19	816283		Casing, Bottom		Appelez-nous	-
20	816284		Support, Height		Appelez-nous	-
20	WP308685		Screw, 10-24 X 1/2 (12)   (Replaces: 308685)			Immediately	$ 7.08
21	241428		Screw, 10 - 24 X 1/2 (2)		Appelez-nous	-
21	816287		Spring, Oven (2)		Appelez-nous	-
22	3149333		Screw, 10-16 X 1/2 (4)				$ 5.33
22	816336		Side Trim, Outer (2)		Appelez-nous	-
23	877919		Screw, 8-32 X 3/16		Appelez-nous	-
23	816326		Duct, Oven Vent		Appelez-nous	-
24	816328		Insulation		Appelez-nous	-
26	816270		Screw, 10-24 X 5/8 (6)		Appelez-nous	-
26	816386		Front Frame		Appelez-nous	-
27	241428		Screw, 10 - 24 X 1/2 (2)		Appelez-nous	-
27	816319		Cover, Motor		Appelez-nous	-
28	816387		Spacer, Oven		Appelez-nous	-
29	816388		Channel Assembly, Hinge (2)		Appelez-nous	-
30	241428		Screw, 10-24 X 1/2 (8)		Appelez-nous	-
30	816380		Cover, Rear		Appelez-nous	-
31	816333		End Cap, Top		Appelez-nous	-
34	816342		Rack, Oven Regular		Appelez-nous	-
35	816343		Rack, Oven Offset		Appelez-nous	-
36	816448		Grill, Broiler Pan		Appelez-nous	-
37	4396923		Pan, Broiler   (Replaces: 816437)			Immediately	$ 52.04
38	816329		Retainer		Appelez-nous	-
39	816338		Clip, Thermo Bulb (2)		Appelez-nous	-
	LIT816259		Instructions, Installation		Appelez-nous	-
	LIT816139		Guide, Use & Care		Appelez-nous	-
	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 49.92
	242832		Wire, Yellow 14 Ga. 200 Oc		Appelez-nous	-
	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
	242826		Wire, White 14 Ga. 150 Oc		Appelez-nous	-
	242831		Wire (14 Ga. 200 C Red)				$ 342.23
	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
	242829		Wire, Red 12 Ga. 150 Oc		Appelez-nous	-
	261582		Grease		Appelez-nous	-
	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
	261810		Touch-up Oven (1 Oz.)		Appelez-nous	-
	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
	LIT816502		List, Repair Parts		Appelez-nous	-
	LIT313358		Guide, Cooking		Appelez-nous	-
	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 49.92

    View Diagram in Separate Window       Print Part List
