SELECT A DIAGRAM

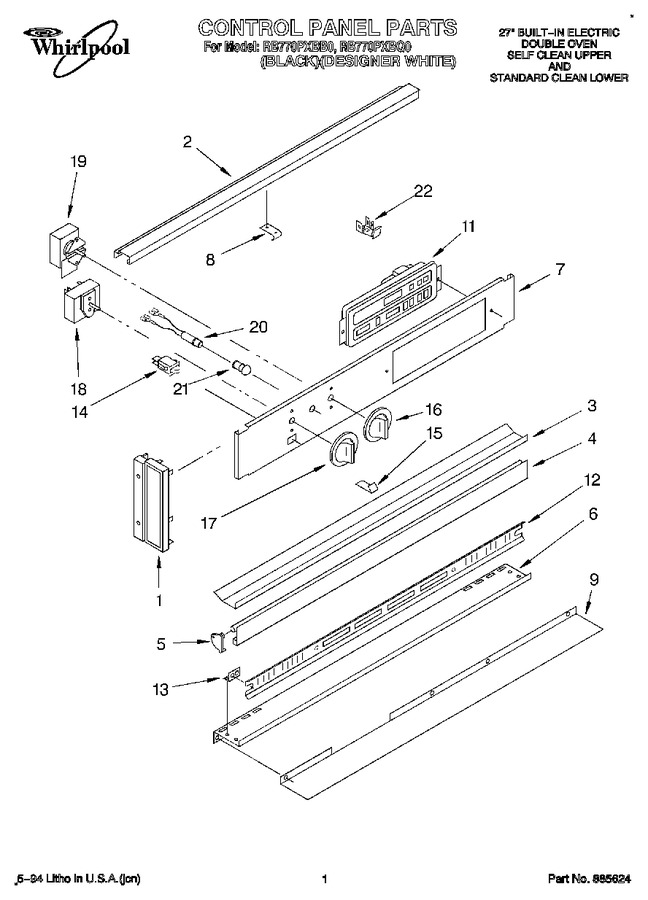

01 - Control Panel, Literature


02 - Upper Oven


03 - Lower Oven


04 - Upper Oven Door


05 - Lower Oven Door


06 - Component Shelf And Latch


07 - Unit


08 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3188126		End Cap (white Model, Rh)		Appelez-nous	-
1	3188124		End Cap (black Model, Rh)		Appelez-nous	-
1	3188123		End Cap (black Model, Lh)		Appelez-nous	-
1	3188125		End Cap (white Model, Lh)		Appelez-nous	-
2	3187971		Trim, Top (black Model)		Appelez-nous	-
2	3187969		Trim, Top (white Model)		Appelez-nous	-
2	3185648		Trim, Top (screw)		Appelez-nous	-
3	3183573		Trim, Center (black Model)		Appelez-nous	-
3	3187962		Trim, Center (white Model)		Appelez-nous	-
4	3187981		Door, Vent (white Model)		Appelez-nous	-
4	3183501		Door, Vent (black Model)		Appelez-nous	-
5	3148698		End Trim (vent Door) (black Model, R.h.)		Appelez-nous	-
5	3148697		End Trim (vent Door) (black Model, L.h.)		Appelez-nous	-
5	3148472		End Trim (vent Door) (white Model, R.h.)		Appelez-nous	-
5	3148471		End Trim, Vent Door (white Model, L.h.)		Appelez-nous	-
6	3188153		Trim, Bottom (white Model)		Appelez-nous	-
6	342043		Trim, Bottom (screw)		Appelez-nous	-
6	3184408		Trim, Bottom (black Model)		Appelez-nous	-
7	3184650		Control Panel (black Model)		Appelez-nous	-
7	3184651		Control Panel (white Model)		Appelez-nous	-
8	3183492		Stiffener, Bracket		Appelez-nous	-
8	3149333		Screw				$ 5.33
9	3184588		Trim, Vent Upper (white Model)		Appelez-nous	-
9	3184589		Trim, Vent Upper (black Model)		Appelez-nous	-
9	3185647		Trim, Vent Upper (screw (4))		Appelez-nous	-
11	3169256		Electronic Timer (black Model)		Appelez-nous	-
11	3169257		Electronic Timer (white Model)		Appelez-nous	-
12	3179916		Insert, Vent		Appelez-nous	-
12	3185647		Screw		Appelez-nous	-
13	3185648		Screw		Appelez-nous	-
13	3181279		Bracket, Vent Insert		Appelez-nous	-
14	3182718		Switch, Rocker (white Model)		Appelez-nous	-
14	3182717		Switch, Rocker (black Model)		Appelez-nous	-
15	3183493		Stiffener Bracket		Appelez-nous	-
15	3149333		Screw				$ 5.33
16	3183107		Knob, Thermostat (white Model)		Appelez-nous	-
16	3183106		Knob, Thermostat (black Model)		Appelez-nous	-
17	3183109		Knob Selector (black Model)		Appelez-nous	-
17	3183110		Knob Selector (white Model)		Appelez-nous	-
18	155023		Screw (2)			Immediately	$ 7.91
18	3183583		Switch, Selector		Appelez-nous	-
19	3178002		Screw (2)		Appelez-nous	-
19	3169303		Thermostat		Appelez-nous	-
20	314031		Light, Indicator				$ 62.88
21	309133		Screw (4)		Appelez-nous	-
21	313101		Lens, Light		Appelez-nous	-
22	W10113937		Clip   (Replaces: 357572)				$ 9.75
	LIT3186642		Tech Sheet		Appelez-nous	-
	LIT3188184		Use & Care Guide		Appelez-nous	-
	LIT3183636		Installation Instructions		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
