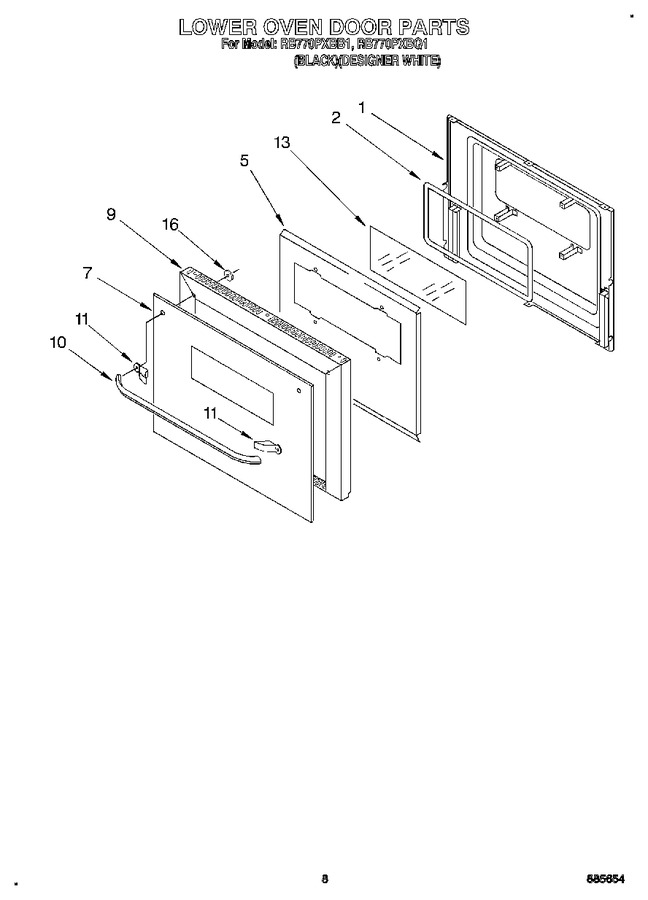

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3185498		Liner, Door		Appelez-nous	-
1	3178001		Screw (2)		Appelez-nous	-
2	3185462		Gasket, Window		Appelez-nous	-
5	3188815		Retainer, Insulation		Appelez-nous	-
5	4168863		Screw		Appelez-nous	-
7	3187870		Glass, Door (white Model)		Appelez-nous	-
7	3187868		Glass, Door (black Model)		Appelez-nous	-
9	3187850		Frame, Door (black Model)		Appelez-nous	-
9	3187852		Frame, Door (white Model)		Appelez-nous	-
10	3187946		Handle, Door (black Model)		Appelez-nous	-
10	3187944		Handle, Door (white Model)		Appelez-nous	-
10	WP355515		Handle, Door (screw (2))   (Replaces: 355515)				$ 6.90
10	4168863		Handle, Door (screw)		Appelez-nous	-
10	4173601		Handle, Door (screw)		Appelez-nous	-
11	814281		Spacer (whiet Model)		Appelez-nous	-
11	814282		Spacer (black Model)		Appelez-nous	-
13	3185457		Glass, Clear		Appelez-nous	-
16	3188599		Bushing		Appelez-nous	-
16	3184042		Screw		Appelez-nous	-
