SELECT A DIAGRAM

01 - Control Panel, Lit/optional


02 - Upper Oven


03 - Lower Oven


04 - Upper Oven Door


05 - Lower Oven Door


06 - Component Shelf And Latch


07 - Unit


08 - Wiring Harness

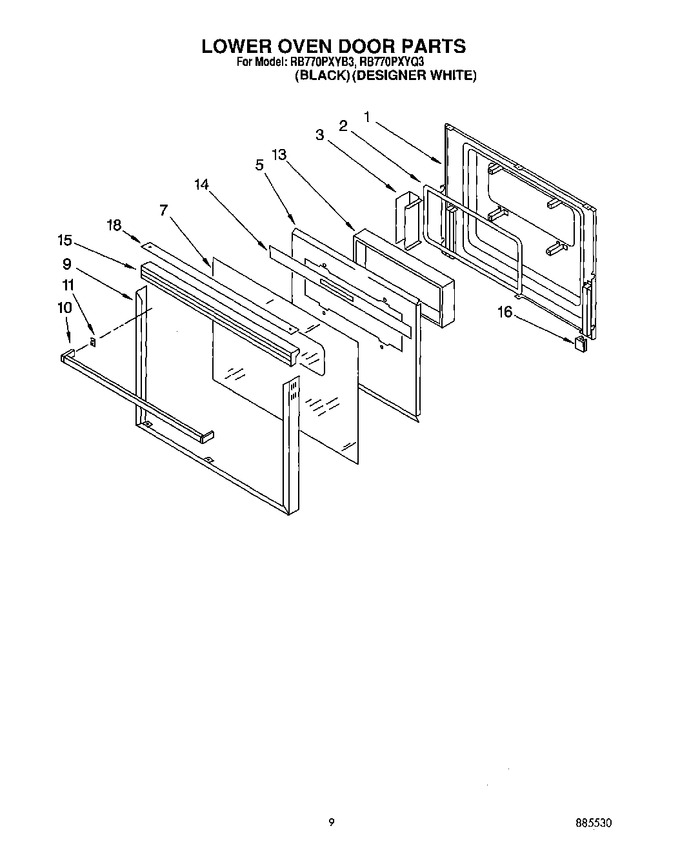

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3177600		Liner, Door		Appelez-nous	-
1	4170323		Screw		Appelez-nous	-
1	3178001		Screw (2)		Appelez-nous	-
2	3178584		Gasket, Window		Appelez-nous	-
3	3179693		Spacer, Window		Appelez-nous	-
5	3177718		Insulation, Retainer		Appelez-nous	-
5	3148443		Screw		Appelez-nous	-
7	3179500		Glass, Door (white Model)		Appelez-nous	-
7	3179498		Glass, Door (black Model)		Appelez-nous	-
9	3180607		Frame, Door		Appelez-nous	-
10	3179481		Handle, Door (black Model)		Appelez-nous	-
10	3179483		Handle, Door (white Model)		Appelez-nous	-
10	WP355515		Handle, Door (screw (2))   (Replaces: 355515)				$ 6.90
11	3148282		Clip, Mounting				$ 8.69
13	4164235		Window Package		Appelez-nous	-
14	3181348		Shield, Door		Appelez-nous	-
15	3179476		Trim, Door (black Model)		Appelez-nous	-
15	3179478		Trim, Door (white Model)		Appelez-nous	-
16	3181701		Bumper, Door Glass		Appelez-nous	-
18	3181364		Cap, Top (white Model Only)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
