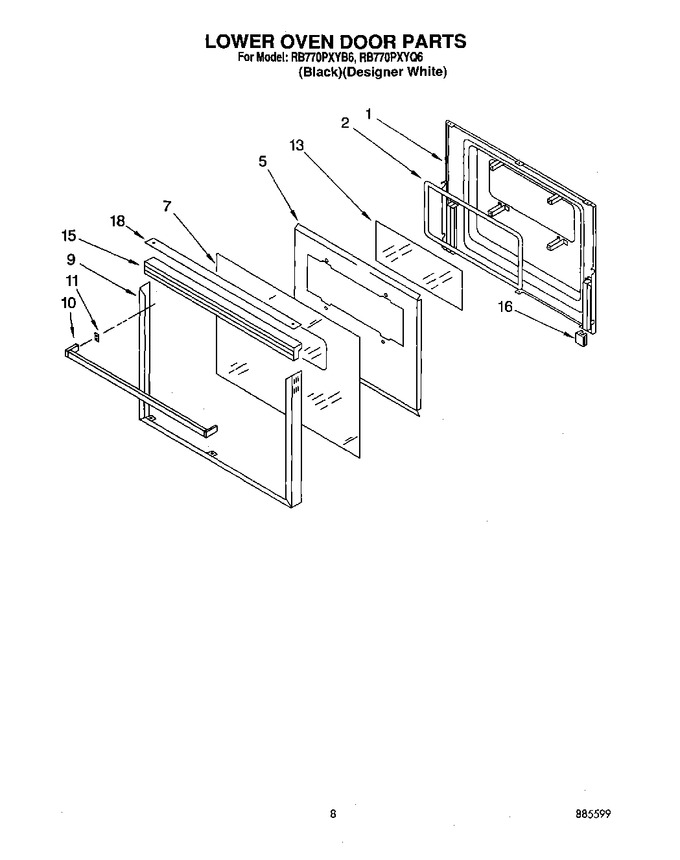

SELECT A DIAGRAM

01 - Control Panel, Literature


02 - Upper Oven


03 - Lower Oven


04 - Upper Oven Door


05 - Lower Oven Door


06 - Component Shelf And Latch


07 - Unit


08 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3185498		Liner, Door		Appelez-nous	-
1	3178001		Screw (2)		Appelez-nous	-
2	3185462		Gasket, Window		Appelez-nous	-
5	3185437		Retainer, Insulation		Appelez-nous	-
5	4173601		Screw		Appelez-nous	-
7	3179500		Glass, Door (white Model)		Appelez-nous	-
7	3179498		Glass, Door (black Model)		Appelez-nous	-
9	3180607		Frame, Door		Appelez-nous	-
10	3179483		Handle, Door (white Model)		Appelez-nous	-
10	3179481		Handle, Door (black Model)		Appelez-nous	-
10	WP355515		Handle, Door (screw (2))   (Replaces: 355515)				$ 6.90
10	4168863		Handle, Door (screw)		Appelez-nous	-
10	4173601		Handle, Door (screw)		Appelez-nous	-
11	3148282		Clip, Mounting				$ 8.69
13	3185457		Glass, Clear		Appelez-nous	-
15	3185527		Trim, Door (white Model)		Appelez-nous	-
15	3185525		Trim, Door (black Model)		Appelez-nous	-
16	3181701		Bumper, Door Glass		Appelez-nous	-
18	3181364		Cap, Top (white Model Only)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
