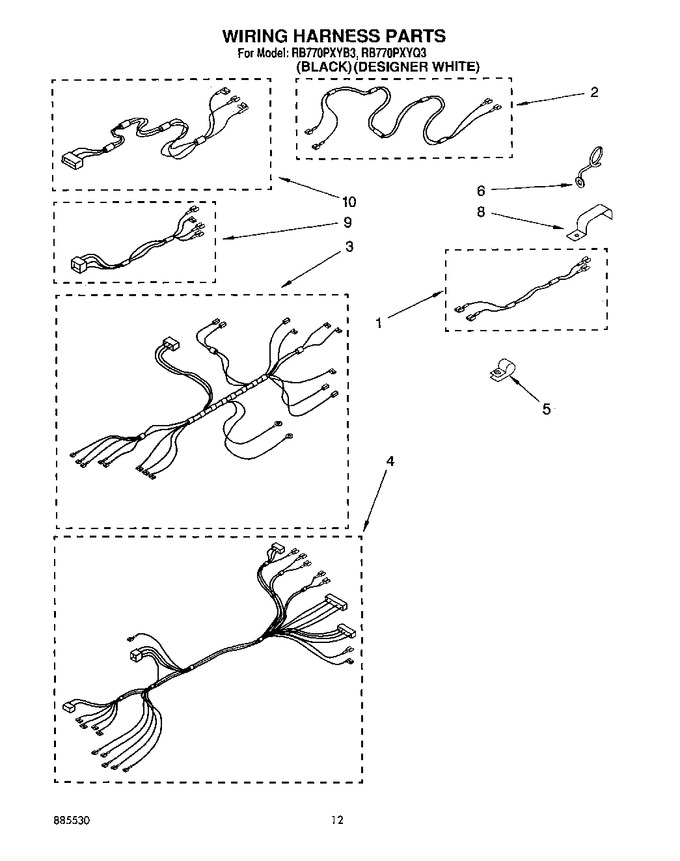

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3184705		Harness Wire (door Switch Upper)		Appelez-nous	-
2	3183656		Harness Wire (door Switch Lower)		Appelez-nous	-
3	3184715		Harness Wire (lower Oven)		Appelez-nous	-
4	3184706		Harness Wire (upper Oven)		Appelez-nous	-
5	3184792		Clamp (3/4 I.d.)		Appelez-nous	-
5	WP488729		Clamp (screw)   (Replaces: 3148107)			Immediately	$ 7.01
5	WP308605		Clamp (3/8 I.d.)   (Replaces: 3184791)				$ 10.08
6	3148443		Screw		Appelez-nous	-
6	3179668		Standoff, Wire		Appelez-nous	-
8	7111P002-60		Clamp, Wire   (Replaces: 4159037)		Appelez-nous	-
9	3184691		Wiring Harness (latch Assembly)		Appelez-nous	-
9	WP112432		Nut, Hex (3)   (Replaces: 112432)				$ 7.16
10	3184692		Wiring, Harness (latch Assembly Lower)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
