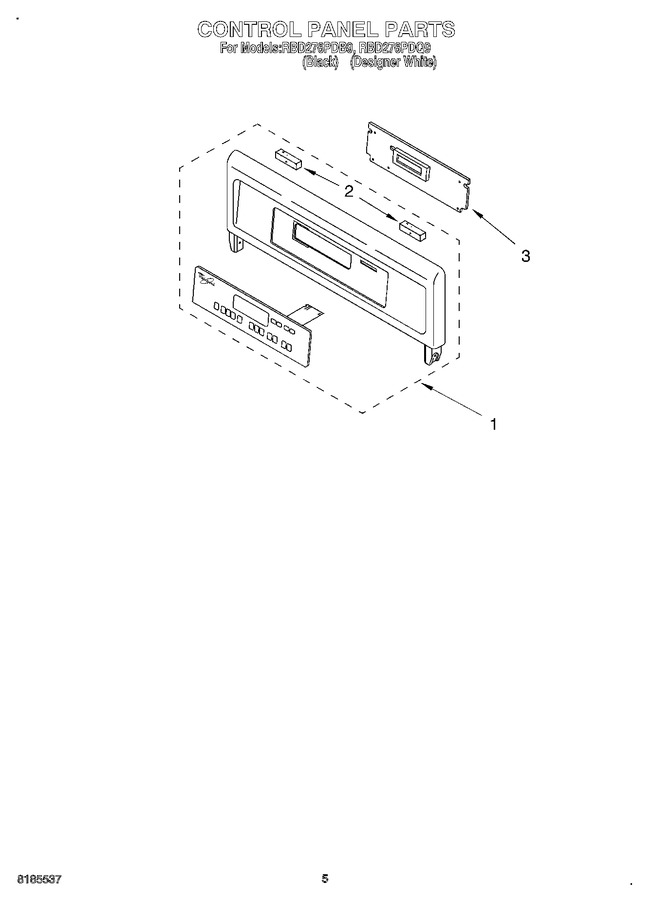

04 - Control Panel
05 - Top Venting, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | KP1308A2 | Control Panel Assy. W/membrane Switch (black Model) (Replaces: 8300431) |
|
$ 140.36 | |||||
| 1 | KP1308A2 | Control Panel Assy. W/membrane Switch (white Model) (Replaces: 8300432) |
|
$ 140.36 | |||||
| 1 | WP3400832 | Control Panel Assy. W/membrane Switch (screw) (Replaces: 8281179) |
|
Immediately | $ 6.98 | ||||
| 2 | 4451033 | Gasket, Control Panel |
|
- | |||||
| 3 | 4451991 | Microcomputer |
|
- | |||||
| 3 | WP4449745 | Screw (Replaces: 4449745) |
|
$ 6.74 | |||||
| 3 | 4449899 | Screw |
|
- |
