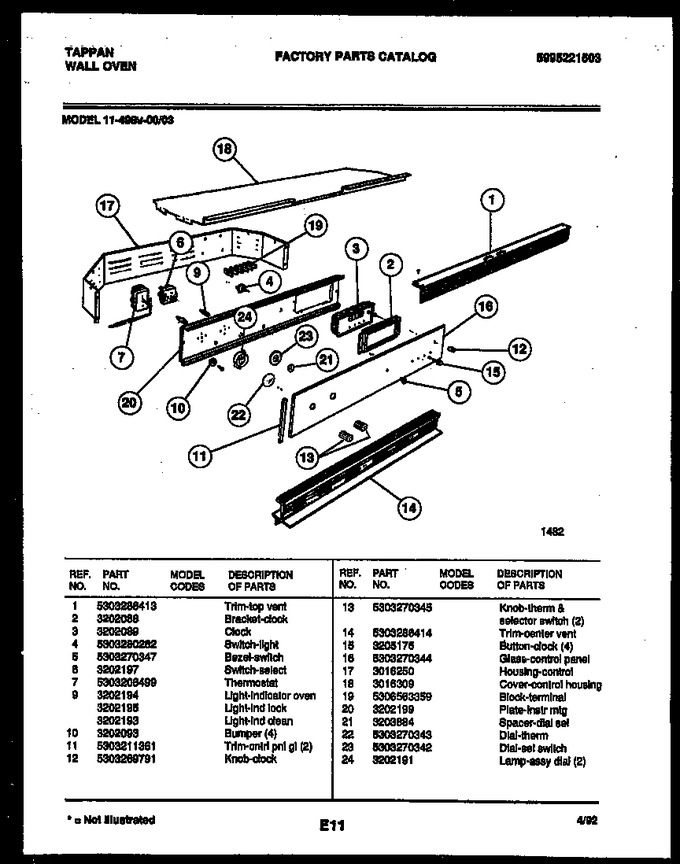

02 - Control Panel
03 - Door Parts
04 - Body Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303286413 | Trim-top Vent |
|
- | |||||
| 2 | 3202088 | Bracket-clock |
|
- | |||||
| 3 | 3202089 | Clock |
|
- | |||||
| 4 | 5303280262 | Switch-light |
|
- | |||||
| 5 | 5303270347 | Bezel, Switch |
|
- | |||||
| 6 | 3202197 | Switch-select |
|
- | |||||
| 7 | 5303206499 | Thermostat |
|
- | |||||
| 9 | 3202194 | Light, Indicator, Oven |
|
- | |||||
| 10 | 3202093 | Bumper (4) |
|
- | |||||
| 11 | 5303211361 | Trim-cntrl Pnl Gl (2) |
|
- | |||||
| 12 | 5303269791 | Knob, Clock |
|
- | |||||
| 13 | 5303270345 | Knob-therm & Selector Switch (2) |
|
- | |||||
| 14 | 5303286414 | Trim-center Vent |
|
- | |||||
| 15 | 3205175 | Button, Clock (4) |
|
- | |||||
| 16 | 5303270344 | Glass-control Panel |
|
- | |||||
| 17 | 3016250 | Housing, Control |
|
- | |||||
| 18 | 3016309 | Cover-control Housing |
|
- | |||||
| 19 | 5304409888 | Block, Terminal (Replaces: 5306563359) |
|
Immediately | $ 26.69 | ||||
| 20 | 3202199 | Plate-instr Mtg |
|
- | |||||
| 21 | 3203884 | Spacer - Dial Sel |
|
- | |||||
| 22 | 5303270343 | Dial-therm |
|
- | |||||
| 23 | 5303270342 | Dial-sel Switch |
|
- | |||||
| 24 | 3202191 | Lamp - Assy Dial (2) |
|
- | |||||
| 9A | 3202195 | Light-ind Lock |
|
- | |||||
| 9B | 3202193 | Light-ind Clean |
|
- |
