SELECT A DIAGRAM

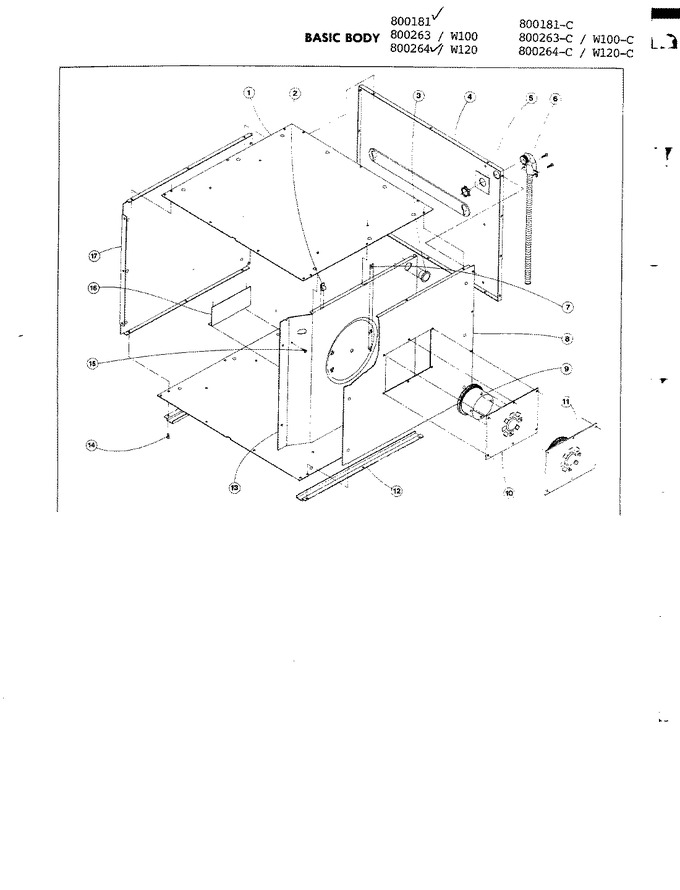

01 - Body


02 - Control Panel


03 - Door Assembly


04 - Front Closure Assembly


05 - Motor Assembly


06 - Oven Liner Assembly


07 - Thermal Bulb Clip


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	700589		Top Bottom Panel		Appelez-nous	-
2	715846		Tinnerman		Appelez-nous	-
3	708939		Bushing		Appelez-nous	-
4	700590		Rear Panel		Appelez-nous	-
5	700591		Back-up Plate		Appelez-nous	-
6	700706		Wire Cable		Appelez-nous	-
7	Y700556		Clip, J		Appelez-nous	-
8	700593		Side Panel Right		Appelez-nous	-
9	700594		Motor Cover Assembly		Appelez-nous	-
10	700595		Motor Access Assembly		Appelez-nous	-
11	700881		Access-motor Cover Weld Assy.		Appelez-nous	-
12	700596		Rail, Bottom		Appelez-nous	-
13	700597		Divide Rail		Appelez-nous	-
14	WP12990527		Screw   (Replaces: Y708955)			Immediately	$ 7.15
15	WP179051		Screw   (Replaces: 708764)			Immediately	$ 7.16
16	700598		Support Angle		Appelez-nous	-
17	700599		Side Panel		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
